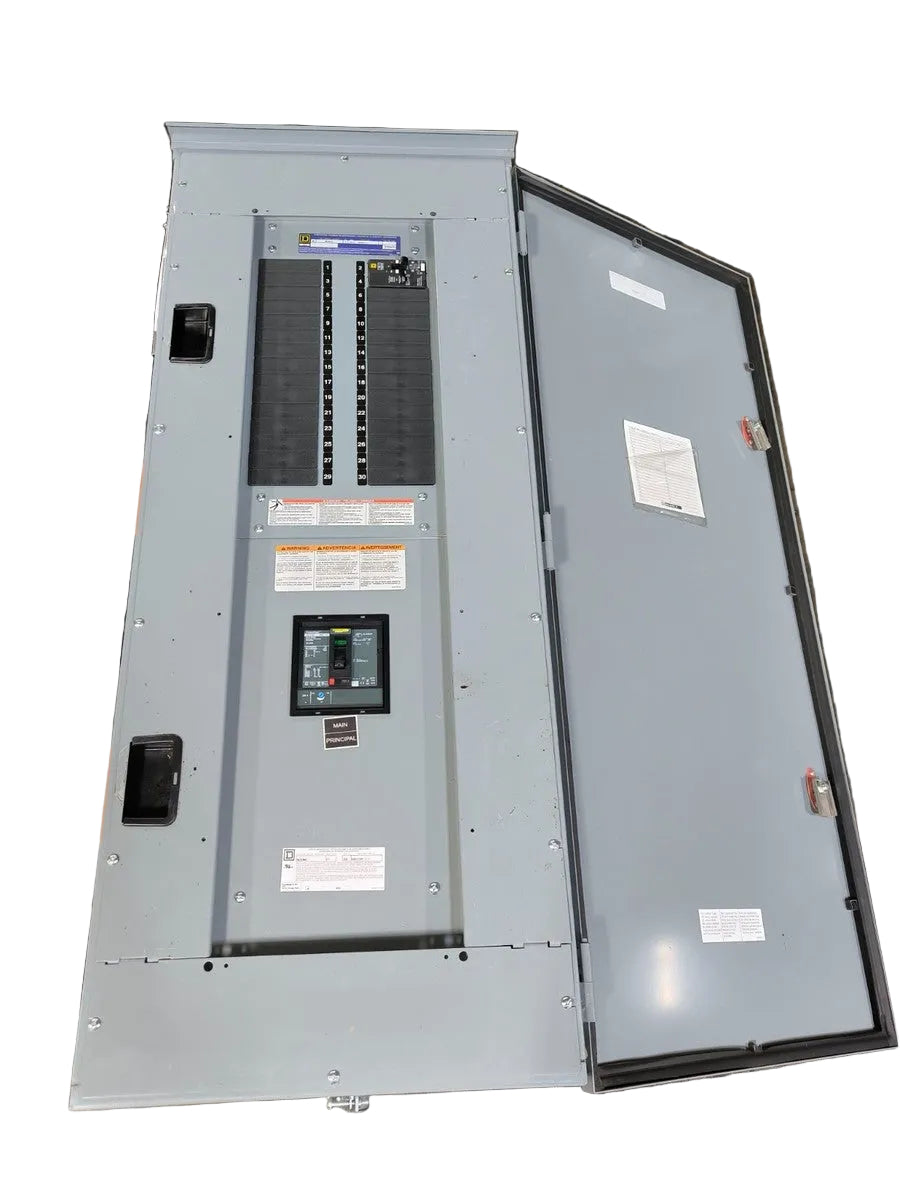

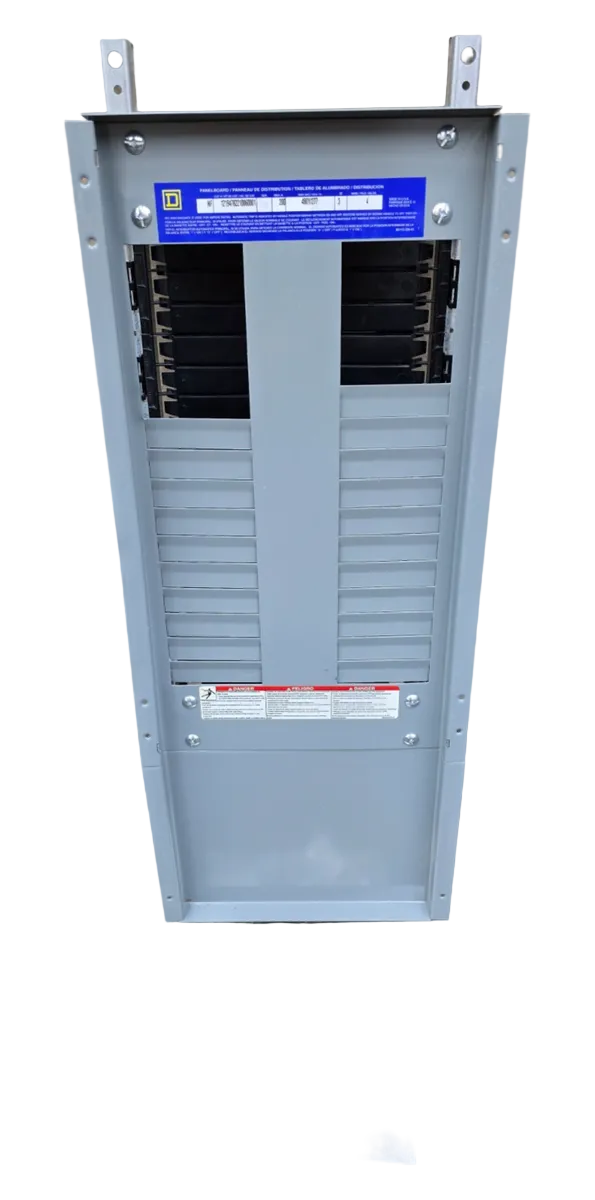

Square D NF430L2C Panelboard Interior
- Regular price
- $2,569.00
- Sale price
- $2,569.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NF430L2C
Description
The Square D NF430L2C panelboard interior is a 3-phase power distribution assembly designed for commercial and industrial electrical systems requiring reliable branch circuit distribution. It features a 250 A main lug configuration with a copper bus assembly and aluminum neutral assembly for use in 4-wire systems rated up to 600Y/347 VAC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Electrical Distribution |
| Part Number | NF430L2C |
| Subcategory | Panelboard Interiors |
| Manufacturer | Schneider Electric |
| Series | NF Series |
| Type | 3-Phase Type NF Bottom |
| Amperage Rating | 250 A |
| Voltage Rating | 480Y/277 VAC to 600Y/347 VAC |
| Wiring Configuration | 4-Wire |
| Number of Spaces | 30 |
| Bus Material | Copper |
| Neutral Assembly Material | Aluminum |
| Breaker Type | EDB/LAL/LHL |
| Short Circuit Current Rating | 100 kA |
| Mounting Type | Panel Mount |
| Enclosure Type | NEMA 1/3R/5/12 |
| Dimensions | 10-7/16 in W x 5-3/4 in D x 33 in H |
| Weight | 42 lb |
Information About NF430L2C
The NF430L2C is a panelboard interior manufactured by Square D, a Schneider Electric brand, for use in high-capacity electrical distribution systems. This NF Series unit is designed with 30 pole spaces and a copper bus structure to support stable power distribution in 3-phase, 4-wire commercial and industrial applications. The panelboard interior accommodates EDB, LAL, and LHL breaker types and is rated for systems operating from 480Y/277 VAC up to 600Y/347 VAC. Its robust construction, 100 kA short circuit current rating, and compatibility with multiple NEMA enclosure types make it suitable for demanding power distribution environments.
Key Features:
- 250 Amp Main Lug Rating: Supports high-capacity electrical distribution applications.
- Copper Bus Construction: Provides efficient conductivity and dependable current distribution.
- 30 Pole Spaces: Allows expanded branch circuit installation capability.
- 3-Phase 4-Wire Configuration: Designed for commercial and industrial power systems.
- 600Y/347 VAC Maximum Rating: Supports high-voltage distribution requirements.
- 100 kA SCCR: Engineered for high short-circuit withstand capability.
- Multiple Breaker Compatibility: Supports EDB, LAL, and LHL breaker types.
- NF Series Design: Built for integration with Square D NF panelboard systems.
The NF430L2C delivers the reliability and precision required for commercial and industrial power distribution and branch circuit management applications.
