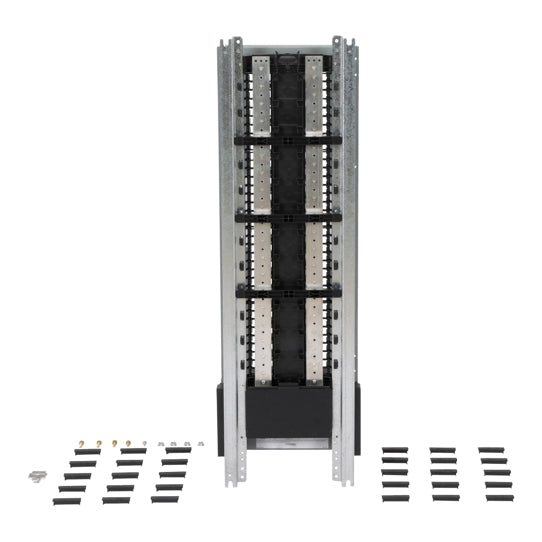

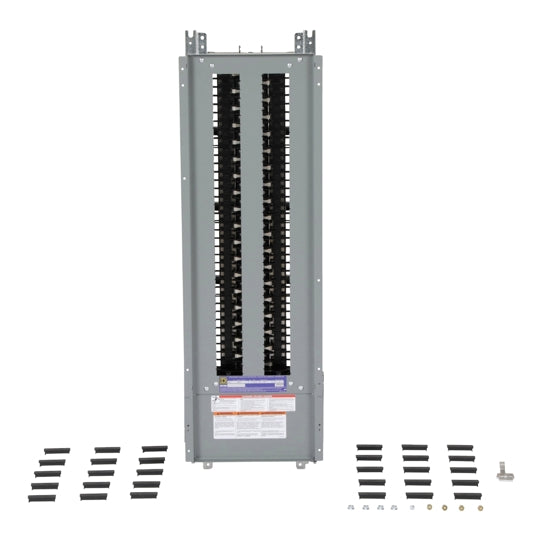

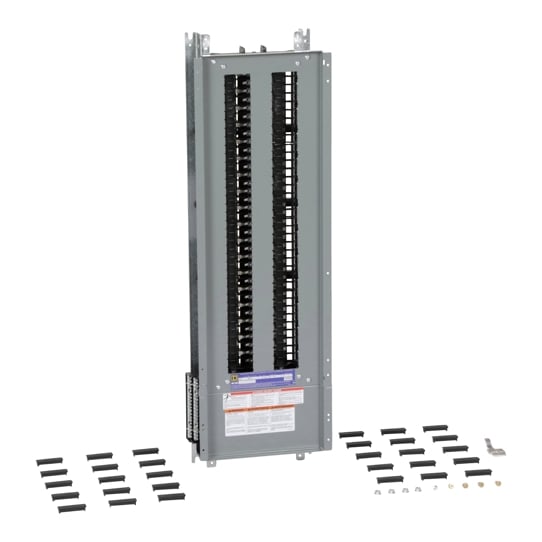

Square D NQ72L2C Main Lug Panelboard Interior
- Regular price
- $4,997.00
- Sale price
- $4,997.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NQ72L2C
Description
The Square D NQ72L2C panelboard interior is a main lug distribution assembly designed for single-phase electrical systems requiring high branch circuit capacity and dependable power distribution. It features a 225 A copper bus configuration with 72 pole spaces for use in 240 VAC and 48 VDC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Electrical Distribution |
| Part Number | NQ72L2C |
| Subcategory | Panelboard Interiors |
| Product Type | Main Lug Panelboard Interior |
| Series | NQ |
| Line Rated Current | 225 A |
| Voltage Rating | 240 VAC / 48 VDC |
| Number of Phases | 1 Phase |
| Wiring Configuration | 3-Wire |
| Number of Spaces | 72 |
| Busbar Material | Copper |
| Branch Circuit Breaker Type | QOB, QOB-VH, QHB |
| Interrupt Current Rating | 10 kA / 22 kA / 65 kA |
| Standards | UL, CSA |
| Enclosure Compatibility | NEMA 1, NEMA 3R, NEMA 12 |
| Height | 39 in |
| Width | 10.44 in |
| Weight | 24.87 lb |
Information About NQ72L2C
The NQ72L2C is a panelboard interior manufactured by Square D for high-density branch circuit distribution in single-phase electrical systems. This NQ series assembly is designed with a copper busbar structure and 72 pole spaces to accommodate extensive branch circuit requirements in commercial and industrial facilities. Engineered for 240 VAC and 48 VDC applications, the panelboard interior supports QOB, QOB-VH, and QHB branch circuit breakers for flexible installation configurations. Its UL and CSA compliance, multiple interrupt current ratings, and compatibility with NEMA 1, 3R, and 12 enclosures make it suitable for a wide range of indoor and protected outdoor distribution environments.
Key Features:
- 225 Amp Main Lug Rating: Supports high-capacity branch circuit distribution systems.
- 72 Pole Spaces: Provides expanded circuit installation capability for large applications.
- Copper Busbar Construction: Enhances conductivity and long-term electrical reliability.
- Single-Phase 3-Wire Configuration: Designed for commercial and industrial distribution systems.
- Multiple Breaker Compatibility: Supports QOB, QOB-VH, and QHB branch breakers.
- Dual Voltage Support: Rated for 240 VAC and 48 VDC applications.
- UL and CSA Approved: Meets recognized North American safety standards.
- Flexible Enclosure Compatibility: Suitable for NEMA 1, 3R, and 12 installations.
The NQ72L2C delivers the reliability and precision required for commercial branch circuit distribution and electrical panelboard applications.
