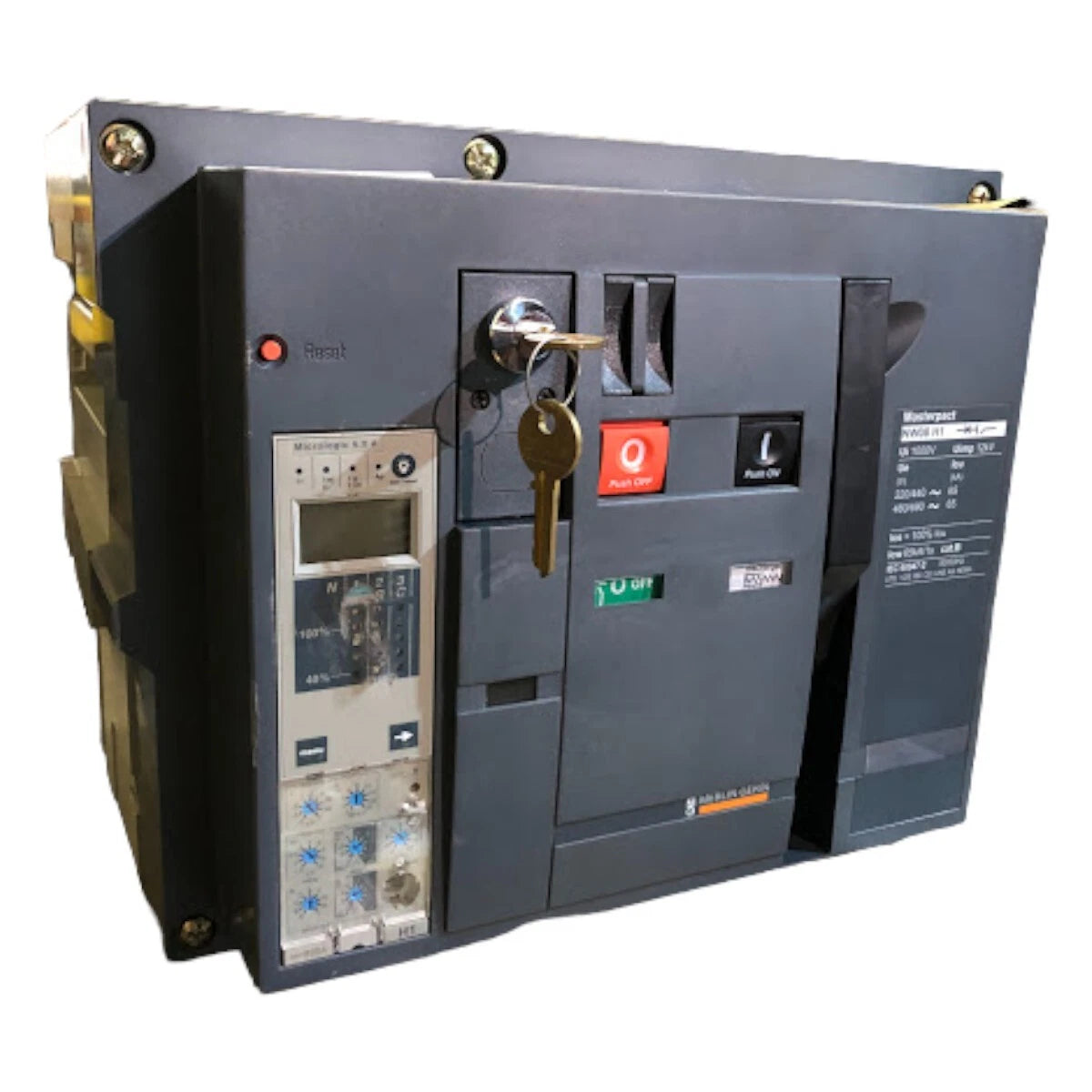

Square D NW08H1 MasterPact 800 Ampere Three-Pole Drawout Circuit Breaker Frame
- Regular price
- $6,232.00
- Sale price
- $6,232.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NW08H1
Description
The Square D NW08H1 is a Schneider Electric MasterPact NW circuit breaker frame designed for high-current power distribution protection in commercial and industrial electrical systems. This configuration is rated at 800 amperes, uses three poles and drawout mounting, and is supplied without a trip or control unit.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | NW08H1 |
| Subcategory | Power Monitoring System |
| Manufacturer | Schneider Electric |
| Product Family | MasterPact NW |
| Product Type | Circuit Breaker Basic Frame |
| Rated Current | 800 amperes at 40 degrees Celsius |
| Number of Poles | 3 |
| Mounting Configuration | Drawout |
| Rated Operational Voltage | 690 volts alternating current |
| Network Frequency | 50/60 hertz |
| Performance Level | H1 |
| Breaking Capacity | 65,000 amperes at 440 volts alternating current |
| Trip / Control Unit | Not Included |
| Application | Power Distribution Protection |
| Isolation Capability | Suitable for Isolation |
| Product Reference for Basic Frame | 48231 |
| Production Status | Discontinued by Manufacturer |
| Weight | 32.00 lbs |
Information About NW08H1
The NW08H1 is a Square D MasterPact NW circuit breaker designed as an 800-ampere basic frame for low-voltage power distribution equipment. Its drawout construction allows the breaker assembly to be withdrawn from its compatible chassis for inspection, servicing, or replacement while retaining the installed switchgear arrangement. The H1 performance designation provides a 65,000-ampere breaking capacity at 440 volts alternating current, while the breaker has a rated operational voltage of 690 volts alternating current at 50 or 60 hertz. This specific basic-frame configuration is supplied without a control unit, allowing the appropriate compatible MicroLogic protection unit to be selected separately for the application.
Key Features:
- 800-Ampere Rating: Provides an 800-ampere rated current at 40 degrees Celsius for high-current power distribution applications.
- Three-Pole Construction: Uses a three-pole configuration for three-phase alternating-current distribution systems.
- Drawout Design: Allows the circuit breaker to be withdrawn from its compatible chassis for maintenance and servicing.
- H1 Breaking Performance: Provides a 65,000-ampere breaking capacity at 440 volts alternating current.
- 690-Volt Operation: Rated for operation at up to 690 volts alternating current at 50 or 60 hertz.
- Separate Protection Unit: The basic frame is supplied without a control or trip unit, allowing a compatible MicroLogic unit to be selected separately.
- Isolation Capability: Suitable for electrical isolation in accordance with International Electrotechnical Commission 60947-2 requirements.
- Power Distribution Application: Designed for circuit switching and protection within high-capacity low-voltage distribution systems.
The NW08H1 delivers the reliability and precision required for high-current switching, isolation, and configurable circuit protection in industrial and commercial power distribution systems.
