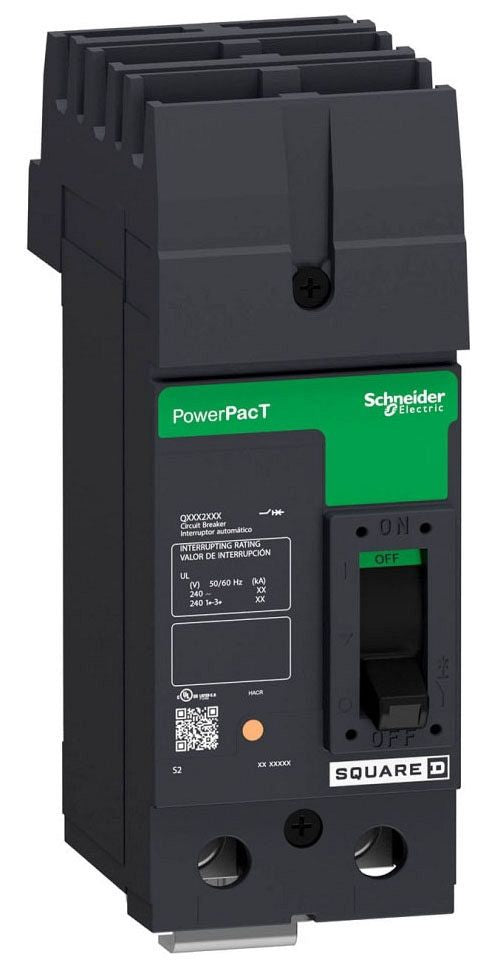

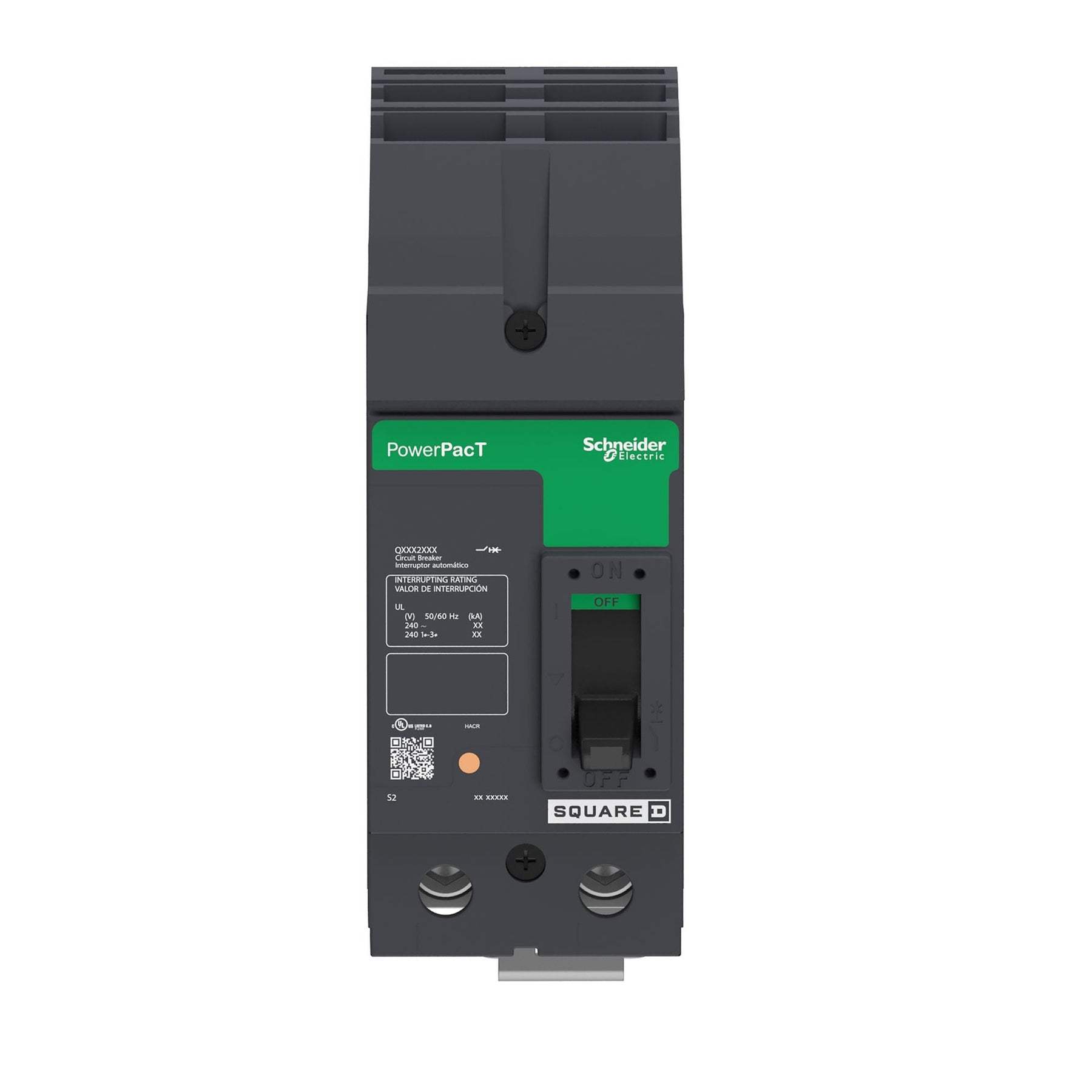

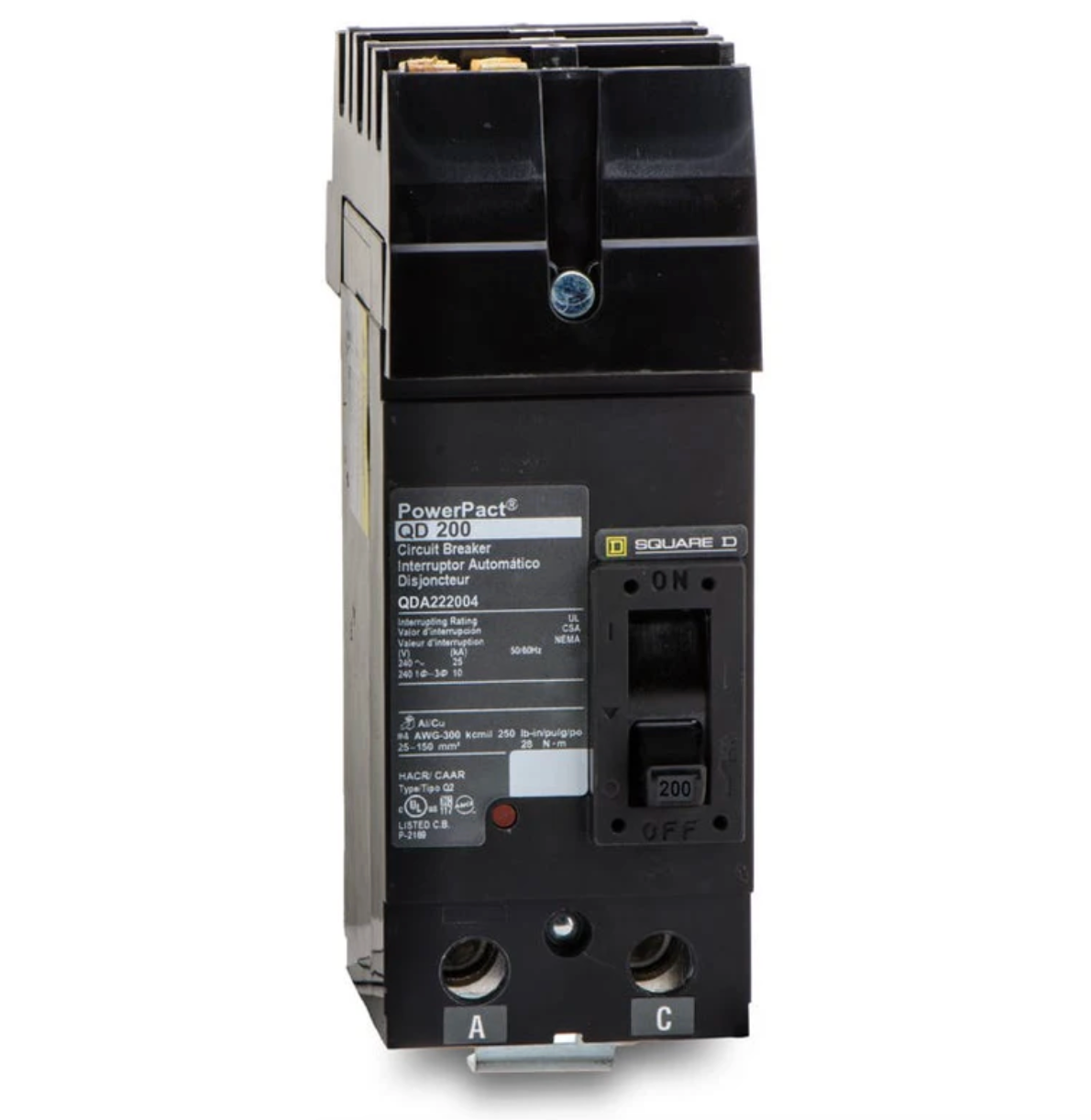

QDA222004 | Square D 2-Pole 200A 240VAC PowerPacT Q Molded Case Circuit Breaker
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QDA222004
Description
The Square D QDA222004 is a 2-pole molded case circuit breaker designed for overcurrent protection and switching in 240VAC electrical systems. Rated at 200 amps, this Square D QDA222004 breaker uses thermal magnetic protection to ensure dependable performance in commercial and industrial power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | QDA222004 |
| Subcategory | Molded Case |
| Series | PowerPacT Q |
| Frame Type | Q Frame |
| Breaker Type | Molded Case Circuit Breaker |
| Current Rating | 200 Amps |
| Voltage Rating | 240VAC |
| Poles | 2 |
| Phase | Single Phase |
| Interrupting Rating | 25kAIC at 240VAC |
| Trip Unit | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Mounting Type | I-Line Style Plug-In |
| Terminal Connection | Load Side Lug |
| Standards & Approvals | UL, CSA, NOM, IEC |
| Dimensions (HxWxD) | 3.93 x 3 x 6.47 in |
| Temperature Rating | 40 to 70 °C |
| Weight | 7.5 lb |
Information About QDA222004
The QDA222004 is part of the Square D PowerPacT Q-Frame series, engineered for reliable protection in compact panelboard and switchboard installations. It features an I-Line style plug-in connection on the line side with mechanical lugs on the load side, enabling secure and efficient installation. The breaker operates on single-phase 240VAC systems and incorporates LI (long-time and instantaneous) trip functions for accurate response to overloads and short circuits. Designed to meet UL, CSA, NOM, and IEC standards, it supports consistent operation across a wide range of electrical environments.
Key Features:
- PowerPacT Q-Frame Design: Provides robust molded case construction for long-term electrical reliability.
- 200 Amp Rating: Supports higher current loads in demanding power distribution systems.
- Thermal Magnetic Protection: Ensures precise response to both overload and short-circuit conditions.
- High Interrupting Capacity: Rated at 25kAIC at 240VAC for effective fault current interruption.
- I-Line Style Plug-In Mounting: Allows fast, secure installation and removal in compatible panels.
- LI Trip Functions: Combines long-time and instantaneous trip for balanced circuit protection.
- Integrated Push-to-Trip Button: Enables manual tripping for testing and maintenance purposes.
The QDA222004 delivers the reliability and precision required for overcurrent protection and switching in commercial and industrial electrical systems.
