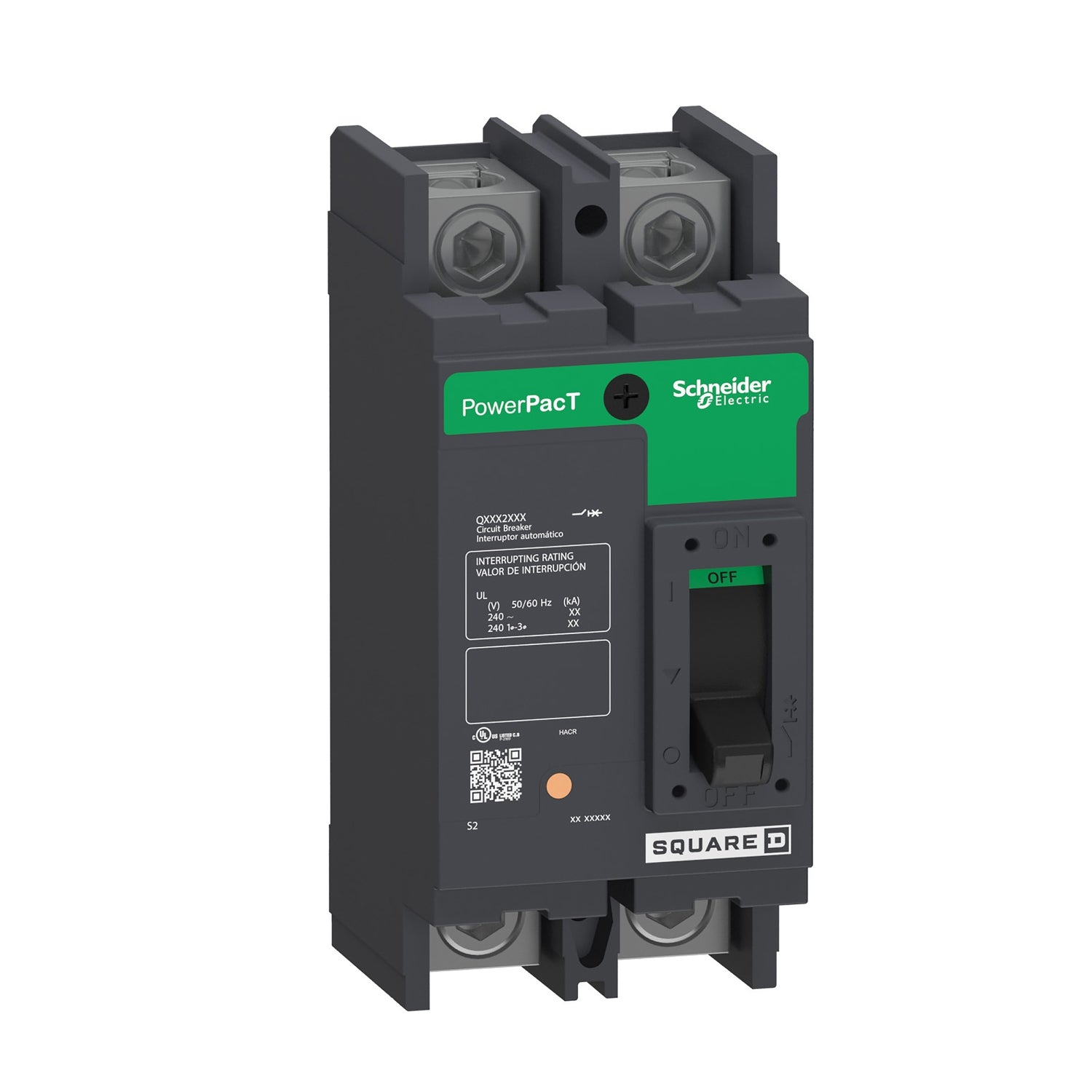

QDP22070TM | Square D 70A 2-Pole PowerPact Q Molded Case Circuit Breaker 120/240VAC Bolt-On
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QDP22070TM
Description
The Square D QDP22070TM is a 70A, 2-pole molded case circuit breaker designed to provide dependable overcurrent protection in 120/240VAC distribution systems. Its thermal-magnetic trip unit responds accurately to both sustained overloads and short-circuit events. Built for commercial and industrial branch circuits, this device offers stable performance where consistent fault protection is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | QDP22070TM |
| Subcategory | Molded Case |
| Series/Frame | PowerPact Q / QDP |
| Amperage Rating | 70A |
| Voltage Rating | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Interrupting Rating | 25 kAIC @ 240V |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long Time, Instantaneous |
| Terminal Connection | Load-side lug; line-side stud with nut and washer |
| For Use With | Meter centers, distribution panels, switchboard devices |
| Certifications | UL, CSA, IEC, RoHS |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Dimensions | 6.47 in H × 4.44 in W × 3.09 in D |
| Country of Origin | United States |
| Weight | 1.47 lb |
Information About QDP22070TM
The QDP22070TM is part of the PowerPact Q Series, engineered with a compact molded case frame suited for meter centers, distribution panels, and switchboard assemblies. It features a bolt-on connection style that ensures secure installation and compatibility with standard Q-Frame mounting hardware. The breaker uses a thermal-magnetic trip system that provides long-time and instantaneous response for balanced protection across varied load conditions. Designed to meet multiple global certifications, it supports reliable operation in demanding electrical environments.
Key Features:
- 70A Current Rating: Supports medium-capacity branch circuits requiring consistent overcurrent protection.
- Two-Pole Configuration: Provides simultaneous disconnection of both energized conductors in 120/240VAC applications.
- Thermal-Magnetic Trip: Combines long-time overload response with instantaneous short-circuit interruption.
- 25 kAIC Interrupt Rating: Handles high fault levels at 240V to support robust system protection.
- Bolt-On Mounting: Ensures rigid mechanical fastening for stable installation in panels and metering equipment.
- Versatile Terminal Design: Includes load-side lug and line-side stud hardware for flexible wiring options.
- Wide Compliance Range: Certified to UL, CSA, IEC, and RoHS standards for broad application suitability.
The QDP22070TM delivers the reliability and precision required for dependable molded case circuit protection in commercial and industrial distribution systems.
