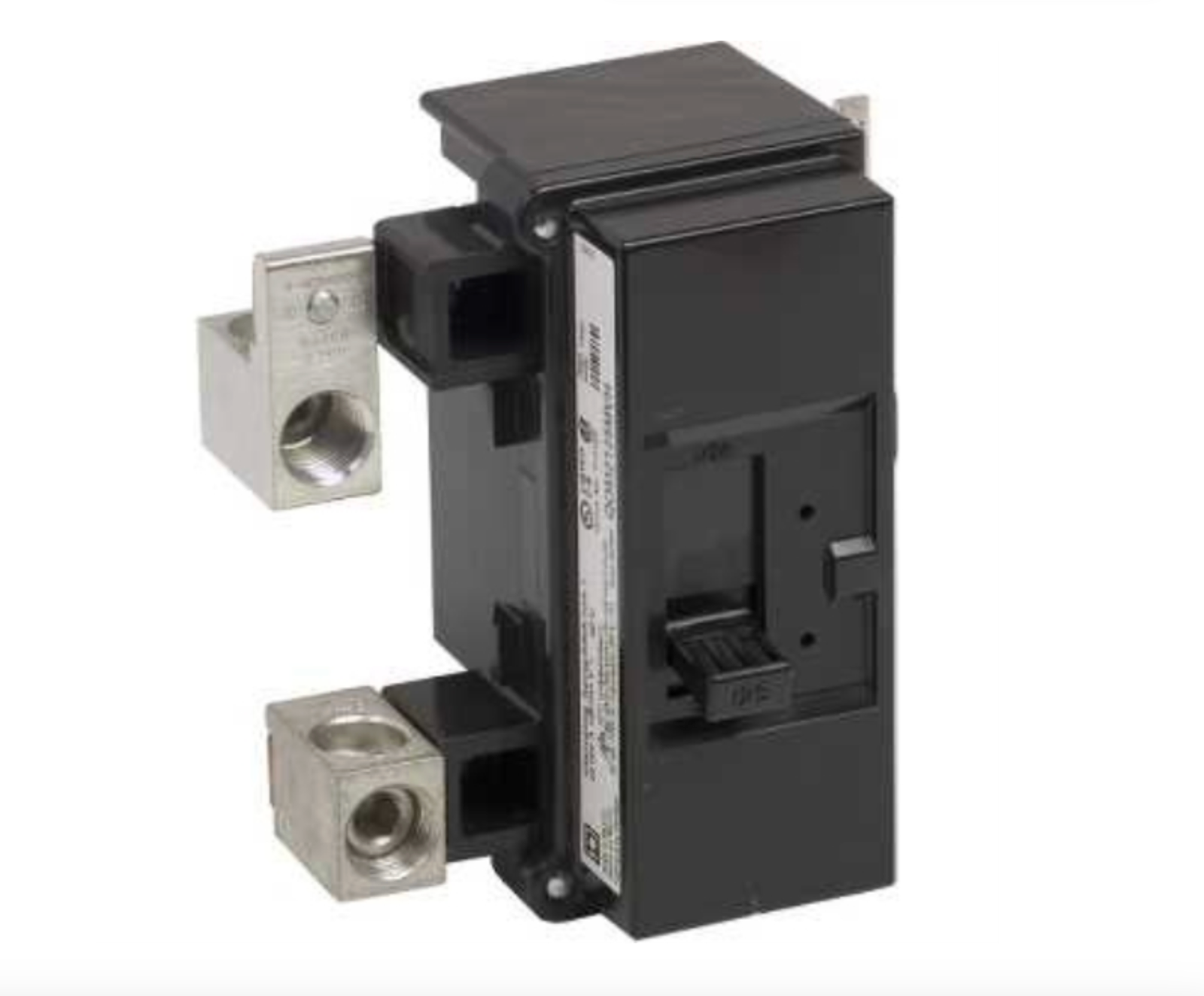

QOM2125MVH | Square D 125A 2-Pole 120/240V Molded Case Circuit Breaker
- Regular price
- $679.00
- Sale price
- $679.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QOM2125MVH
Description
The Square D QOM2125MVH is a molded case circuit breaker designed to provide reliable overcurrent protection for residential and light commercial electrical systems. The QOM2125MVH delivers stable performance with a 125 A rating and supports 120/240 VAC applications. Its bolt-on design makes it suitable for metering equipment requiring secure mechanical mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breakers |
| Part Number | QOM2125MVH |
| Subcategory | Molded Case Circuit Breakers |
| Series | QO |
| Amperage Rating | 125 A |
| Voltage Rating | 120/240 VAC |
| Poles | 2 |
| Phase | 1-Phase |
| Mounting Type | Bolt-On |
| Interrupting Rating | 22 kAIC at 120/240 VAC |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time, Instantaneous |
| Terminal Type | Lugs |
| Wire Gauge Range | AWG 4–300 kcmil Cu/Al |
| For Use With | Load Centers / Metering Devices |
| Standards Compliance | UL, CSA, RoHS |
| Temperature Rating | 40 °C |
| Frame Type | QOM |
| Weight | 1.36 kg |
Information About QOM2125MVH
The QOM2125MVH is part of the Square D QO series, known for durable construction and dependable circuit protection. It is engineered for use in load centers and metering devices that require a 2-pole thermal magnetic breaker. This model integrates long-time and instantaneous trip functions to support a broad range of protective requirements. The breaker also meets UL and CSA standards, ensuring compatibility with widely used electrical installations.
Key Features:
- 125A Current Rating: Supports medium-capacity circuits in residential and light-commercial installations.
- 120/240 VAC Operation: Suitable for standard single-phase electrical systems.
- Thermal Magnetic Protection: Combines overload and short-circuit protection in one unit.
- Bolt-On Mounting: Provides secure attachment for metering and panel applications.
- 22 kAIC Interrupt Rating: Ensures safe interruption of high-fault currents.
- 2-Pole Configuration: Enables simultaneous disconnection of both conductors.
- Wide Wire Compatibility: Accepts AWG 4 to 300 kcmil copper or aluminum conductors.
- UL & CSA Certified: Meets rigorous safety and performance compliance standards.
The QOM2125MVH delivers the reliability and precision required for dependable circuit protection in modern electrical systems.
