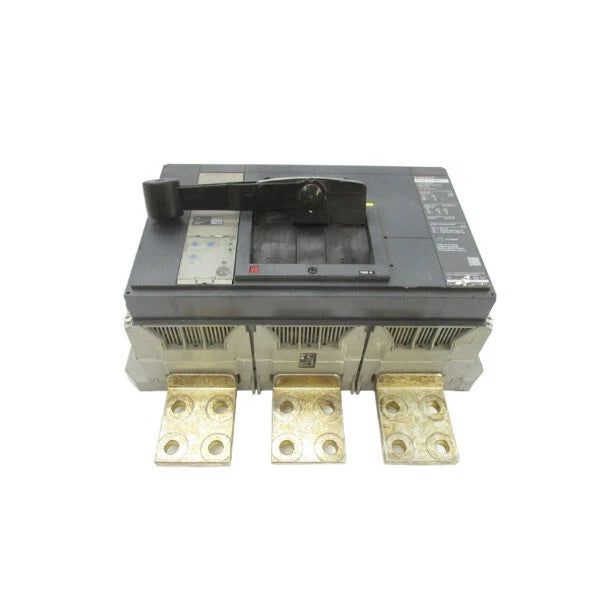

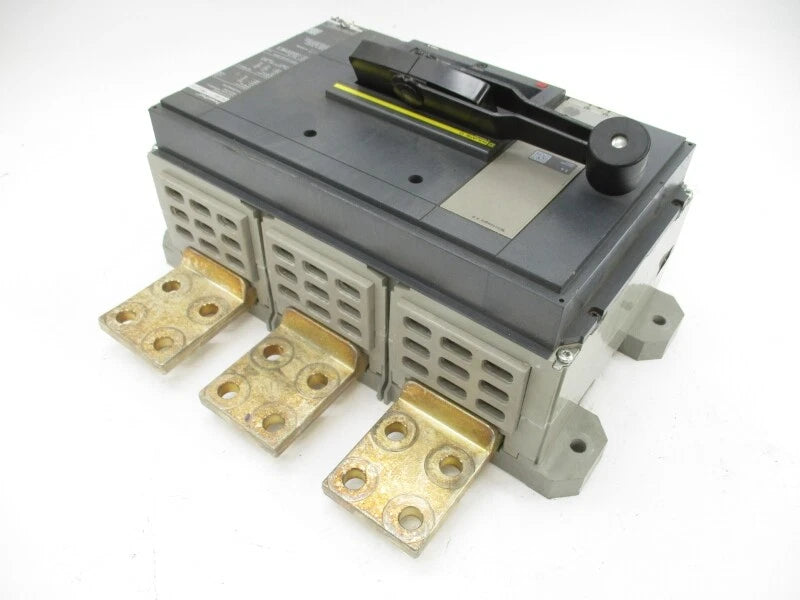

Square D RGF36160U31A PowerPact R-Frame 1600A 3-Pole Molded Case Circuit Breaker
- Regular price
- $24,999.00
- Sale price
- $24,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RGF36160U31A
Description
The Square D RGF36160U31A is a heavy-duty, R-frame molded case circuit breaker designed to provide critical overcurrent and short-circuit protection in commercial electrical distribution systems. This 1600-amp device utilizes advanced solid-state trip unit technology to continuously monitor electrical currents and safely interrupt power during fault conditions. By securing high-capacity electrical networks against damaging overloads, the breaker prevents catastrophic equipment failures and ensures operational continuity in industrial facilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D (Schneider Electric) |
| Category | Electrical Distribution |
| Part Number | RGF36160U31A |
| Subcategory | Circuit Breakers |
| Amperage Rating | 1600 A |
| Voltage Rating | 600 VAC |
| Number of Poles | 3 |
| Frame Type | R-Frame |
| Trip Unit Type | Micrologic 3.0 (Electronic LI) |
| Interrupting Rating | 35 kA at 480 VAC |
| Phase | 3-Phase |
| Connection Type | Unit Mount / Busbar |
| Weight | 74.0 lbs |
Information About RGF36160U31A
The RGF36160U31A is an integral component of the PowerPact R-frame series, constructed with a robust thermoset composite housing that safely contains high-energy arc flashes. It is equipped with a Micrologic 3.0 electronic trip unit, which provides precise, adjustable Long-Time and Instantaneous (LI) protection settings to match specific facility load profiles. Electrical engineers deploy this 3-pole unit within main switchboards and heavy distribution panels where high interrupting capacities up to 600 VAC are strictly mandated. The breaker features unit-mount connectivity, facilitating secure mechanical integration directly into large-scale electrical busbar infrastructure.
Key Features:
● High Amperage Capacity: Safely manages continuous electrical loads up to 1600 amps for large-scale industrial distribution and heavy machinery.
● Micrologic 3.0 Trip Unit: Integrates an advanced electronic sensor to provide highly accurate, solid-state overcurrent detection and processing.
● Adjustable LI Protection: Allows technicians to customize Long-Time and Instantaneous trip parameters to suit specific operational loads perfectly.
● G-Frame Interrupting Rating: Delivers a robust 35 kA interrupting capacity at 480 VAC to safely clear severe electrical faults instantly.
● R-Frame Construction: Utilizes a heavy-duty, high-dielectric strength housing to withstand significant mechanical and thermal stress during tripping.
● Three-Pole Configuration: Designed to distribute and protect three-phase alternating current power systems across commercial electrical grids.
● Front-Mounted Access: Ensures that trip settings, rating plugs, and status indicators remain easily accessible for routine maintenance and safety audits.
The RGF36160U31A delivers the reliability and precision required for secure power distribution and catastrophic fault prevention in heavy-duty commercial networks.
