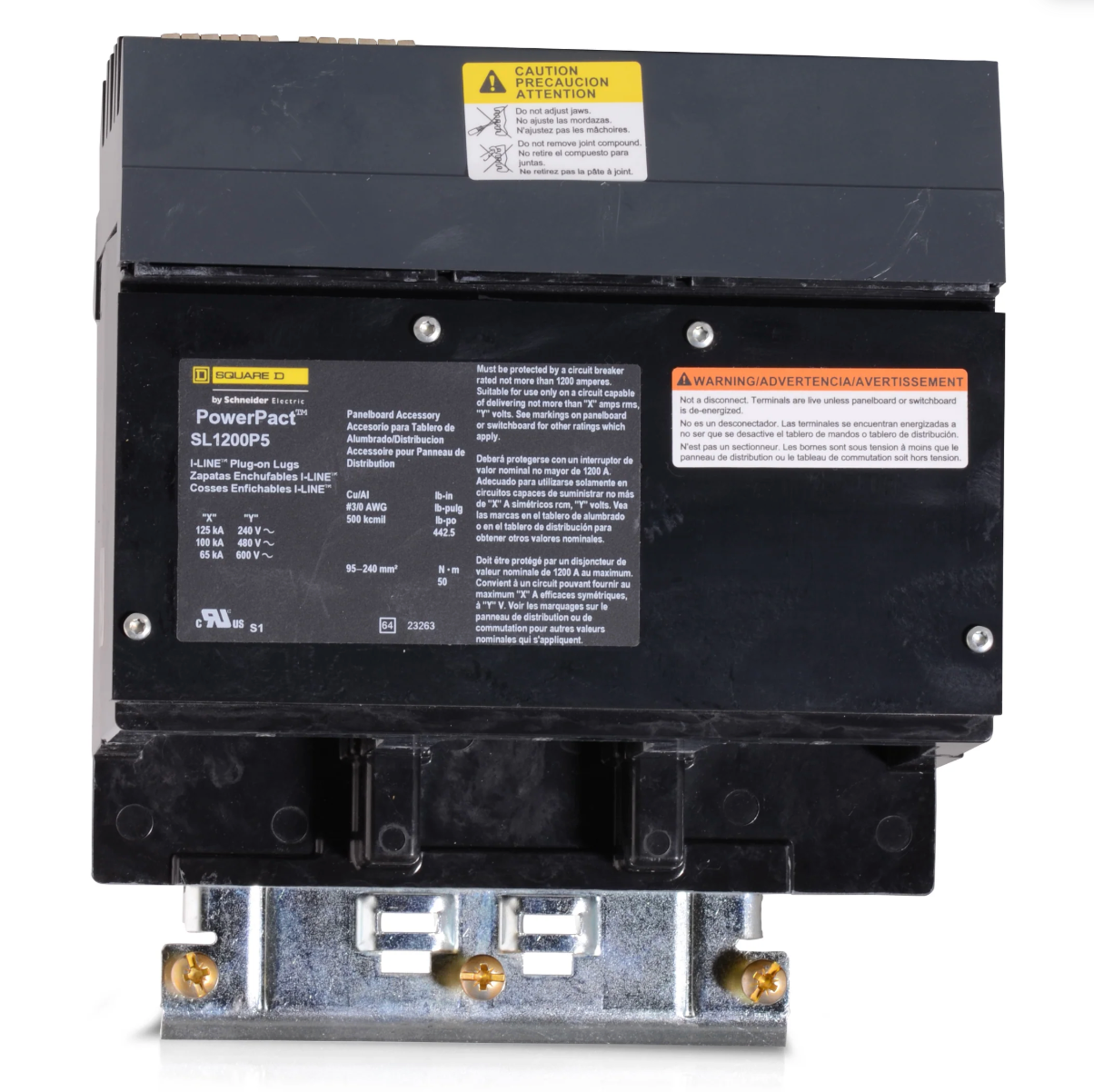

Square D SL1200P5 1200 Ampere Three-Pole I-Line Subfeed Lug Terminal Kit
- Regular price
- $1,885.00
- Sale price
- $1,885.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SL1200P5
Description
The Square D SL1200P5 is a Schneider Electric I-Line subfeed lug kit designed to provide a 1200-ampere cable connection point within compatible power distribution panelboards. Its three-pole, plug-on configuration accommodates four conductors per phase from 3/0 American Wire Gauge through 500 kcmil for high-current commercial and industrial distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | SL1200P5 |
| Subcategory | Lug Terminal Kit |
| Manufacturer | Schneider Electric |
| Product Family | I-Line |
| Product Type | Subfeed Lug Kit |
| Current Rating | 1200 amperes |
| Number of Poles | 3 |
| Connection Type | I-Line Plug-On |
| Conductor Quantity | 4 conductors per phase |
| Conductor Range | 3/0 American Wire Gauge through 500 kcmil |
| Conductor Material | Aluminum or Copper |
| Panelboard Compatibility | HCP, HCP-SU, and HCR-U I-Line Panelboards |
| Required Mounting Space | 9 inches |
| Country of Origin | United States |
| Weight | 13.40 lbs |
Information About SL1200P5
The SL1200P5 is a Square D I-Line panelboard accessory manufactured by Schneider Electric as a 1200-ampere subfeed lug assembly. It uses a three-pole plug-on arrangement and occupies nine inches of mounting space within supported I-Line interiors. The lug terminals accept four aluminum or copper conductors per phase ranging from 3/0 American Wire Gauge through 500 kcmil. It is intended for HCP, HCP-SU, and HCR-U I-Line panelboards and provides a direct means of connecting outgoing conductors to the panelboard bus structure.
Key Features:
- 1200-Ampere Rating: Provides a 1200-ampere subfeed connection for high-current I-Line power distribution applications.
- Three-Pole Configuration: Uses a three-pole arrangement for connection to compatible three-phase I-Line panelboard interiors.
- Four Conductors Per Phase: Accepts four conductors per phase for distributing the rated current through parallel cable connections.
- Broad Conductor Range: Each lug position accepts conductors from 3/0 American Wire Gauge through 500 kcmil.
- Aluminum and Copper Compatibility: Terminal data specifies compatibility with aluminum or copper power conductors.
- I-Line Plug-On Design: Connects directly to the I-Line bus structure and can function as a subfeed lug assembly for external power connections.
- Panelboard Compatibility: Designed for HCP, HCP-SU, and HCR-U I-Line interiors, subject to the panelboard configuration and application requirements.
- Nine-Inch Mounting Space: Requires nine inches of unit mounting space within the compatible I-Line panelboard interior.
The SL1200P5 delivers the reliability and precision required for high-current subfeed connections in compatible commercial and industrial I-Line power distribution systems.
