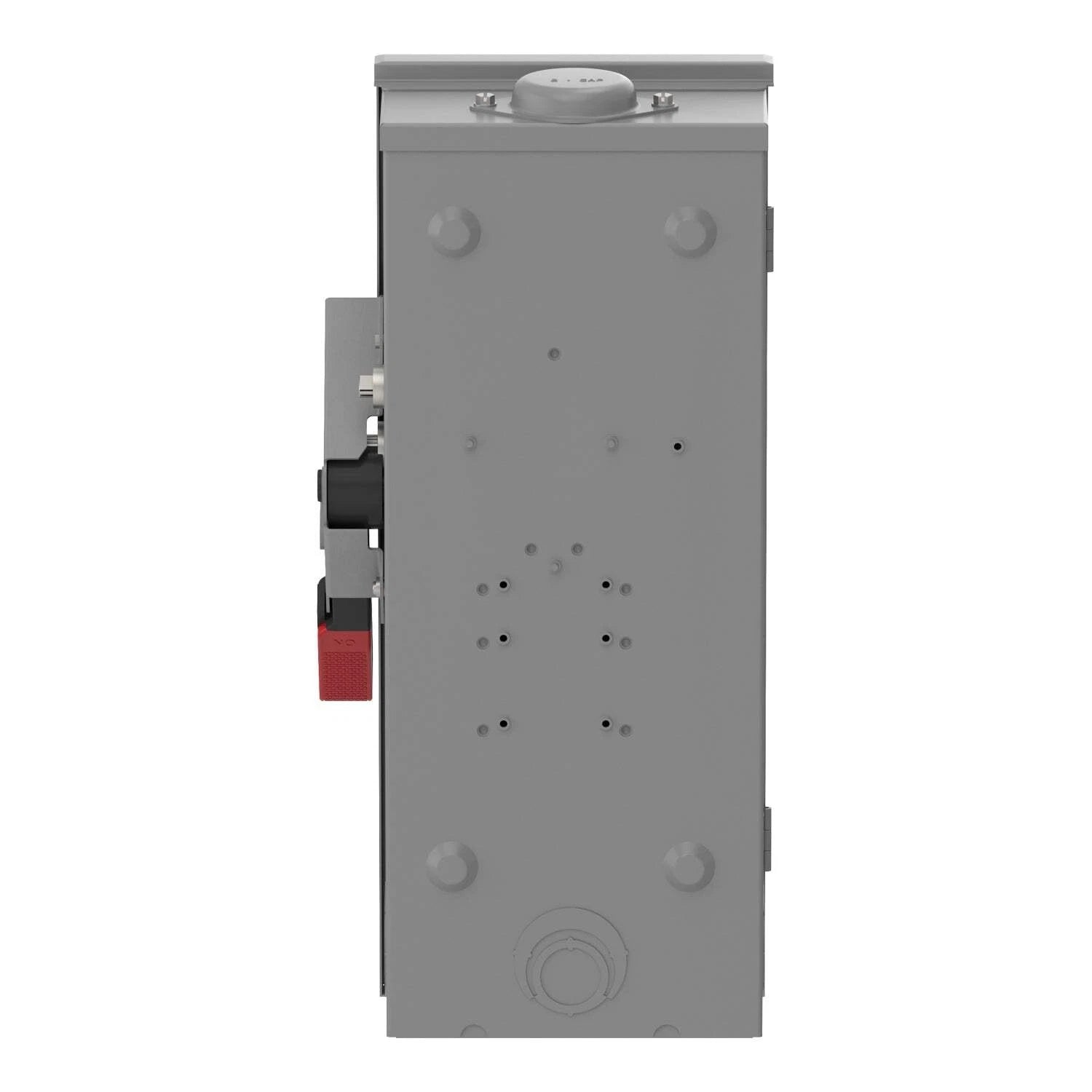

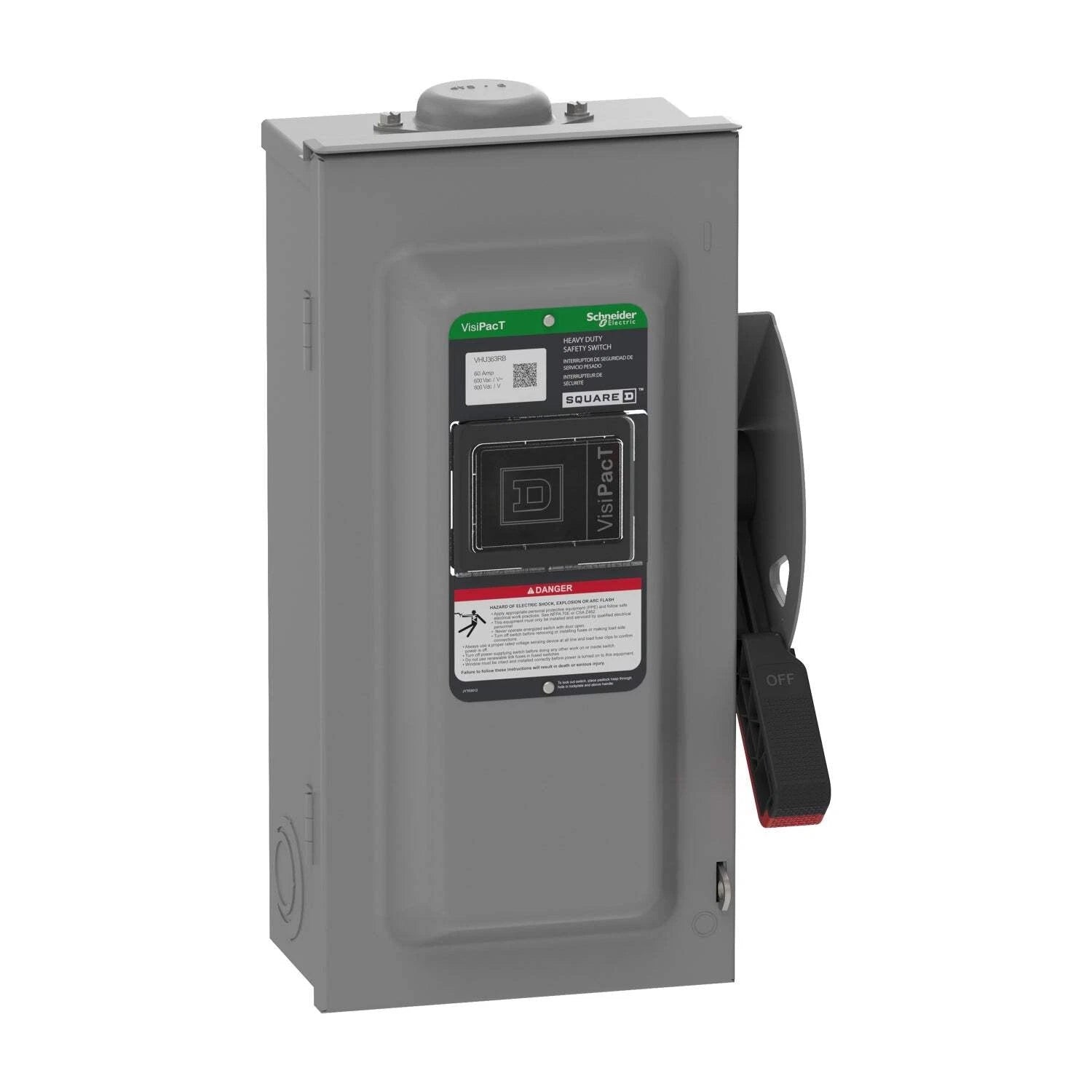

Square D VHU363RB VisiPacT 100 Ampere Three-Pole 600 Volt Non-Fusible Safety Disconnect Switch
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VHU363RB
Description
The Square D VHU363RB is a Schneider Electric VisiPacT heavy-duty non-fusible safety switch designed to isolate electrical power for maintenance, servicing, and emergency disconnect applications. It provides a 100-ampere rating, three-pole switching, operation up to 600 volts alternating or direct current, and a NEMA 3R enclosure for outdoor installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Switch |
| Part Number | VHU363RB |
| Subcategory | Disconnect Switch |
| Manufacturer | Schneider Electric |
| Product Family | VisiPacT |
| Product Type | Heavy-Duty Non-Fusible Safety Switch |
| Current Rating | 100 amperes |
| Voltage Rating | 600 volts alternating current / 600 volts direct current |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Frequency Rating | 50/60 hertz |
| Switch Configuration | Single Throw |
| Fuse Provision | Non-Fusible |
| Enclosure Rating | NEMA 3R |
| Enclosure Material | Galvannealed Steel |
| Mounting Type | Surface Mount |
| Viewing Window | Factory Installed |
| Dimensions | Approximately 22.10 × 9.08 × 7.02 inches |
| Weight | 19.80 lbs |
Information About VHU363RB
The VHU363RB is a Square D VisiPacT heavy-duty safety switch manufactured by Schneider Electric for commercial and industrial power distribution systems. Its galvannealed steel enclosure incorporates a viewing window for visual verification of switch position and uses NEMA 3R construction for outdoor rain-resistant installations. The switch uses a non-fusible three-pole disconnect mechanism with surface mounting, lug terminals, and a quick-make, quick-break operating mechanism. It is suitable for three-phase equipment isolation and can be applied in machinery, heating and cooling equipment, motor circuits, and other installations requiring a manually operated disconnecting means.
Key Features:
- 100-Ampere Rating: Provides a 100-ampere current rating for commercial and industrial electrical isolation applications.
- 600-Volt Operation: Rated for operation at up to 600 volts alternating current or 600 volts direct current.
- Three-Pole Switching: Uses three switching poles for isolation of compatible three-phase electrical loads.
- Non-Fusible Design: Provides a dedicated disconnecting function without integral overcurrent fuses, allowing upstream protective equipment to provide fault protection.
- Outdoor Enclosure: NEMA 3R construction provides a rain-resistant enclosure suitable for outdoor surface-mounted installations.
- Viewing Window: Factory-installed viewing window allows visual verification of the switch position without opening the enclosure.
- Heavy-Duty Mechanism: Uses a quick-make, quick-break operating mechanism and dual cover interlock for controlled switching and access.
- Industrial Standards: Heavy-duty VisiPacT switches are tested to UL 98 and NEMA KS1 requirements for safety switch applications.
The VHU363RB delivers the reliability and precision required for manual power isolation and safe equipment disconnecting in commercial and industrial electrical systems.
