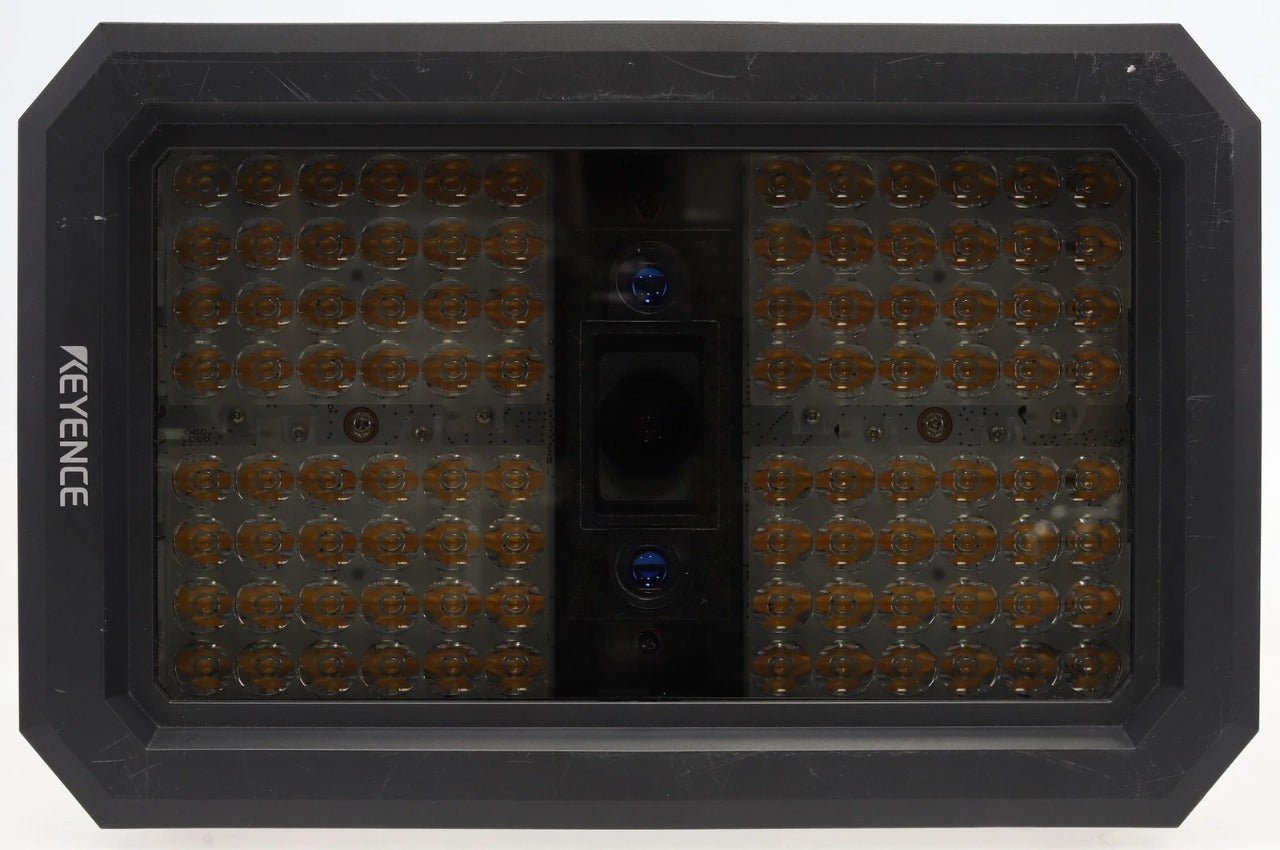

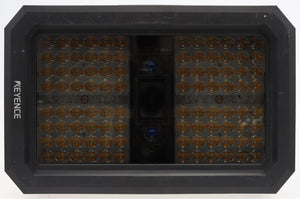

SR-5000W | Keyence SR-5000 Series 8.9 MP Long-Range Logistics Code Reader IP65
- Regular price
- $8,237.00
- Sale price
- $8,237.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: SR-5000W
Description
The Keyence SR-5000W is a high-resolution logistics code reader designed for large-area, long-distance barcode and 2D code scanning. Equipped with an 8.9-megapixel CMOS image sensor and auto-focus function, it delivers precise and fast reading performance for both 1D and 2D codes in demanding industrial and warehouse automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Bar Code Equipment |
| Part Number | SR-5000W |
| Subcategory | Bar Code Accessory |
| Series | SR-5000 Series |
| Sensor Type | CMOS image sensor |
| Resolution | 4096 × 2160 pixels (8.9 megapixels) |
| Focus | Auto |
| Light Source | 96 white LEDs, 2 green pointer LEDs |
| LED Class | Risk Group 1 (IEC 62471) |
| Supported 2D Codes | QR, DataMatrix, MicroPDF417, GS1 Composite, MaxiCode, AztecCode |
| Supported 1D Codes | CODE39, CODE128, ITF, NW-7, GS1-128, JAN/EAN/UPC, Pharmacode |
| Minimum Resolution | 2D: 0.08 mm; 1D: 0.10 mm |
| Reading Distance | 200 mm – 3000 mm (7.87″ – 118.11″) |
| Control Inputs | 3 (bidirectional voltage type, 8–26.4 VDC) |
| Control Outputs | 4 PhotoMOS relay outputs, max 30 VDC, total 100 mA |
| Communication | Ethernet (1000BASE-T/100BASE-TX), RS-232C, USB 2.0 |
| Supported Protocols | TCP/IP, FTP, EtherNet/IP, PROFINET, KV STUDIO, OMRON PLC link |
| Power Supply | 24 VDC ±10% |
| Current Consumption | Approx. 2000 mA |
| Enclosure Rating | IP65 |
| Operating Temperature | 0 °C to +45 °C (32 °F to 113 °F) |
| Relative Humidity | 35–85 % RH (non-condensing) |
| Ambient Light Resistance | Sunlight: 10,000 lux; Incandescent: 6,000 lux; Fluorescent: 2,000 lux |
| Storage Temperature | –10 °C to +50 °C (14 °F to 122 °F) |
| Vibration Resistance | 10–55 Hz, 0.3 mm amplitude, 2 h in X, Y, Z |
| Weight | Approx. 5.7 kg (12.6 lbs) |
Information About SR-5000W
The SR-5000W belongs to Keyence’s SR-5000 Series of advanced logistics code readers optimized for long-range, wide-field scanning applications. It uses a 4096 × 2160 pixel CMOS sensor with high-intensity white and green LEDs to ensure accurate decoding across variable surfaces and lighting conditions. With a reading range of 200 to 3000 mm, it supports major 1D and 2D symbologies including QR, DataMatrix, PDF417, and Code128. The unit features Ethernet (1000BASE-T/100BASE-TX), RS-232C, and USB interfaces for versatile connectivity. Built to withstand harsh environments, the SR-5000W offers IP65 protection, operates in temperatures from 0 to 45 °C, and maintains reliable operation even under strong ambient light.
Key Features:
- High-Resolution CMOS Sensor: 8.9-megapixel (4096 × 2160) image sensor captures large areas for multi-code reading.
- Long Reading Distance: Accurately decodes from 200 mm to 3000 mm (7.87" to 118.11").
- Broad Code Compatibility: Supports all common 1D and 2D codes including QR, DataMatrix, PDF417, GS1, and Postal formats.
- Auto-Focus System: Ensures sharp image acquisition at varying distances for moving or stationary targets.
- Powerful LED Illumination: Integrated 96 white and 2 green pointer LEDs for high visibility under ambient light.
- Multiple Interfaces: Ethernet (Gigabit/100BASE-TX), RS-232C, and USB 2.0 provide flexible connectivity options.
- Robust Construction: IP65-rated aluminum housing withstands dust and moisture in industrial conditions.
- Wide Environmental Range: Operates from 0 to 45 °C and resists vibration and shock.
- Low Latency Processing: Real-time decoding supported by advanced Keyence image algorithms.
- Integrated I/O Control: Features 3 inputs and 4 PhotoMOS relay outputs for external device interfacing.
The SR-5000W offers exceptional versatility and precision for logistics, manufacturing, and warehouse automation systems.
