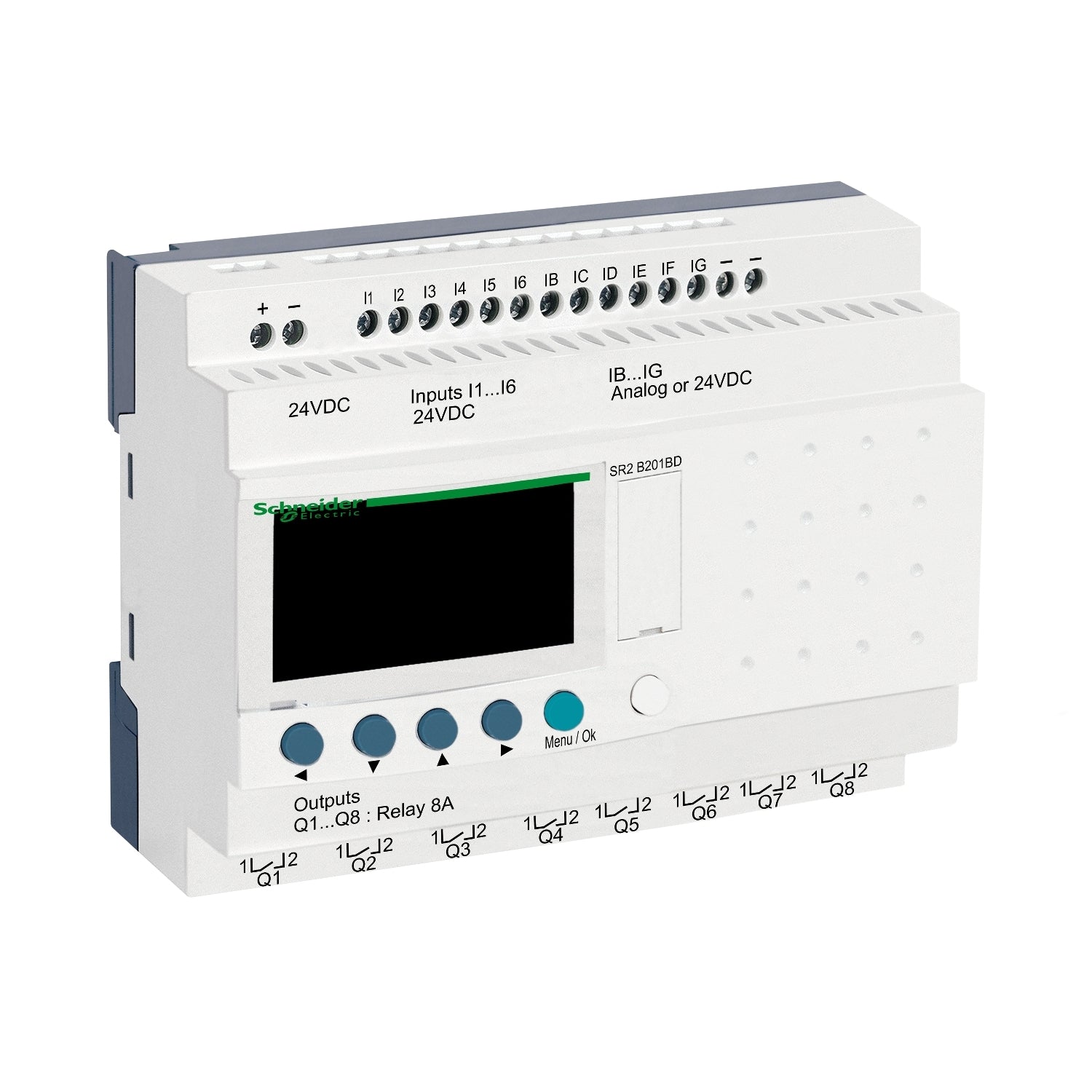

SR2B201BD | Schneider Electric Compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, clock, display, 8 relay outputs
- Regular price
- $329.00
- Sale price
- $329.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SR2B201BD
Description
Square D Smart Relay, Compact, 24 VDC Supply Voltage, 100 mA, 6 Input, 8 Output, Resistive Input, -20 to 40 deg C/-20 to 55 deg C.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | SR2B201BD |
| Category | PLCs/Machine Control |
| Subcategory | VDC Logic I/O Module |
| Amperage Rating | 100 mA |
| Input Type | Resistive |
| Number of inputs | 6 |
| Number of outputs | 8 |
| Supply voltage | 24 VDC |
| Temperature Rating (Degrees F) | -20 to 40/-20 to 55 deg C |
| Type | Compact |
Information About SR2B201BD
This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 20 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Features
6 to 90 ms cycle time
10 years at 25 deg C backup time
6 sec/month at 25 deg C, 12 min/year at 0 to 55 deg C clock drift
Check program memory on each power up
19.2 to 30 V supply voltage limits
6 W without extension power consumption
With reverse polarity protection
12 conforming to EN/IEC 61131-2 type 1 discrete input
24 VDC, 4 mA discrete input
1 kHz for discrete input counting frequency
Common mode analog input type
30 V (analog input circuit) maximum permissible voltage
8 bits analog input resolution
39 mV (analog input circuit) LSB
Smart relay cycle time for analog input circuit conversion time
10 m between stations, with screened cable (sensor not isolated) for analog input circuit operating distance
24 to 250 VAC (relay output), 5 to 30 VDC (relay output) output voltage limits
8 A for all 4 outputs thermal current
10000000 cycles mechanical durability
10 ms, 5 ms response time
Manufacturer information
