SR2USB01 | Schneider Electric PC Data Acquisition USB PC Cable

Description

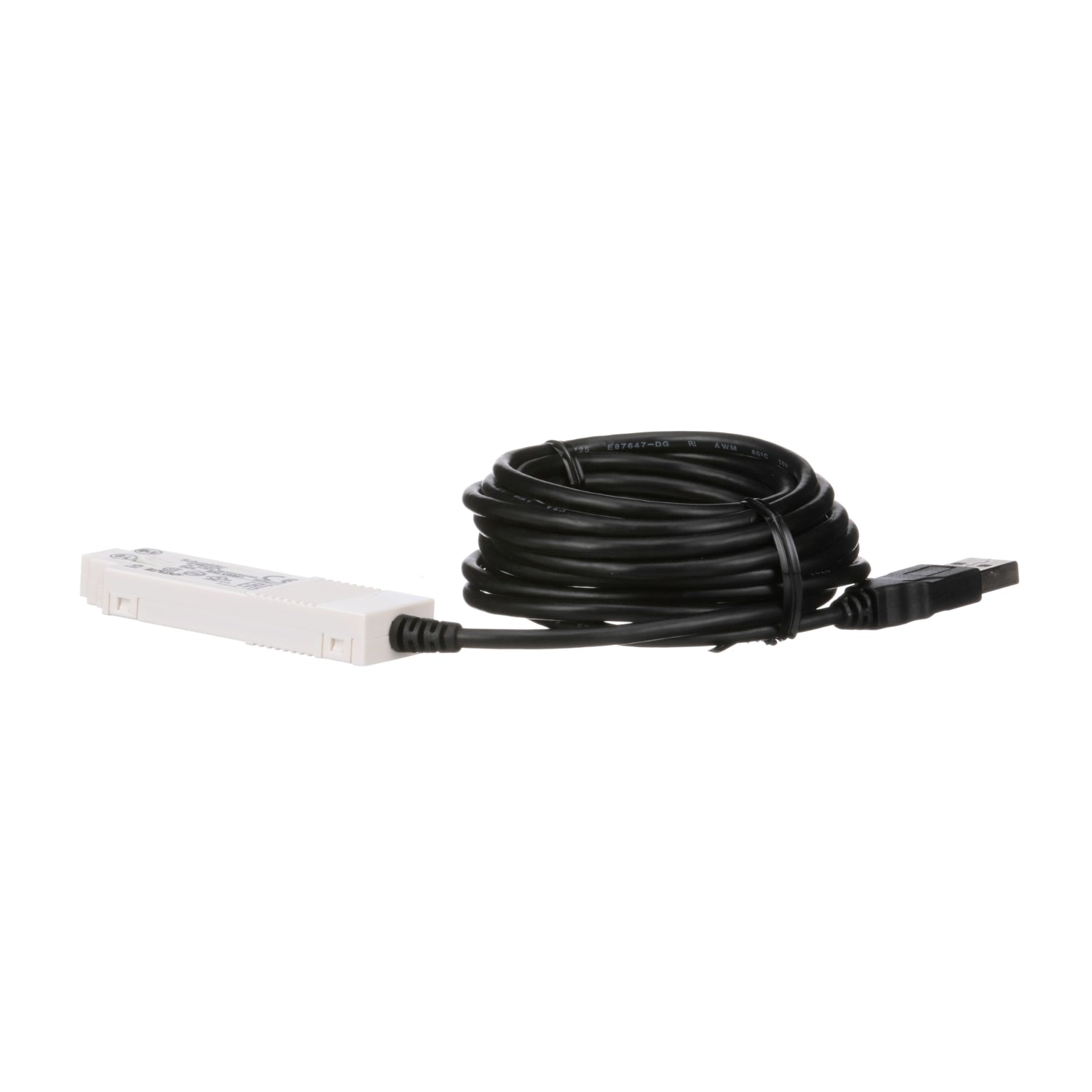

The Schneider Electric SR2USB01 is a PC Data Acquisition USB cable designed for use with the Zelio Logic smart relay, specifically from the Zelio Logic SR2 series. The cable is 3 meters in length, providing ample reach for connecting devices.

The Zelio Logic range comprises three monobloc models with 10, 12, or 20 I/O. These models are available with or without display and buttons. Additionally, two bases are available, offering 10 or 26 I/O that can be extended using Modbus or Ethernet communication extension modules. These extension modules provide 6, 10, or 14 discrete I/O and 4 analog I/O.

With dimensions of 124.6 x 90 x 59 mm, the Zelio Logic bases can accommodate up to 26 I/O. They are compatible with supply voltages of 12 V DC, 24 V DC, 24 V AC, and 100 to 240 V AC. The Zelio Logic features a large backlit LCD display with 4 lines of 18 characters and 1 line of icons, along with contextual navigation using 6 buttons.

The SR2USB01 facilitates a connection between the PC (via USB connector) and the Zelio Logic smart relay (via programming port connector). Additionally, it offers a connection interface for Bluetooth wireless connection.

Technical Specifications

Information About SR2USB01

The Schneider Electric SR2USB01 is a PC Data Acquisition USB PC Cable designed specifically for use with Zelio Logic devices, featuring a length of 3 meters. It is compatible with the Zelio Logic SR2 Series.

The Zelio Logic range comprises three monobloc models with varying I/O configurations, offering options with or without display and buttons. Bases are available with 10 or 26 I/O, which can be expanded using Modbus or Ethernet communication extension modules. These modules provide additional discrete and analog I/O capabilities. The maximum I/O count supported is 26 within compact dimensions of 124.6 x 90 x 59 mm.

Bases are compatible with supply voltages ranging from 12V DC to 100-240V AC. The large backlit LCD display features 4 lines of 18 characters and 1 line of icons, facilitating intuitive navigation through contextual menus using 6 buttons.

The SR2USB01 cable facilitates a direct connection between a PC and the Zelio Logic smart relay via USB and programming port connectors respectively. Additionally, it supports Bluetooth wireless connection for added flexibility.

Programming Zelio Logic devices is streamlined with Zelio Soft 2 intuitive programming software. Users can choose between function block diagram (FBD) or contact language (LADDER) programming, with a variety of preprogrammed functions available. The software ensures safe programming with coherence tests, simulation, monitoring modes, and a supervision window. Remote monitoring and control are enabled through Modem Communication Interface (Analog or GSM).
