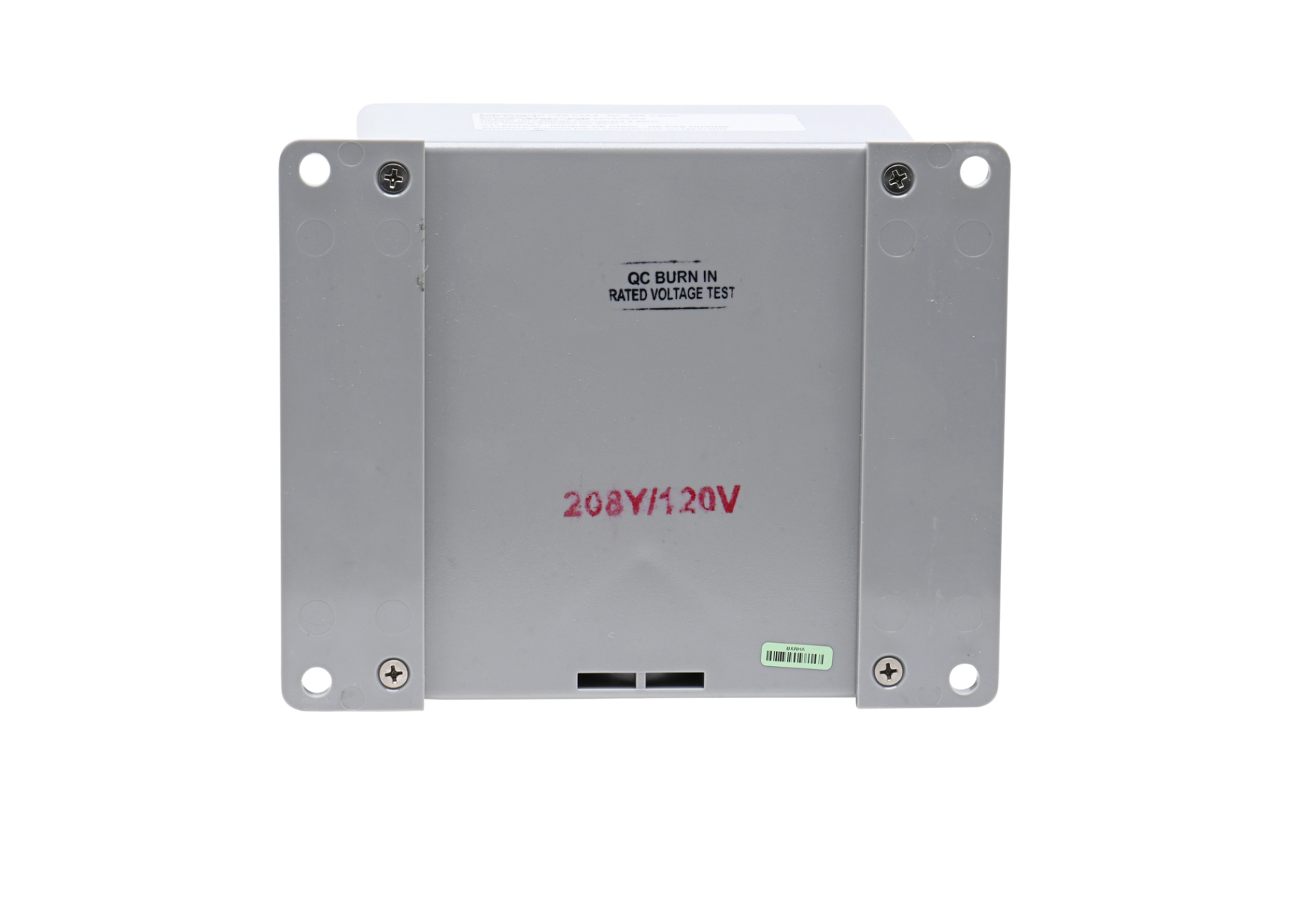

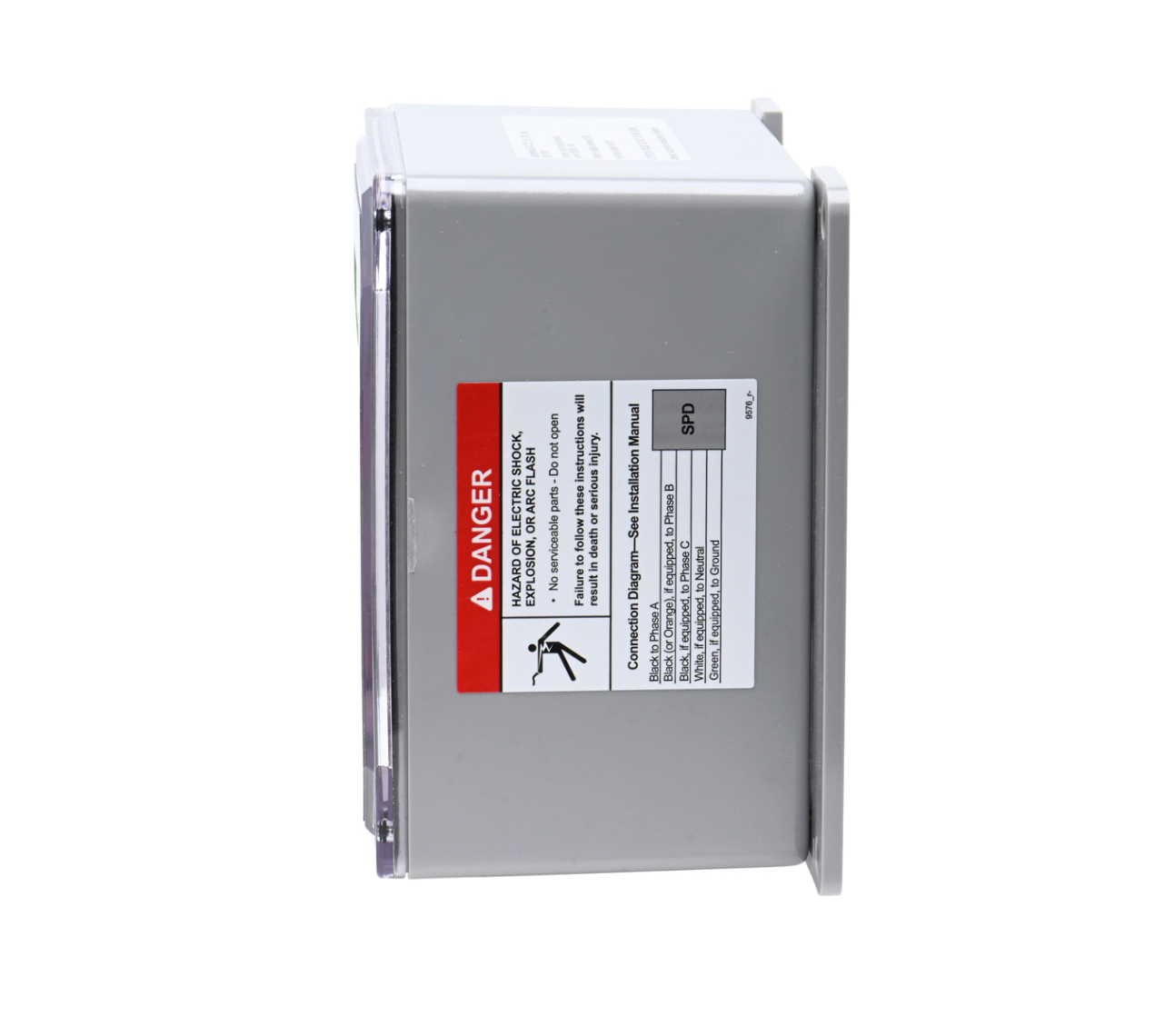

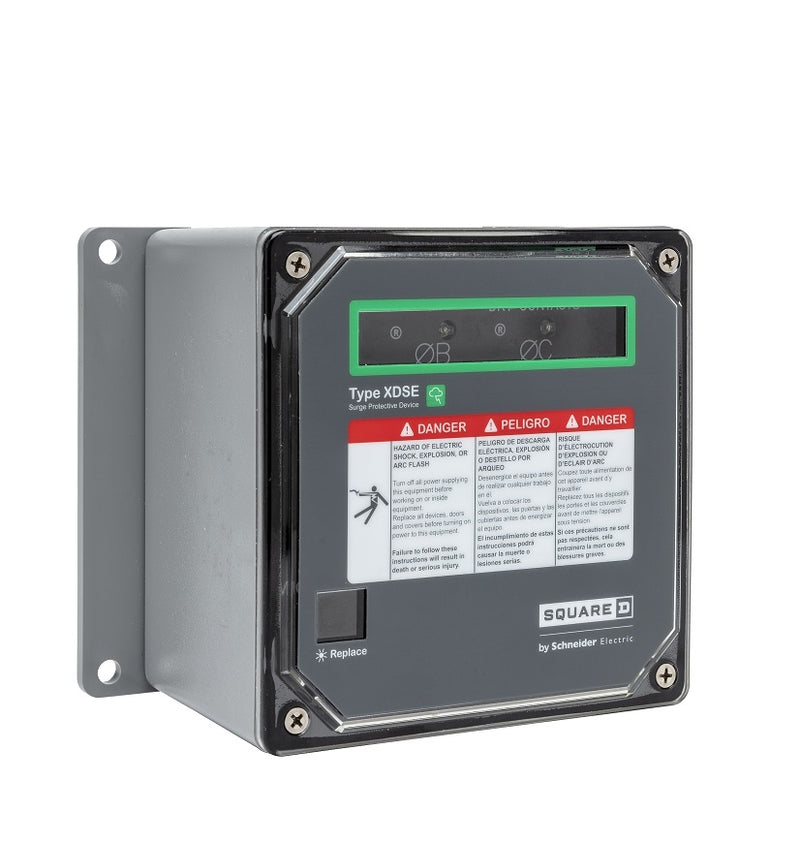

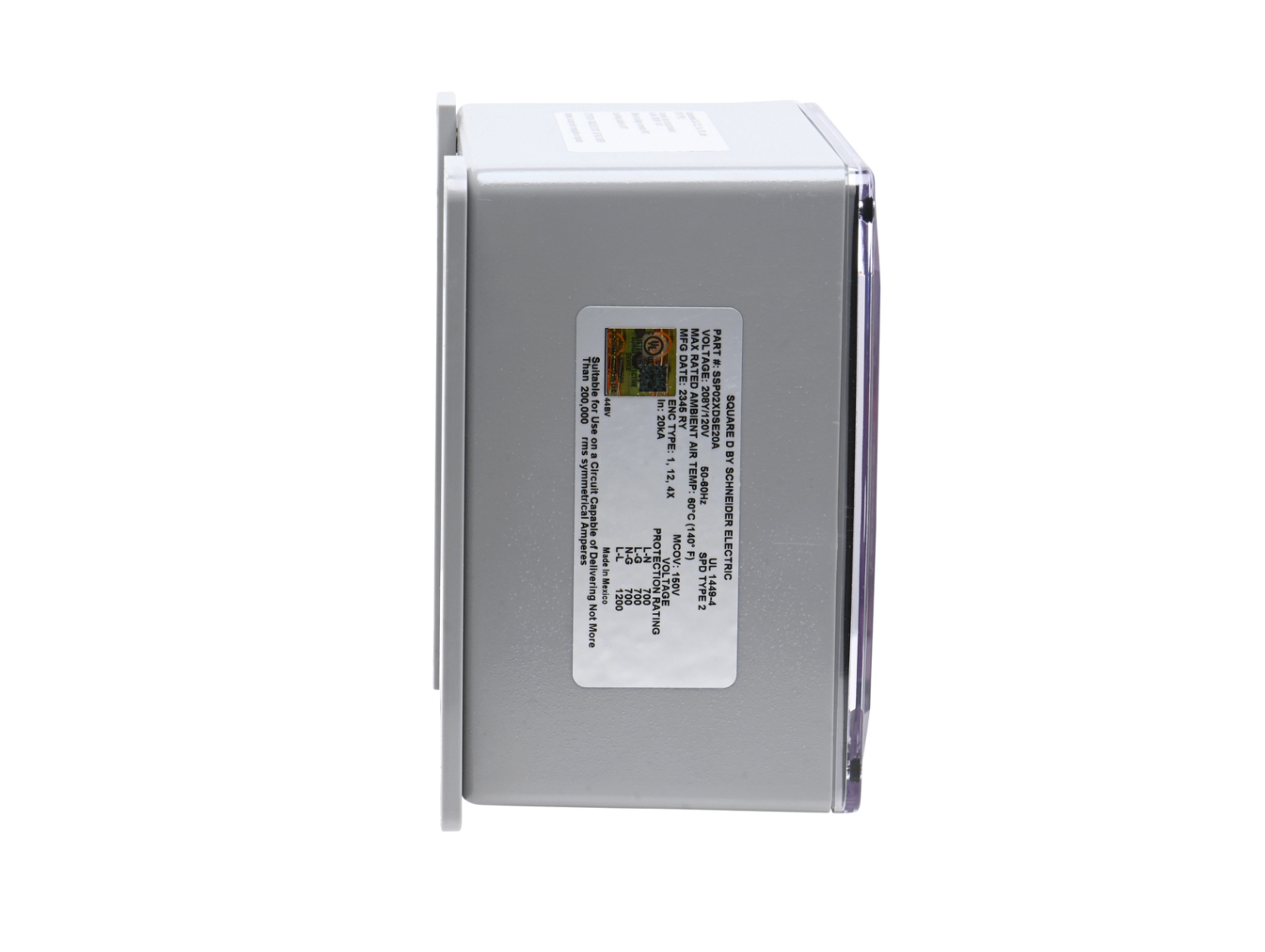

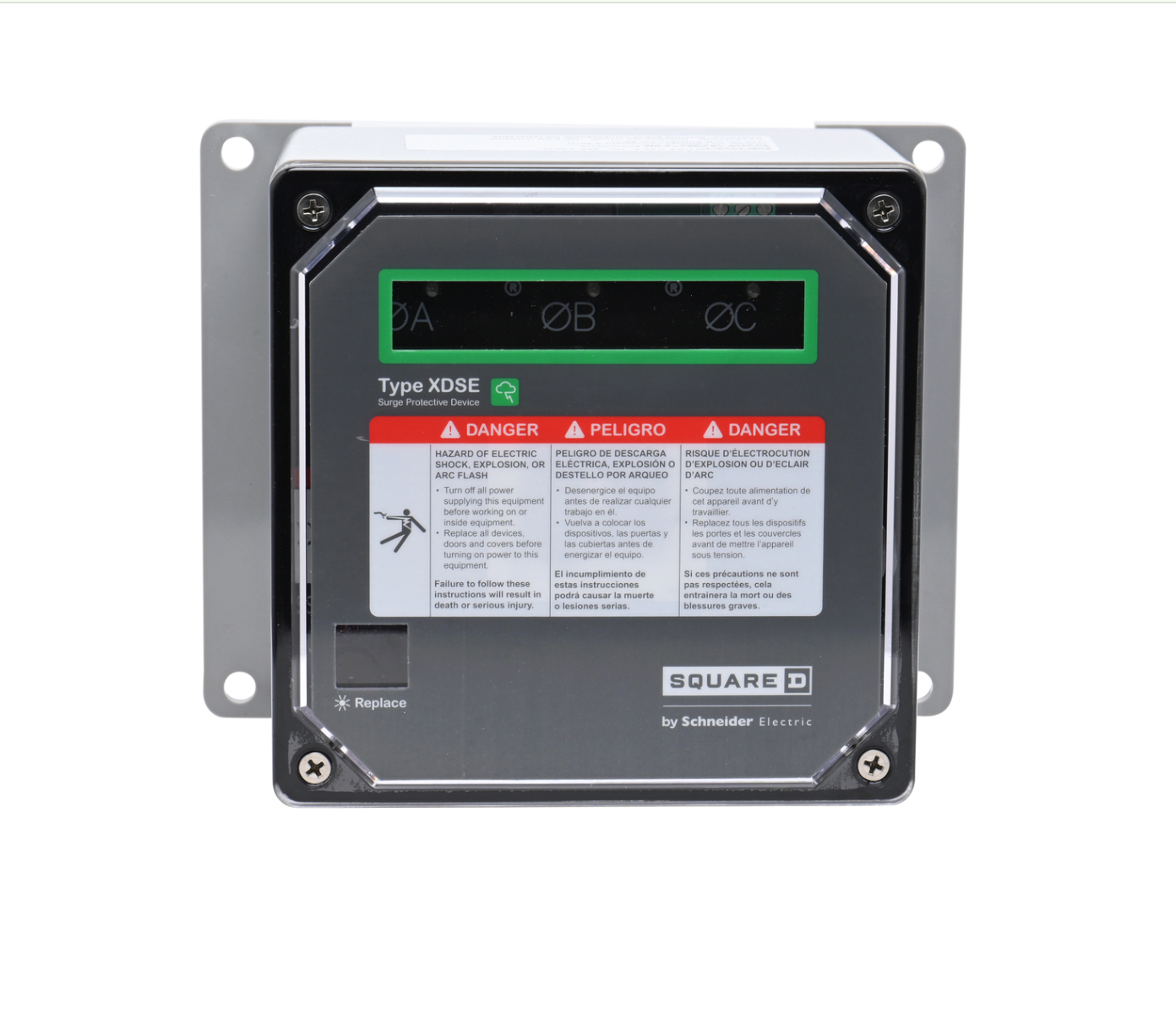

SSP02XDSE20A | Square D Surgelogic XDSE Type 2 Surge Protective Device, 208Y/120VAC
- Regular price
- $2,126.00
- Sale price
- $2,126.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SSP02XDSE20A
Description
The Square D SSP02XDSE20A is a Surgelogic Type 2 surge protective device engineered to protect electrical systems from transient overvoltage events. Rated for 208Y/120 VAC three-phase systems, this device provides high-capacity surge suppression with visual LED status indication for system monitoring. Designed for installation in commercial and industrial environments, the SSP02XDSE20A helps safeguard sensitive equipment and power distribution infrastructure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Surge Protection |
| Part Number | SSP02XDSE20A |
| Subcategory | Surge Protective Devices |
| Series | Surgelogic XDSE |
| SPD Type | Type 2 |
| Voltage Rating | 208Y/120 VAC |
| Number of Phases | Three Phase |
| Wiring Configuration | 4-Wire |
| Maximum Continuous Operating Voltage (MCOV) | 150 V |
| Surge Current Capacity | 200 kA per phase |
| Nominal Discharge Current | 20 kA |
| Voltage Protection Rating (VPR) | 700 V L–N, 700 V L–G, 600 V L–L, 1000 V N–G |
| Enclosure Rating | NEMA 4X |
| Status Indication | LED Indicator |
| Mounting Location | Distribution panel or service equipment |
| Dimensions (H × W × D) | 5.98 in × 5.98 in × 3.98 in |
| Country of Origin | Mexico |
| Weight | 1.77 kg |
Information About SSP02XDSE20A
The SSP02XDSE20A is a Square D Surgelogic XDSE Series surge protective device designed for Type 2 applications at service entrances and distribution panels. It is built for 4-wire, three-phase electrical systems and features robust internal surge suppression components capable of handling high-energy transient events. The device is housed in a NEMA 4X enclosure, providing protection against dust, moisture, and corrosive environments. With integrated diagnostic indication and compliance with international standards, it supports reliable long-term system protection.
Key Features:
- Type 2 Surge Protective Device: Designed for installation on the load side of service equipment
- High Surge Capacity: Rated for 200 kA peak surge current per phase
- Three-Phase Protection: Supports 208Y/120 VAC, 4-wire electrical systems
- NEMA 4X Enclosure: Suitable for indoor and outdoor installations
- LED Status Indicator: Provides visual confirmation of protection status
- Low Voltage Protection Ratings: Limits let-through voltage to protect connected equipment
- Surgelogic XDSE Series Design: Engineered for durable and consistent surge suppression
The SSP02XDSE20A delivers the reliability and precision required for transient voltage surge protection in commercial and industrial power systems.
