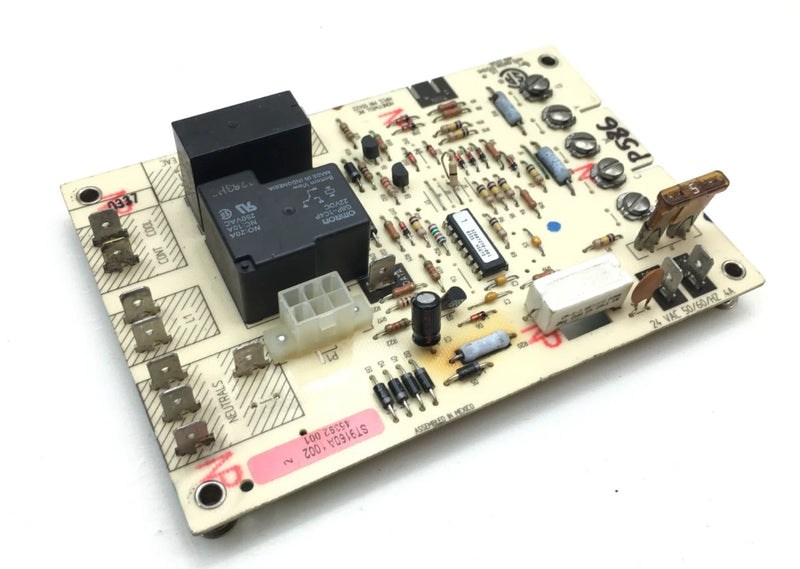

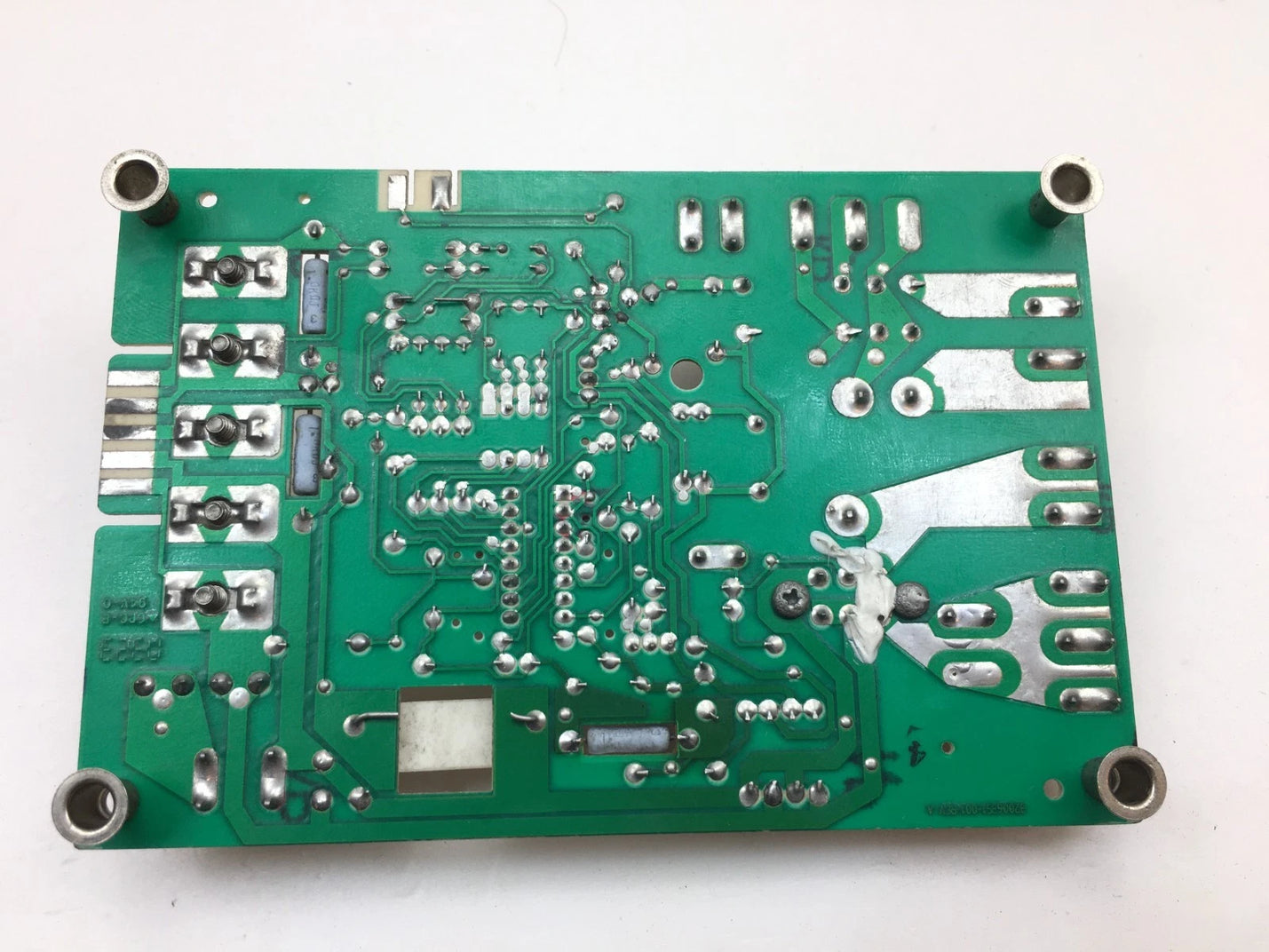

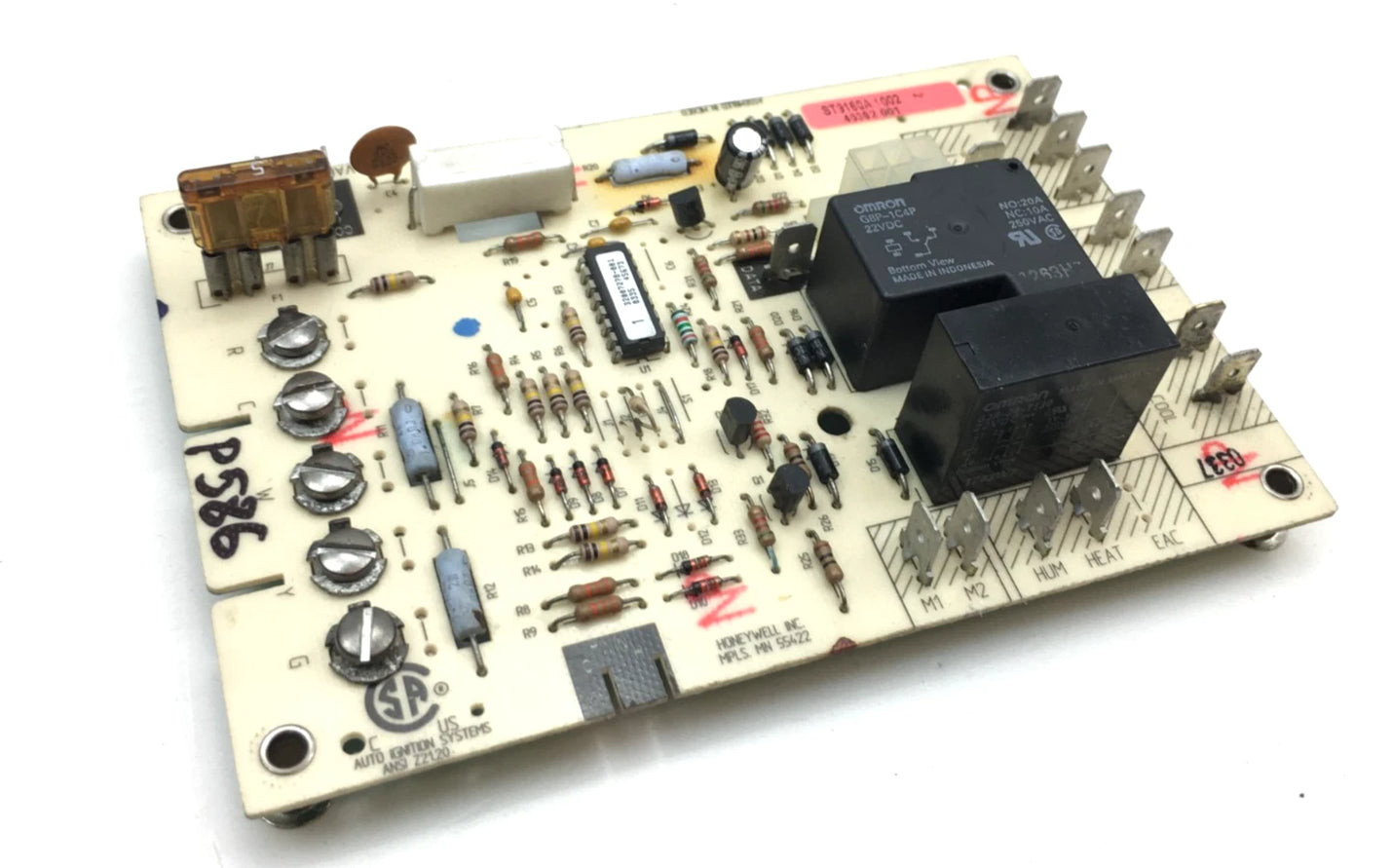

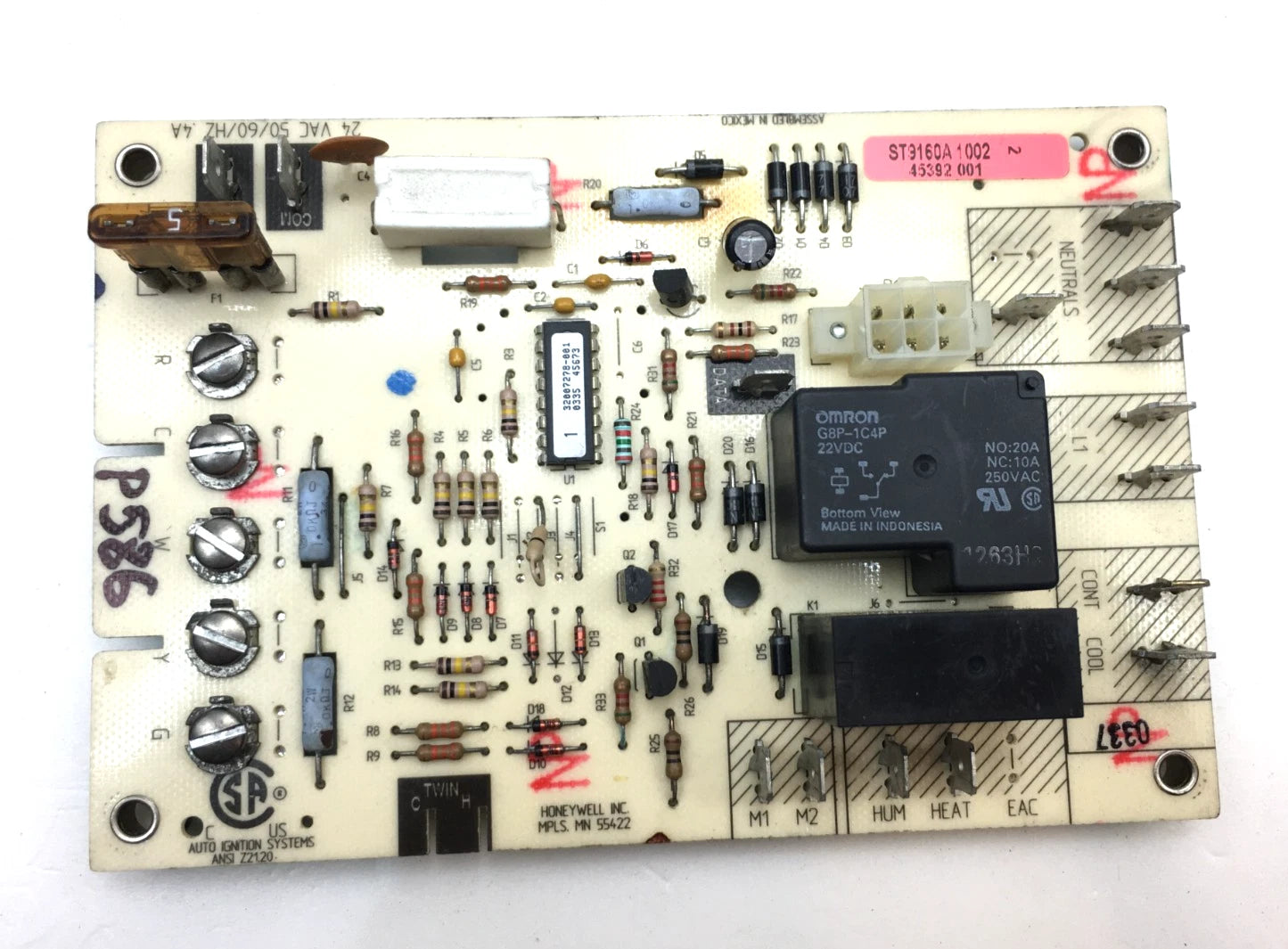

ST9160A1002 | Honeywell Universal Furnace Control Board
- Regular price
- $257.00
- Sale price
- $257.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ST9160A1002
Description
The Honeywell ST9160A1002 is a furnace control circuit board designed to manage and coordinate heating system components. It functions as the central processing "brain" of compatible furnaces, controlling elements like the fan, ignition, and safety sensors. This OEM board is typically used as a direct replacement for models using part numbers such as ST9160B1001 and 45392-001, offering dependable control performance in HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | ST9160A1002 |
| Subcategory | Furnace Control Board |
| Replacement IDs | ST9160B1001, 45392-001 |
| Compatibility | Multiple OEM furnace systems |
| Function | Furnace operations coordination (ignition, blower, sensors) |
| Includes | Wiring harness for varied models |
| Installation Type | Plug-and-play, drop-in replacement |
| Diagnostics | LED indicators for fault detection |
| Form Factor | PCB board with connector interface |
| Use Case | Residential and light commercial HVAC systems |
| Durability | Engineered for continuous furnace cycling |
| Weight | 0.2 kg |
Information About ST9160A1002
The ST9160A1002 belongs to Honeywell’s ST91xx series of furnace control boards and is engineered for universal compatibility with various OEM heating systems. It operates as the primary control hub, executing ignition sequences, blower timing, and responding to safety switches like flame sensors and limit sensors. Often included with a wiring harness for multi-brand compatibility, it simplifies installation across different furnace platforms. The board is built with robust components for reliable long-term heating cycle management in residential and light commercial HVAC applications.
Key Features:
- Universal OEM Compatibility: Replaces part numbers ST9160A1002, ST9160B1001, and 45392-001 across multiple furnace brands.
- Full Control Execution: Manages ignition, blower, safety sensors, and timing sequences for efficient furnace operation.
- Wiring Harness Included: Adaptable connections simplify replacement in varied furnace models.
- Diagnostic LED Indicators: Provides quick system health and fault feedback during troubleshooting.
- Robust Design: Built with proven components to ensure reliable performance under standard HVAC conditions.
- OEM Replacement Quality: Matches original factory specifications for seamless integration.
- Ease of Installation: Designed for drop-in replacement, minimizing service time.
The ST9160A1002 delivers the reliability and precision required for safe and efficient furnace control duties.
