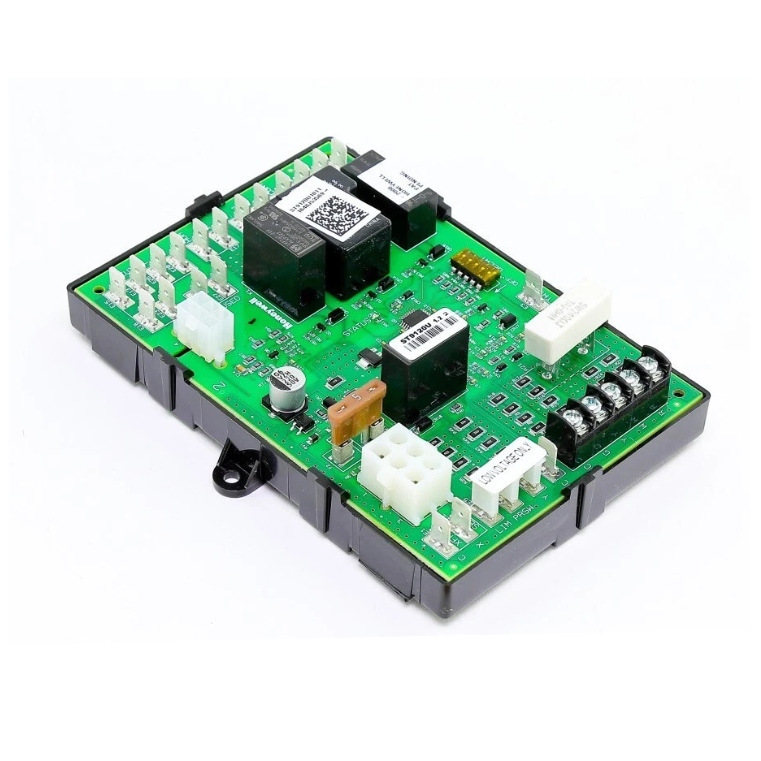

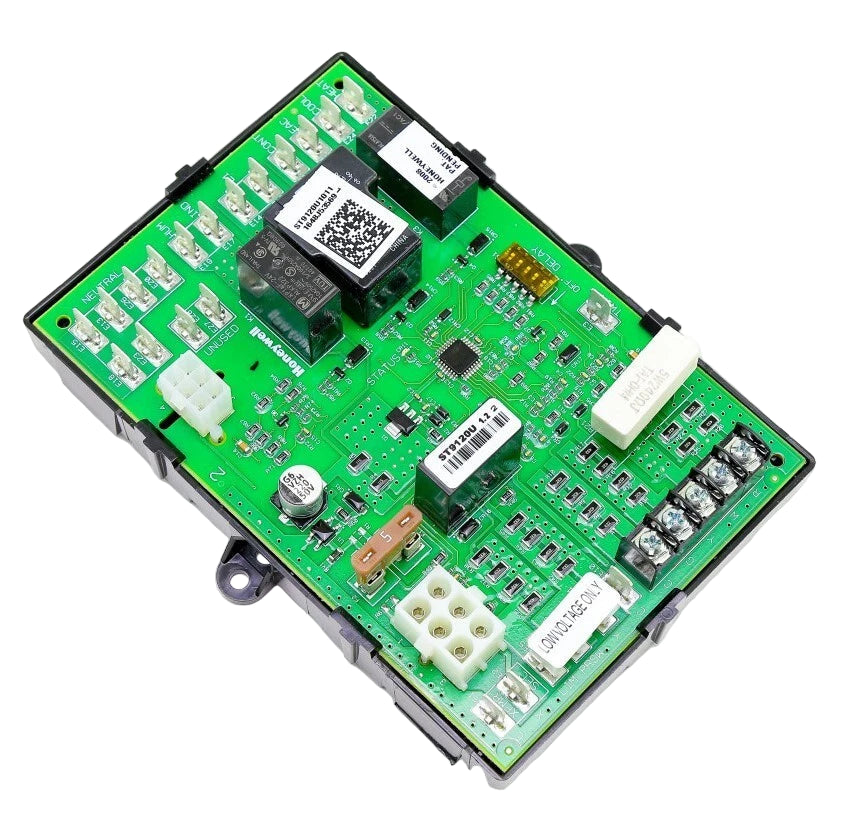

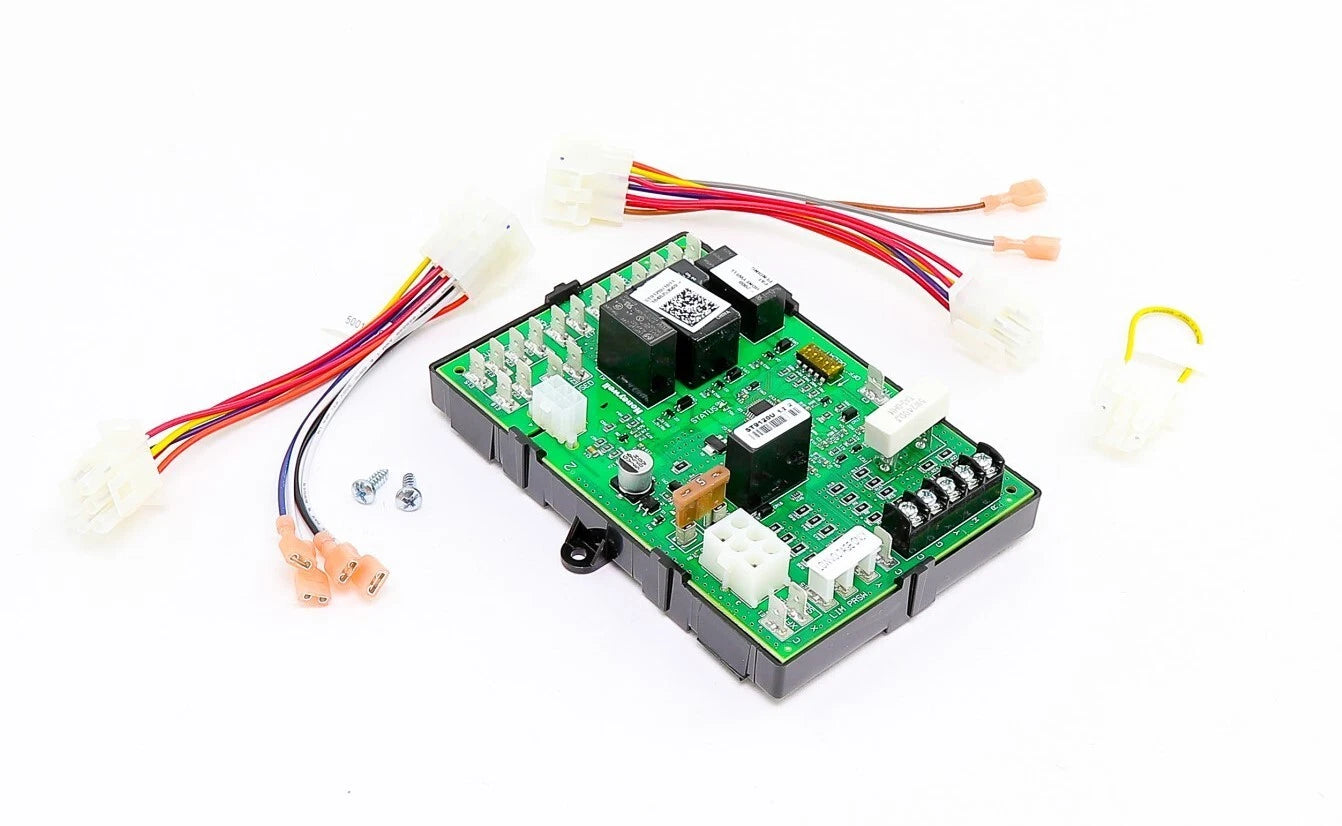

ST9160B1068 | Honeywell Universal Electronic Fan Timer Board

Description

The Honeywell ST9160B1068 is a universal electronic fan timer board designed for controlling furnace blower and fan operations. Operating on 18–30 VAC, it serves as a reliable OEM replacement for Honeywell and Armstrong heating systems.

Technical Specifications

Information About ST9160B1068

The ST9160B1068 is part of Honeywell’s line of universal furnace control boards, engineered to regulate blower fan operation in gas-fired furnaces. It provides precise timing control for both heating and cooling modes, ensuring optimal airflow and system efficiency. Designed as an OEM upgrade, it is compatible with select Honeywell and Armstrong systems, making it suitable for both direct replacement and retrofit applications. The board operates within an 18–30 VAC voltage range and comes in a compact 8 × 6 × 10-inch form factor, weighing 453 grams for ease of installation and handling.

Key Features:

• Universal Electronic Fan Timer: Controls blower fan operation in both heating and cooling modes.

• OEM Replacement: Designed to replace select Honeywell and Armstrong control boards directly.

• 18–30 VAC Operation: Compatible with standard low-voltage furnace control systems.

• Precise Timing Control: Ensures optimal blower sequencing for efficiency and comfort.

• Compact Size: Measures 8 × 6 × 10 inches for easy installation in furnace compartments.

• Lightweight Design: Weighs only 453 grams, simplifying handling and mounting.

• Durable OEM-Grade Components: Built to Honeywell standards for long-term reliability.

• Versatile Application: Suitable for both repair and upgrade of compatible HVAC systems.

The ST9160B1068 delivers the precision and dependability required for consistent blower control in residential heating and cooling systems.
