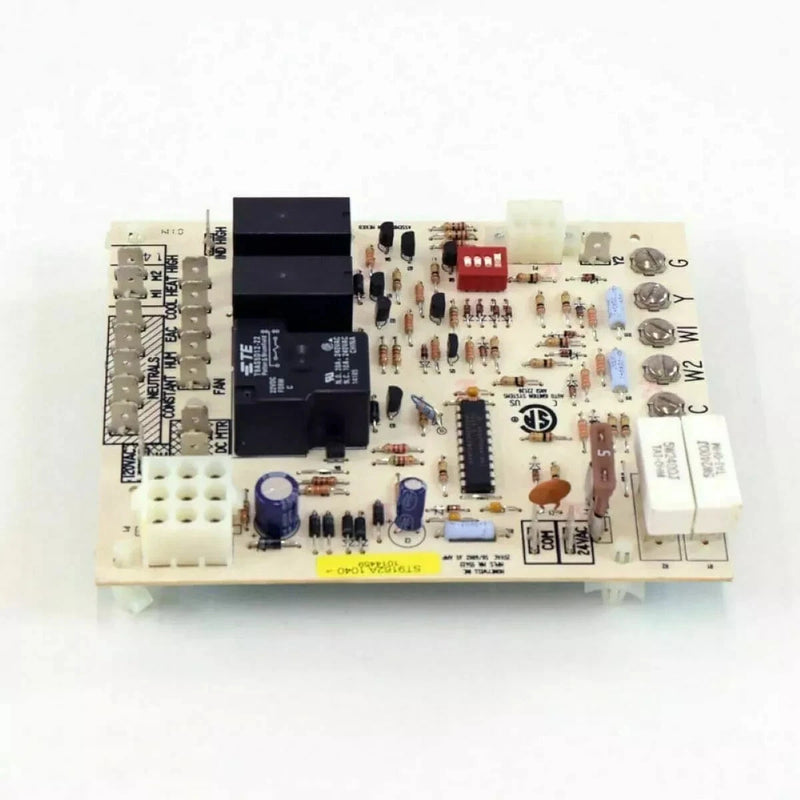

ST9162A1040 | Honeywell Furnace Control Circuit Board
- Regular price
- $426.00
- Sale price
- $426.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ST9162A1040
Description
The ST9162A1040 is an OEM Honeywell furnace fan control board used to manage blower motor operation in HVAC systems. It is designed for warm-air gas furnace applications and integrates timing, ignition, and fan control into one unit.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | ST9162A1040 |
| Subcategory | HVAC Fan & Ignition Control |
| Product Type | Furnace Fan Control Board |
| Application | Single-stage gas furnaces |
| Functions Controlled | Blower motor, inducer fan, limit switch, ignition sequence |
| Input Voltage | Typically 24 VAC (furnace control standard) |
| Mounting Type | Panel mount |
| Upgrade Kit Includes | Replacement board, wiring harness, installation guide |
| Control Logic | Integrated fan, heat, and safety timing functions |
| Wiring Terminals | Labeled low-voltage terminal strip |
| System Compatibility | OEM Honeywell and compatible North American systems |
| Status | Discontinued |
| Weight | 0.9 lbs |
Information About ST9162A1040
The ST9162A1040 is a Honeywell furnace fan control circuit board designed for single-stage gas furnaces, providing control over the blower motor, inducer fan, and limit switch operation. It replaces older Honeywell models and is part of the ST9100 series family of fan boards. While no longer in production, it is often upgraded using the Honeywell ST9120C4040 kit, which includes enhanced microprocessor control and detailed wiring instructions for seamless integration. This board ensures proper airflow during heating and cooling cycles and supports timing sequences for safe burner operation.
Key Features:
- Blower Motor Control: Operates the main circulating fan during heating and cooling modes.
- Integrated Furnace Logic: Manages ignition sequence, blower delays, and limit switch response.
- OEM Replacement Part: Compatible with select Honeywell and OEM systems in North America.
- Upgrade Path Available: ST9120C4040 serves as a direct upgrade, with included instructions.
- Multifunctional Board: Combines fan, heat, and ignition logic for efficient HVAC control.
- Wiring Harness Compatibility: Accepts standard low-voltage furnace wiring schemes.
- Pre-set Timings: Controls fan on/off delays, purge times, and call-for-heat sequences.
- UL Recognized Component: Designed for safety and reliability in residential heating systems.
- Easy Installation: Clearly labeled terminals and plug-in connectors simplify setup.
- Discontinued Model: Supported through replacement kits and retrofit documentation.
The ST9162A1040 delivers the automation and safety features required for consistent and reliable gas furnace fan operation.
