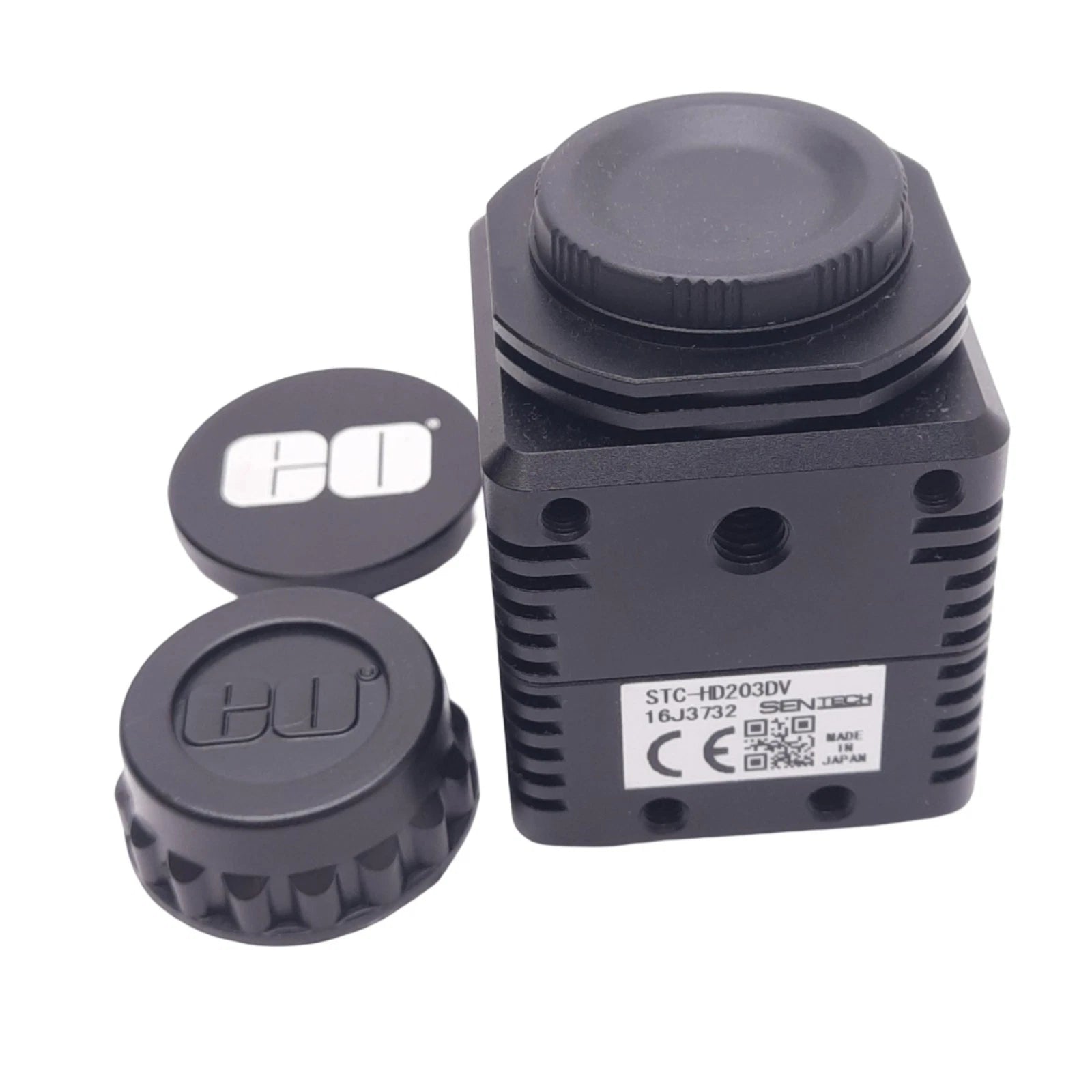

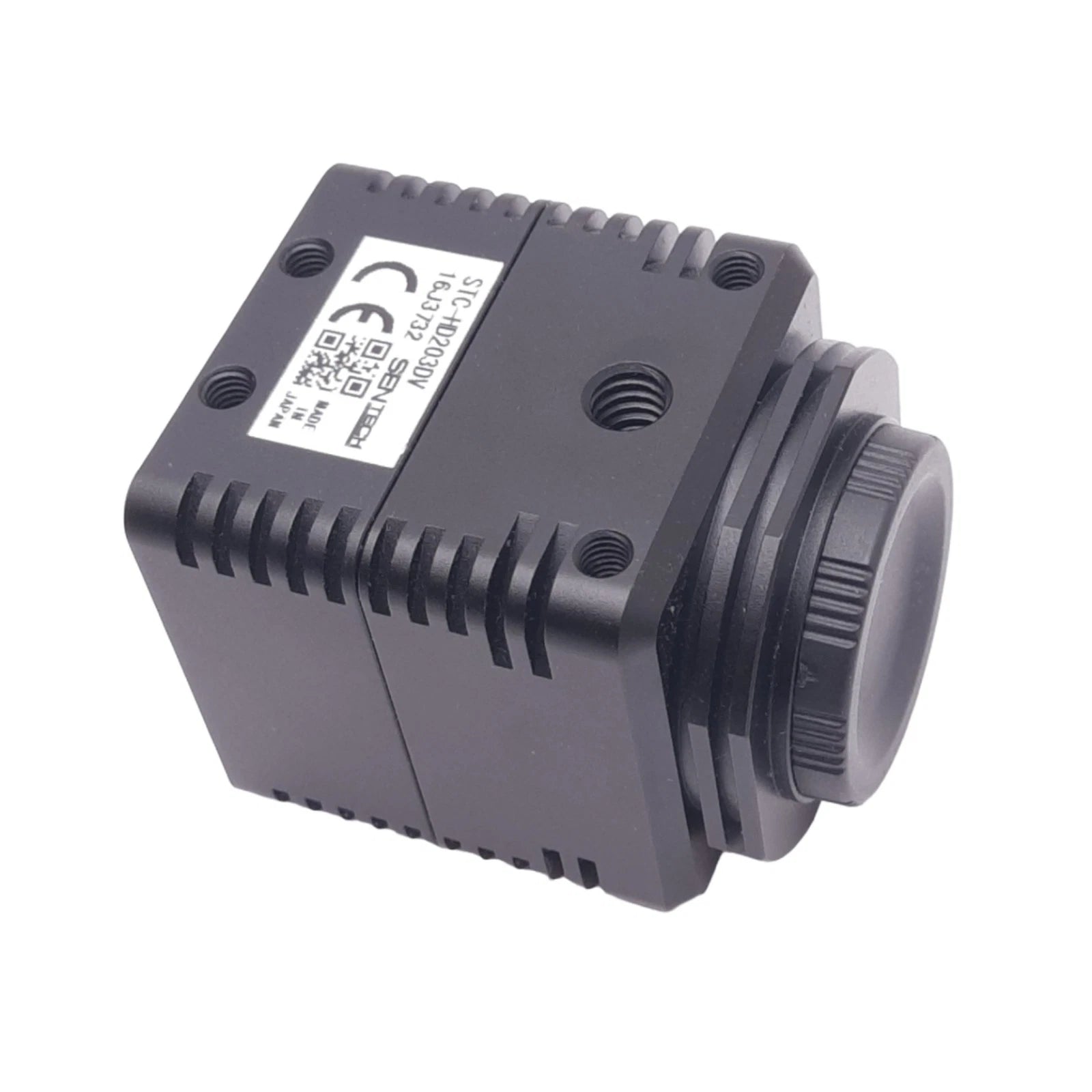

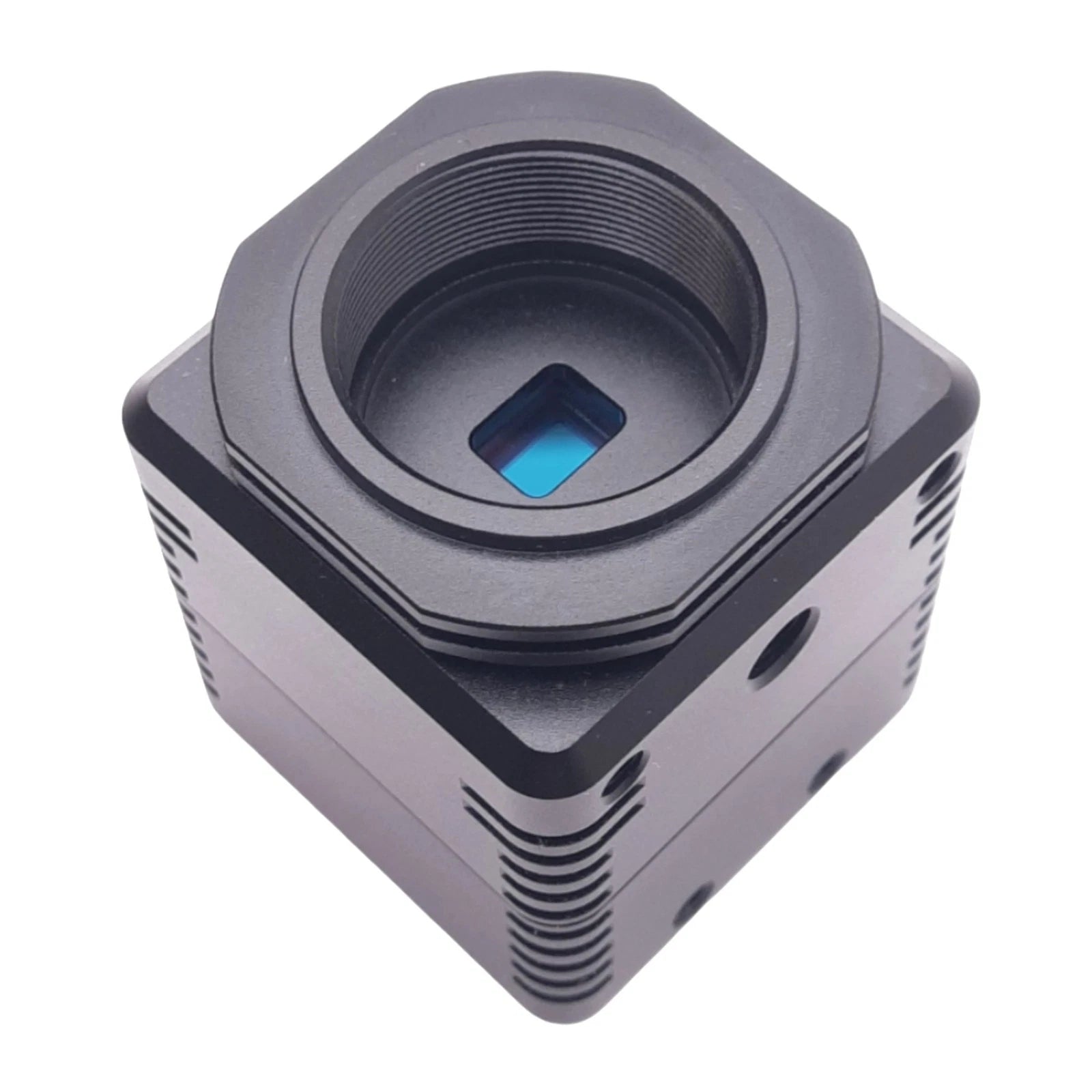

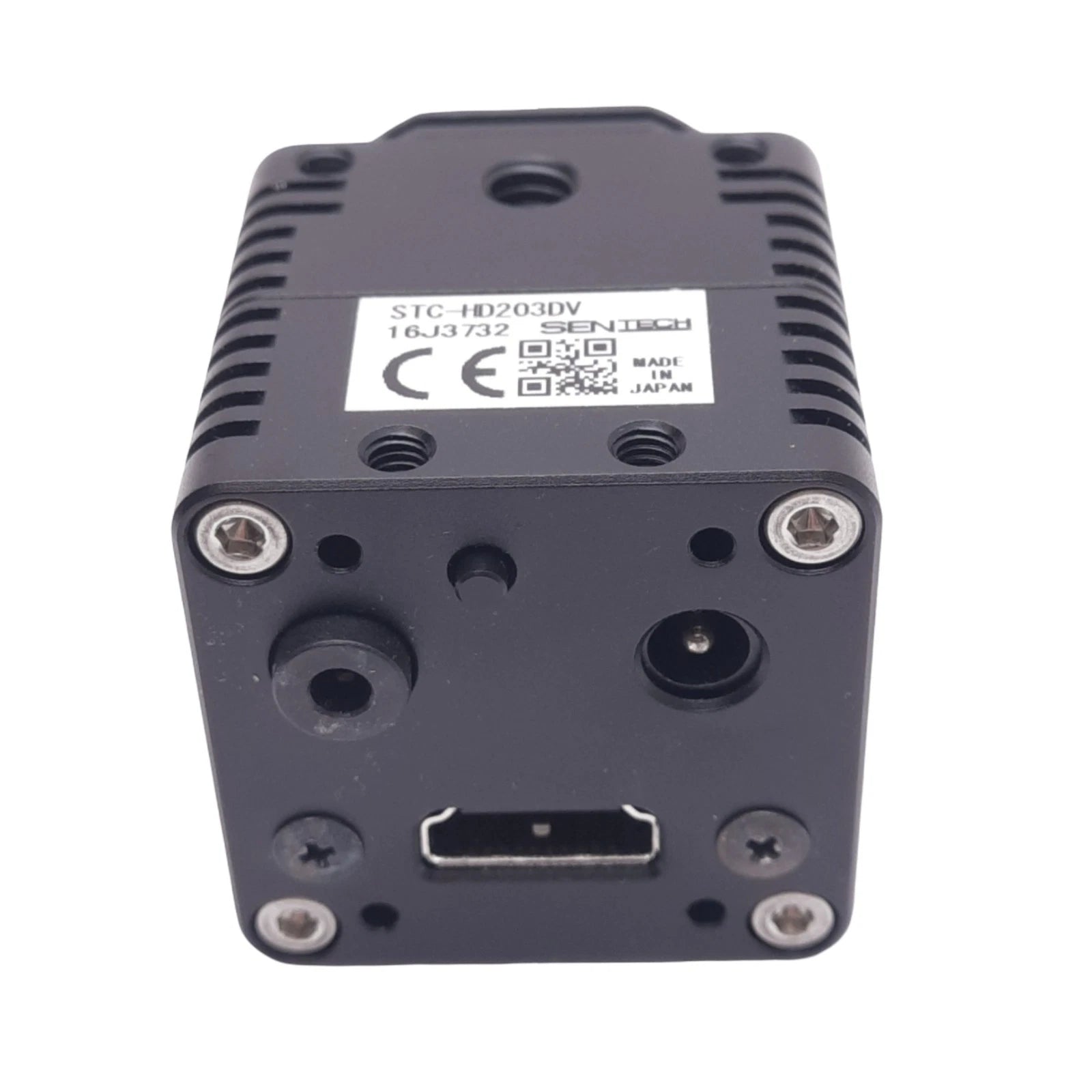

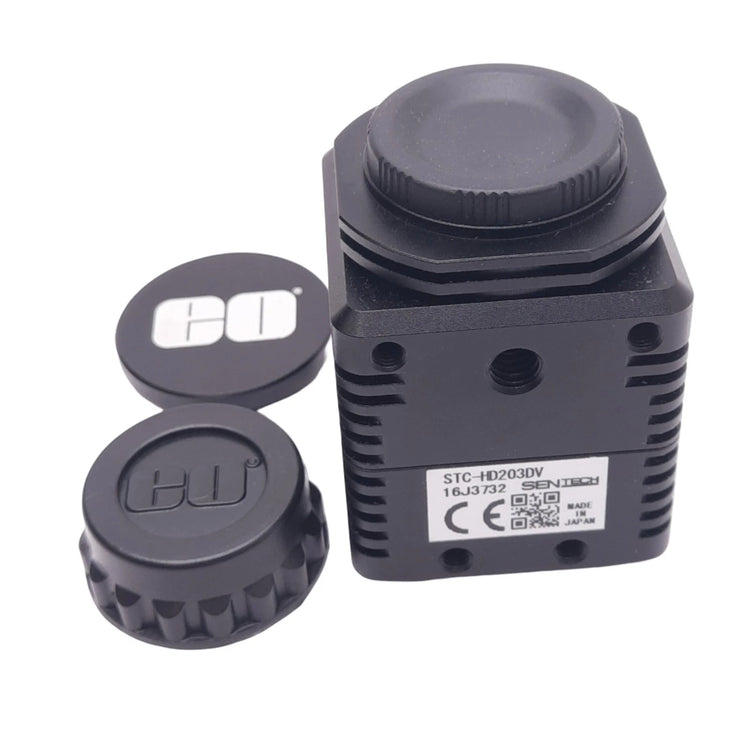

STC-HD203DV | Omron CMOS Sensor True 1080p HD Industrial Camera 12VDC DVI/SDI
- Regular price
- $1,669.00
- Sale price
- $1,669.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: STC-HD203DV
Description
The Omron STC-HD203DV CMOS Sensor Camera is a high-definition industrial imaging device designed for precise visual inspection, monitoring, and image analysis applications. Equipped with a 1/2.8" 2.3-megapixel Sony IMX136 CMOS sensor, it delivers true 1080p progressive scan output with superior image clarity and detail. With both DVI and SDI video output options and robust aluminum housing, it ensures high-performance imaging in demanding industrial and automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Sensors and Transducers |
| Part Number | STC-HD203DV |
| Subcategory | Industrial Cameras |
| Image Sensor | 1/2.8" 2.3-Megapixel CMOS (Sony IMX136) |
| Effective Pixels | 1936(H) × 1096(V) / 1920(H) × 1080(V) Active |
| Optical Size | 5.44 mm × 3.09 mm |
| Pixel Size | 2.8 µm × 2.8 µm |
| Scanning Method | Progressive |
| Video Output (DVI Model) | DVI 1.0 RGB; 1080p60/59.94/50/30/29.97/25, 720p60/59.94/50 |
| Video Output (SDI Model) | 3G-SDI (SMPTE424M) / HD-SDI (SMPTE292M) 10-bit 4:2:2 YCbCr |
| Shutter Speed | 1/10,000 s to 2.55 s (adjustable via UART) |
| Gain Control | AGC or fixed gain, 0–45 dB selectable |
| Gamma Correction | Five presets (manual, 0.45, 0.6, 0.8, 1.0) |
| White Balance | Auto, manual, or push-to-set |
| WDR (Wide Dynamic Range) | ON/OFF selectable via UART |
| Mirror / Flip | Normal, H-flip, V-flip, 180° rotation |
| Communication Interface | 3.5 mm stereo jack, UART (9,600–38,400 bps) |
| Lens Mount | C-Mount (recommended F ≥ 2.0) |
| Optical Filter | IR-cut filter with OPLF |
| Power Supply | +9 to +15 VDC (typ. 12 VDC) |
| Power Consumption | 4.4 W (typical) |
| Housing Material | Aluminum |
| Dimensions (W×H×D) | 40 × 40 × 51.1 mm (excluding connectors) |
| Weight | 116 g (approx.) |
| Operating Temperature Range | 0°C to +40°C |
| Storage Temperature Range | -30°C to +65°C |
| Shock Resistance | 38 G, 6 ms, XYZ 3 directions ×3 |
| Vibration Resistance | 20–200 Hz, 10 G, XYZ 3 directions (30 min each) |
| Compliance | EN61000-6-2 (EMS), EN55022 Class B (EMI) |
| RoHS | Compliant |
Information About STC-HD203DV
The STC-HD203DV belongs to Omron’s STC Series of industrial CMOS cameras, engineered for high-resolution imaging and real-time monitoring. It utilizes a 1/2.8" Sony IMX136 CMOS sensor with 1920×1080 active pixels, providing full HD progressive video output. The camera supports DVI 1.0 and 3G-SDI interfaces for flexible connectivity with monitors and video systems. Featuring adjustable shutter speed, automatic gain control (AGC), white balance, and wide dynamic range (WDR), it provides excellent adaptability to varying lighting conditions. Housed in a compact, lightweight aluminum case with an integrated IR-cut optical filter, the unit is ideal for machine vision, inspection, and embedded imaging applications.
Key Features:
- Full HD CMOS Sensor: 1/2.8" Sony IMX136 sensor delivers 1920×1080 progressive resolution.
- Twin Video Output Options: Supports DVI and 3G-SDI interfaces for versatile system integration.
- Adjustable Shutter and Gain: Configurable via UART for precise exposure and brightness control.
- Wide Dynamic Range (WDR): Enhances visibility in high-contrast lighting environments.
- Integrated IR-Cut Filter: Ensures accurate color reproduction under varied illumination.
- Compact and Durable: Aluminum housing (40×40×51.1 mm) for stable mounting in industrial setups.
- Low Power Consumption: Operates efficiently at 12 VDC, consuming only 4.4 W typical.
- Rugged Performance: Shock-tested to 38 G and vibration-resistant up to 10 G across three axes.
The STC-HD203DV delivers the reliability and precision required for machine vision, inspection, and high-definition industrial imaging applications.
