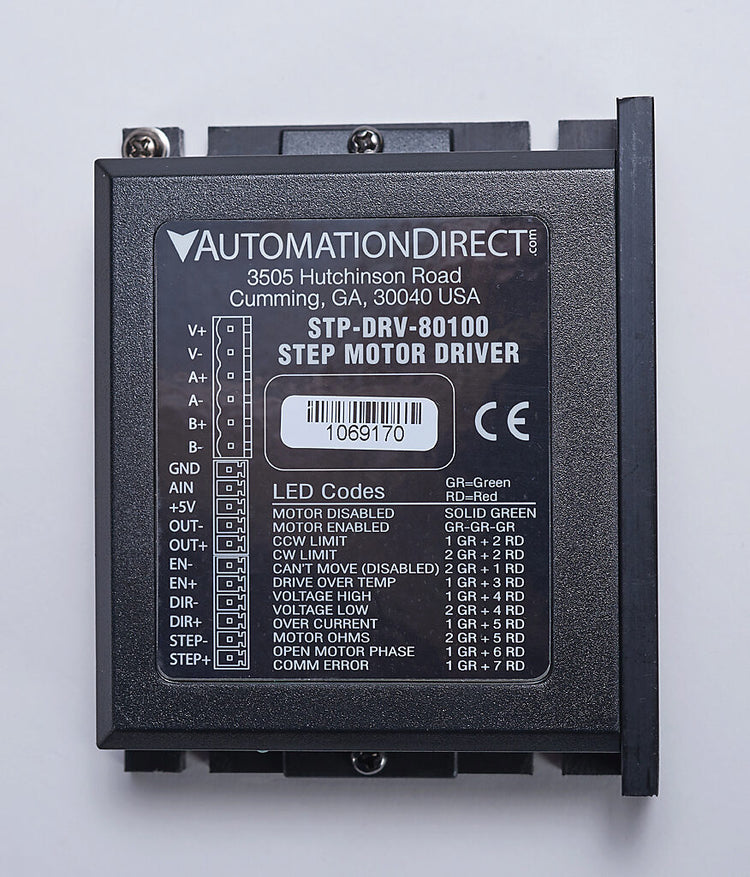

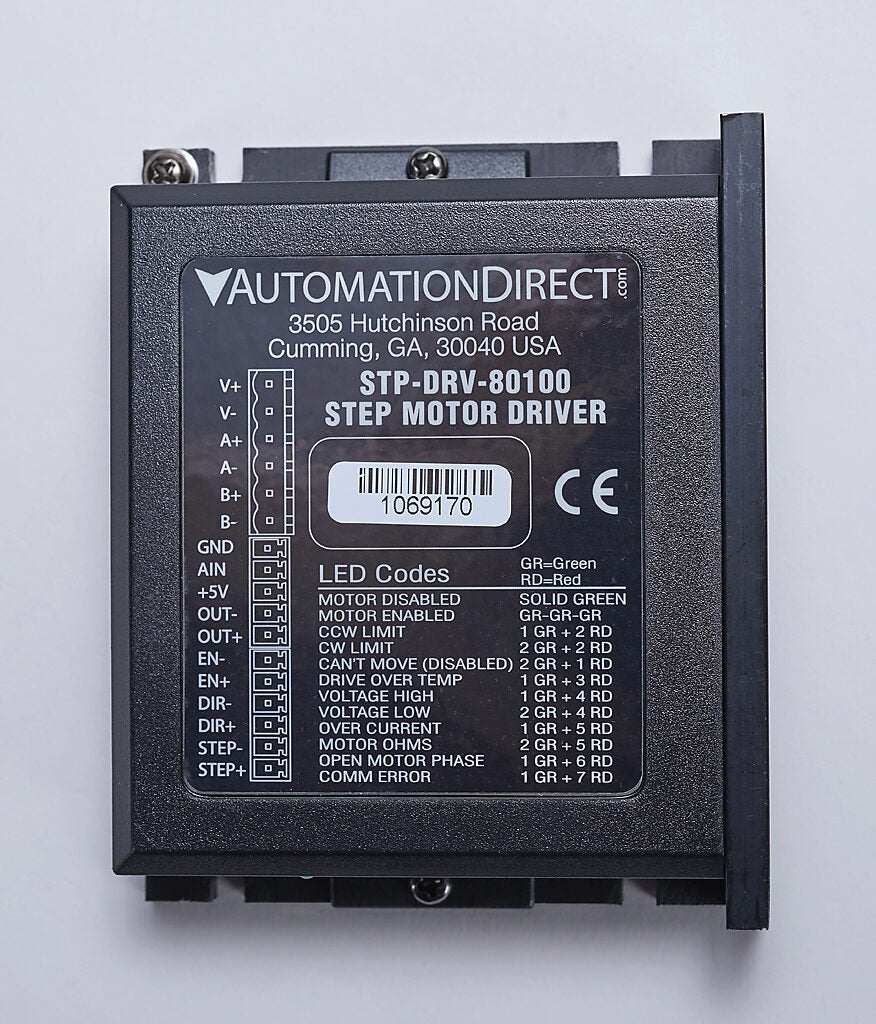

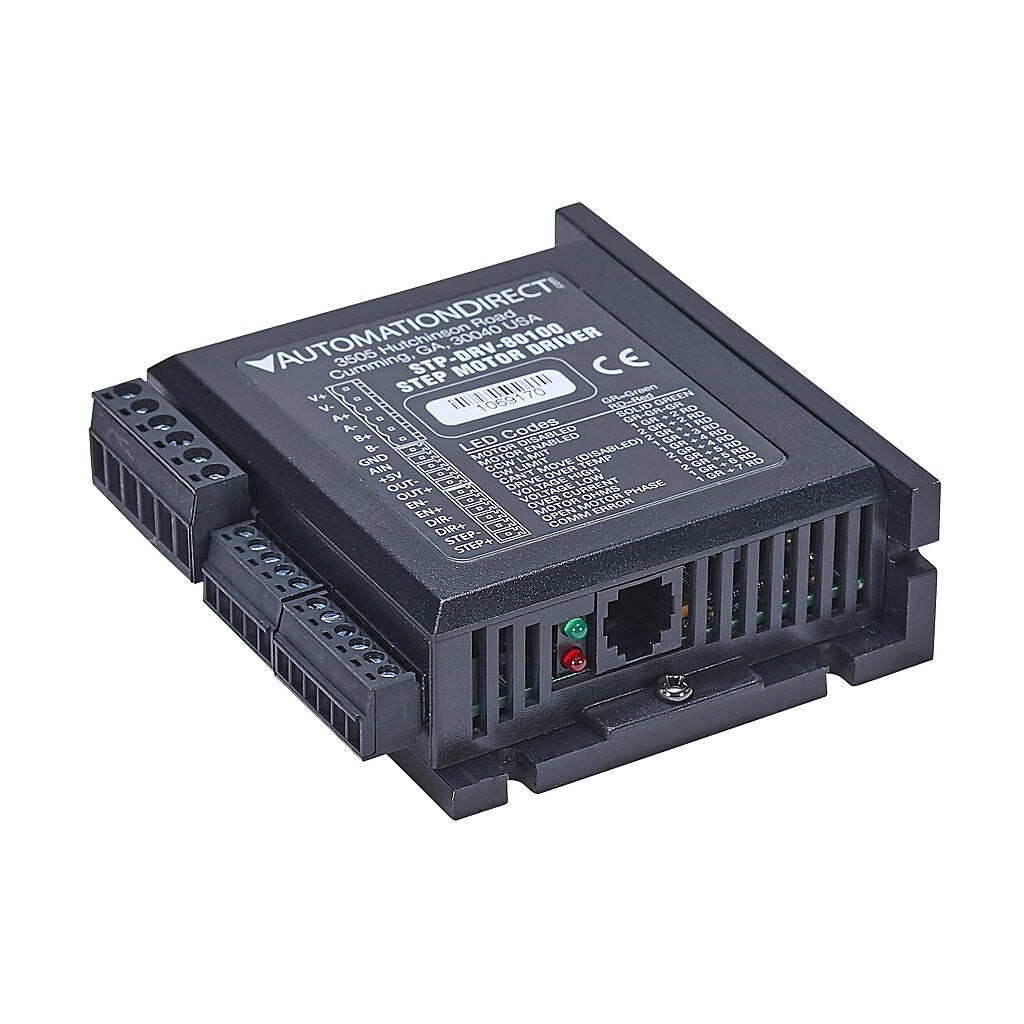

STP-DRV-80100 | Automation Direct SureStep 10A Open Loop Stepper Drive 24–80 VDC
- Regular price
- $662.00
- Sale price
- $662.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: STP-DRV-80100
Description
The Automation Direct STP-DRV-80100 is a SureStep open-loop stepper drive engineered for precise motion control in industrial automation systems. It delivers up to 10A per phase with advanced microstepping capability, supporting smooth positioning and velocity control across a wide input voltage range of 24–80 VDC. Designed for panel-mounted applications, it is suited for demanding motion tasks requiring stable torque and accurate step resolution.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Motion Control |
| Part Number | STP-DRV-80100 |
| Subcategory | Stepper Drives |
| Series | SureStep |
| Stepper Drive Type | Open loop |
| Controller Type | Advanced microstepping |
| Nominal Input Voltage | 24–80 VDC |
| Voltage Type | DC |
| Amperage Rating | 10A per phase |
| Number of Output Phases | 2 |
| Winding Type Control | Bipolar |
| Output Type | MOSFET dual H-bridge, 4-quadrant |
| Current Control | 4-state PWM at 20 kHz |
| Steps per Revolution | 200 to 51,200 |
| Communication Port | (1) RS-232 (RJ11) |
| Port Protocols | SCL, ASCII |
| Port Speed | Up to 115.2k baud |
| Discrete Input Points | 1 |
| Discrete Input Type | Sinking/sourcing/line driver (differential) |
| Discrete Output Points | 1 |
| Discrete Output Type | Sinking/sourcing |
| Analog Input Channels | 1 |
| Analog Input Range | 0–5 VDC |
| Analog Output Channels | 1 |
| Control Mode | Velocity and position |
| Mounting | Panel mount |
| Enclosure Type | Enclosed |
| IP Rating | IP20 |
| Operating Temperature | 0 to 55°C |
| Configuration Method | Software |
| Software Required | SM-PRO configuration software |

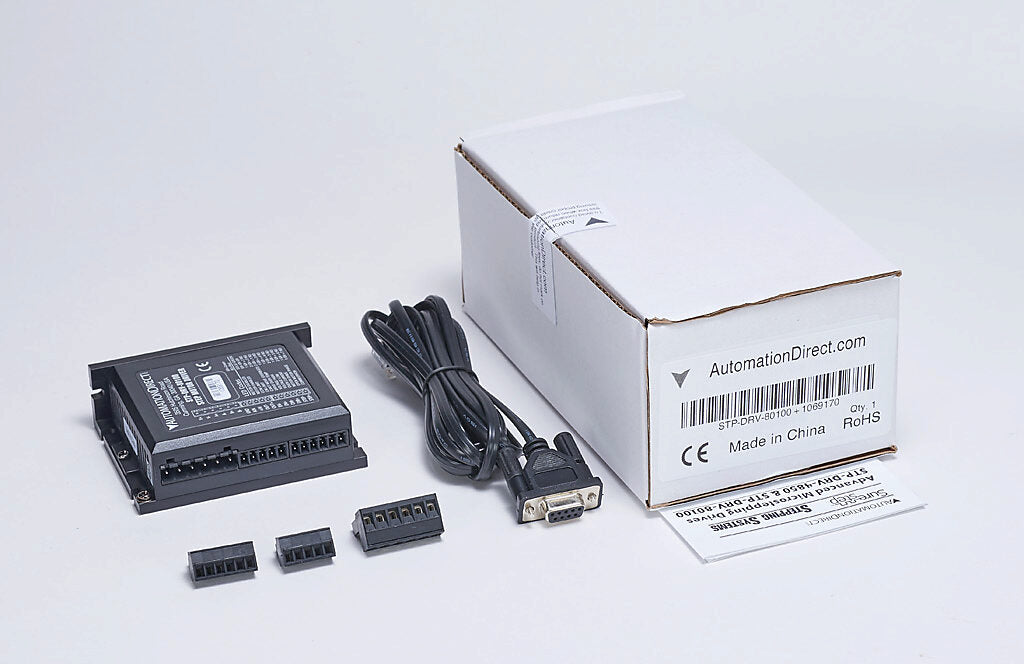

| Included | STP-232RJ11-CBL 10 ft RS-232 programming cable |
| Weight | Approx. 3.5 lb |
Information About STP-DRV-80100
The STP-DRV-80100 is part of the SureStep series of enclosed DC stepper drives engineered for bipolar motor control. It utilizes a dual MOSFET H-bridge, 4-quadrant output stage with 4-state PWM current regulation at 20 kHz to optimize torque and efficiency. The drive supports multiple command interfaces including step and direction, CW/CCW, A/B quadrature, internal indexing through the communication port, and analog velocity control. Configuration and tuning are performed using SM-PRO software via the integrated RS-232 RJ11 port, allowing parameter adjustment and diagnostics for industrial environments.
Key Features:
- High Current Output: Provides up to 10A per phase for demanding stepper motor applications.
- Wide DC Input Range: Operates from 24 to 80 VDC for flexible system integration.
- Advanced Microstepping: Adjustable from 200 to 51,200 steps per revolution for precise positioning.
- Multiple Command Modes: Supports step and direction, CW/CCW, A/B quadrature, analog velocity, and internal indexing.
- RS-232 Communication Port: RJ11 interface supporting SCL and ASCII protocols up to 115.2k baud.
- Integrated Protection: Includes overvoltage, undervoltage, short circuit, and over-temperature safeguards.
- Performance Enhancements: Features anti-resonance damping, torque ripple smoothing, and command signal filtering.
- Idle Current Reduction: Automatically reduces motor current at standstill to minimize heat generation.
The STP-DRV-80100 delivers the reliability and precision required for industrial motion control, positioning systems, and automated machinery.
