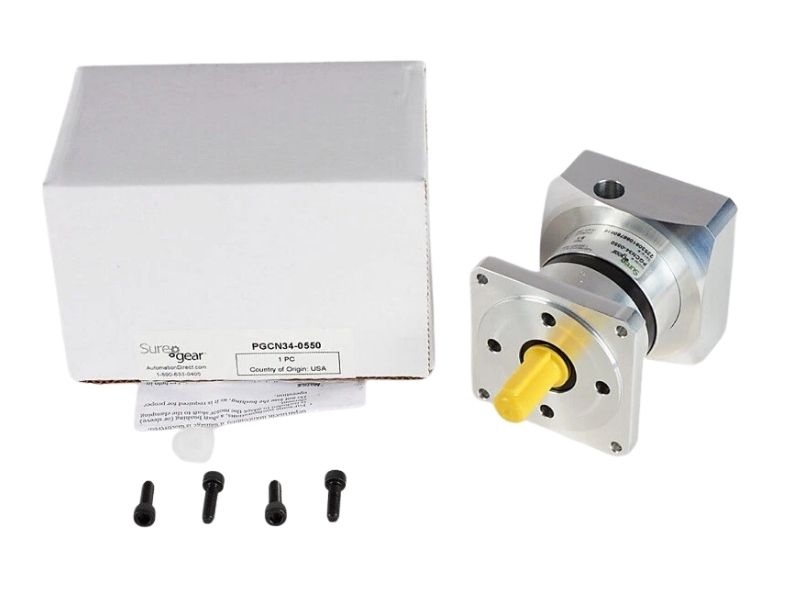

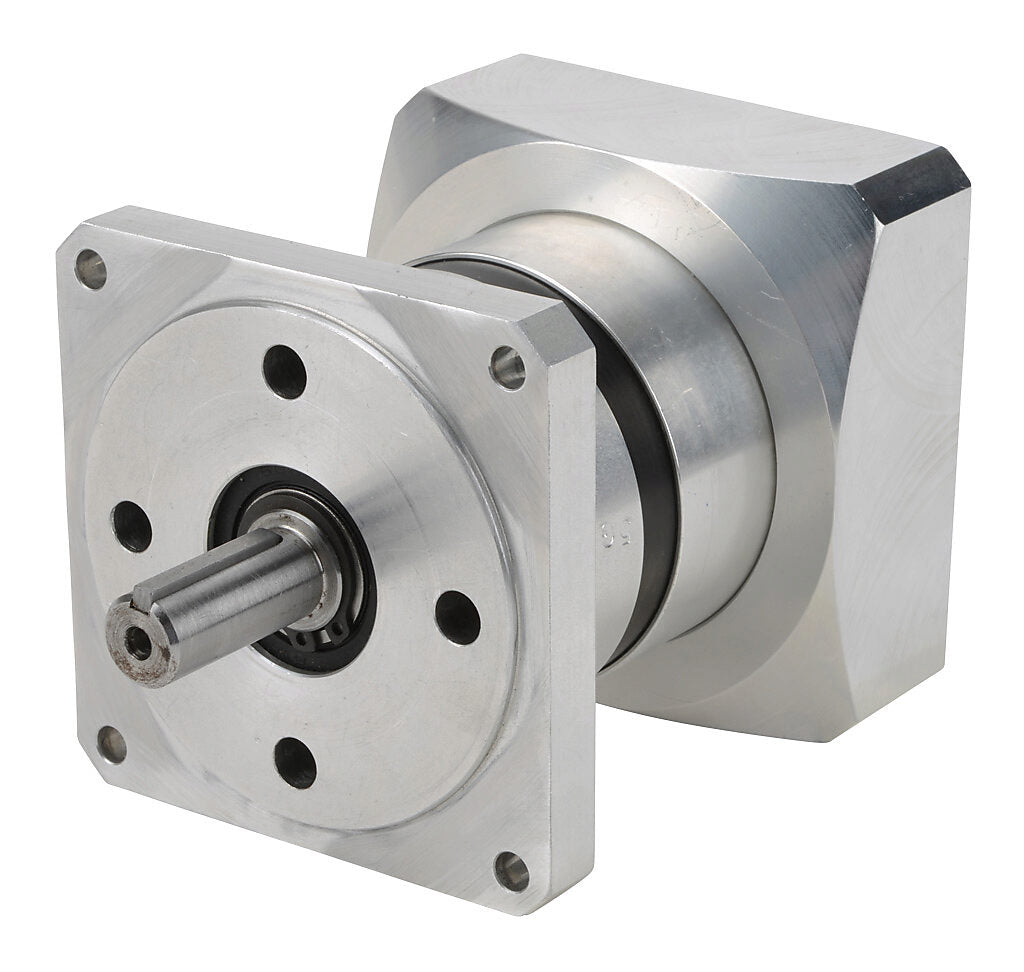

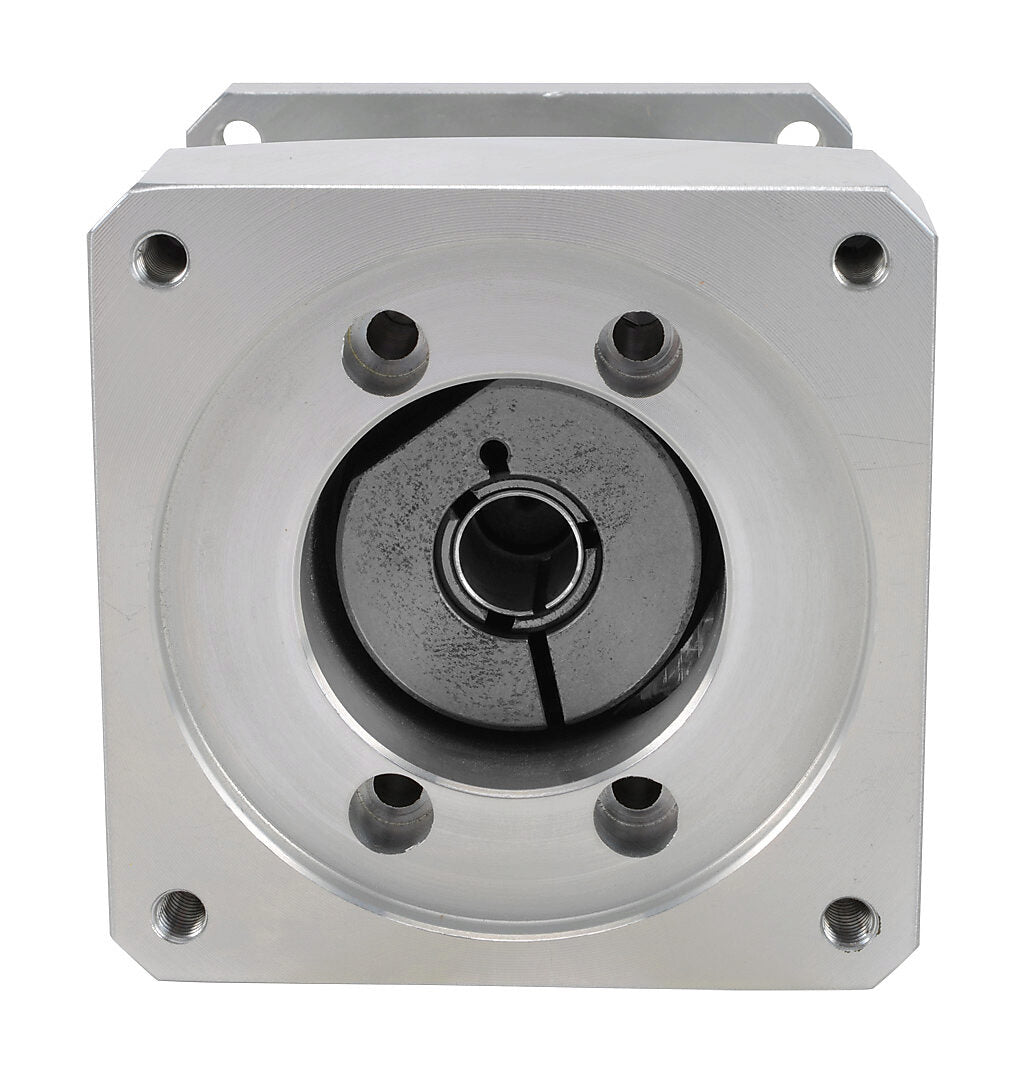

PGCN34-0550 | SureGear Precision Planetary Gearbox 5:1 Ratio NEMA 34 Inline Gear Reducer
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PGCN34-0550
Description
The SureGear PGCN34-0550 is a precision planetary gearbox designed for motion control systems requiring accurate torque transmission and speed reduction. Manufactured by SureGear, this gearbox features a 5:1 reduction ratio and an inline output configuration for compact mechanical integration. It is engineered for use with NEMA 34 stepper motors in industrial automation and precision positioning applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SureGear |
| Category | Motors/GearBox/Clutch |
| Part Number | PGCN34-0550 |
| Subcategory | Gearbox |
| Gearbox Type | Planetary |
| Gear Ratio | 5:1 |
| Output Configuration | Inline |
| Number of Stages | 1 |
| Frame Size | NEMA 34 |
| Output Shaft Diameter | 0.5 in |
| Nominal Output Torque | 26 Nm (230 lb-in) |
| Nominal Speed | 3500 RPM |
| Maximum Speed | 6000 RPM |
| Motor Compatibility | SureStep NEMA 34 Motors |
| Included Accessories | Adapter bushing, mounting hardware, output shaft key |
| Weight | 3.00 lbs |
Information About PGCN34-0550
The PGCN34-0550 is a planetary gearbox from the SureGear precision motion product line developed for high-accuracy motion control systems. It utilizes a single-stage planetary gear set to provide a 5:1 reduction ratio while maintaining efficient torque transfer and low backlash characteristics. The gearbox is designed for compatibility with SureStep NEMA 34 motors and includes mounting hardware and an adapter bushing for a 1/2-inch motor shaft. Its inline shaft configuration simplifies installation in automation systems where compact alignment with motors and driven equipment is required.
Key Features:
-
Planetary Gear Design: Provides efficient torque transmission and smooth rotational motion.
-
5:1 Gear Reduction Ratio: Reduces motor speed while increasing available output torque.
-
Inline Output Configuration: Allows direct alignment with motors and driven equipment.
-
NEMA 34 Frame Compatibility: Designed specifically for SureStep NEMA 34 stepper motors.
-
0.5 Inch Output Shaft: Standard shaft diameter for integration with common mechanical couplings.
-
Single Stage Gearbox: Compact construction with reduced mechanical complexity.
-
High Nominal Output Torque: Rated at 26 Nm (230 lb-in) for demanding motion control tasks.
-
Included Mounting Hardware: Comes with input adapter bushing, mounting hardware, and output shaft key.
The PGCN34-0550 delivers the reliability and precision required for motion control and positioning systems in industrial automation equipment.
