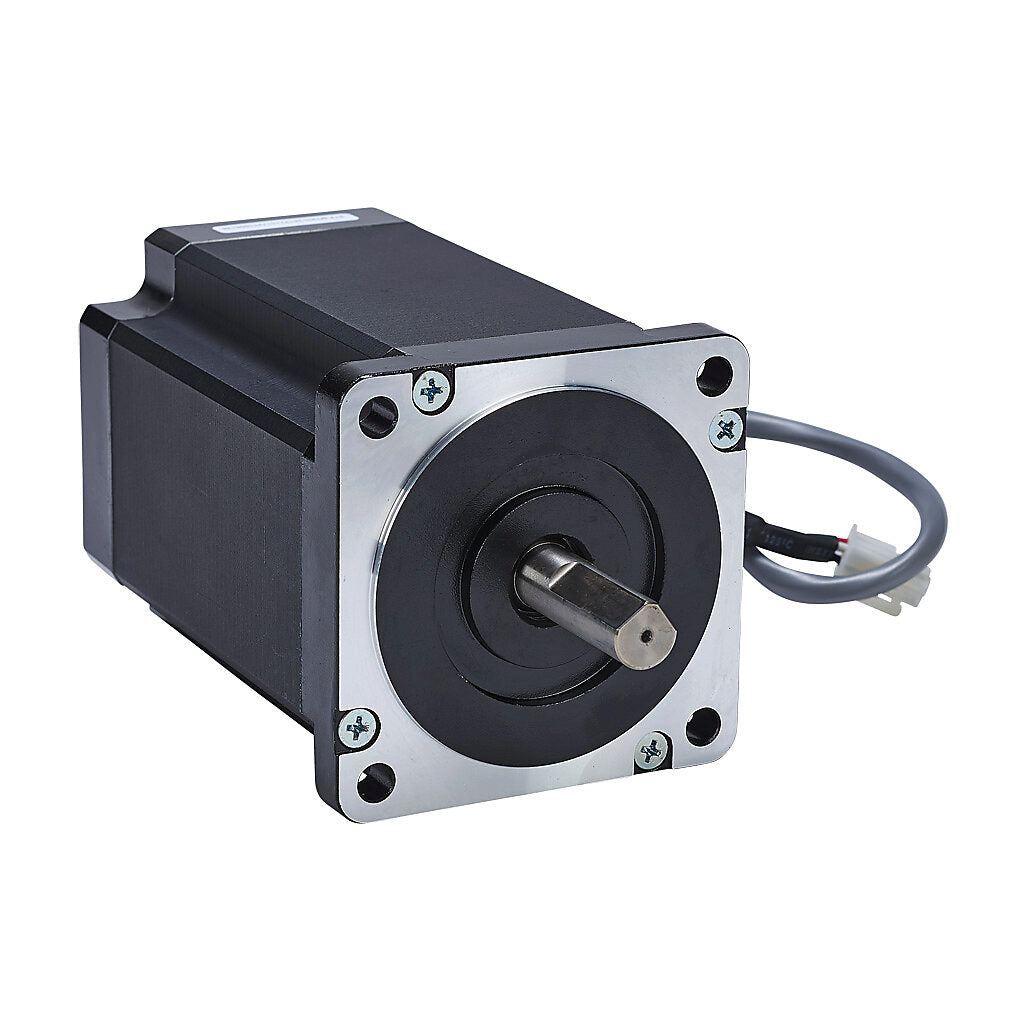

STP-MTRH-34127 | SureStep NEMA 34 DC Brushless Stepper Motor 1288 oz-in 6.3A
- Regular price
- $274.00
- Sale price
- $274.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: STP-MTRH-34127
Description
The SureStep STP-MTRH-34127 is a NEMA 34 DC brushless stepper motor designed for high-torque positioning and motion control applications. It delivers 1288 oz-in holding torque at 6.3A per phase with a 1.8° step angle for accurate incremental movement. This motor is suited for industrial automation systems requiring reliable, repeatable rotary motion.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SureStep |
| Category | Servo Products |
| Part Number | STP-MTRH-34127 |
| Subcategory | Stepper Motor |
| Motor Type | Brushless Stepper Motor |
| Voltage Type | DC |
| Number of Phases | 2 |
| Frame Size | NEMA 34 |
| Holding Torque | 1288 oz-in |
| Current Rating | 6.3 A per phase |
| Step Angle | 1.8° per full step |
| Steps per Revolution | 200 |
| Winding Type | Bipolar |
| Shaft Type | Single |
| Shaft Diameter | 1/2 in |
| IP Rating | IP40 |
| Connector Type | 4-position male |
| Cable Length | 1 ft (12 in) |
| Required Cable | STP-EXTH-xxx |
| Weight | 9.46 lbs |
Information About STP-MTRH-34127
The STP-MTRH-34127 is a high-performance two-phase bipolar stepper motor built within a NEMA 34 frame for demanding motion control environments. It features a single 1/2-inch diameter shaft and operates using DC input with a brushless design to ensure consistent torque output and reduced maintenance requirements. With an IP40 rating, it is intended for installation inside control panels or protected enclosures where exposure to contaminants is limited. The motor includes a 1-foot cable with a 4-position male connector and requires an STP-EXTH-xxx extension cable for proper system integration.
Key Features:
-
NEMA 34 Frame Size: Standardized mounting dimensions for compatibility with industrial motion systems.
-
High Holding Torque: Provides 1288 oz-in torque for strong load retention during stationary positioning.
-
6.3A Per Phase Rating: Supports demanding drive requirements for consistent torque output.
-
1.8° Step Angle: Enables precise incremental movement with 200 steps per revolution.
-
Two-Phase Bipolar Winding: Ensures efficient current control and optimized torque performance.
-
Single 1/2-Inch Shaft: Suitable for direct coupling to mechanical loads and drive assemblies.
-
IP40 Protection Rating: Designed for use in clean, enclosed industrial environments.
-
Pre-Attached 12-Inch Cable: Includes 4-position male connector for simplified wiring integration.
The STP-MTRH-34127 delivers the reliability and precision required for industrial positioning, indexing, and automated motion control systems.
