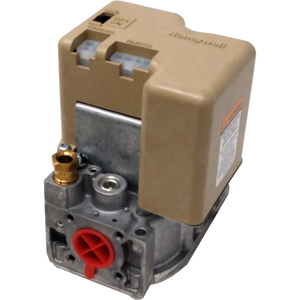

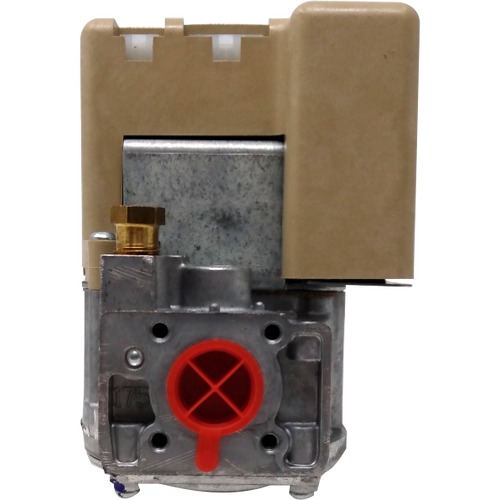

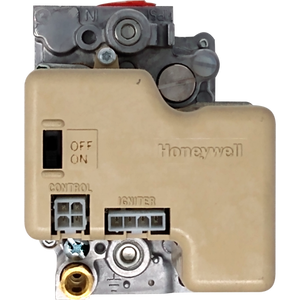

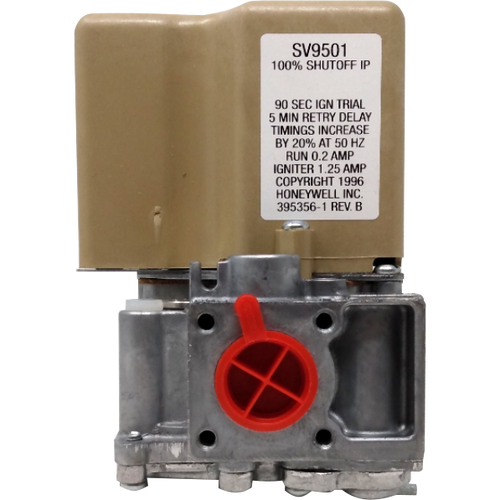

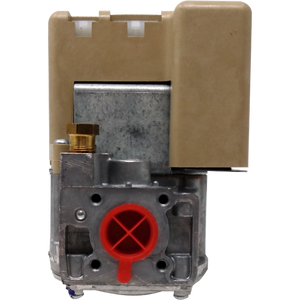

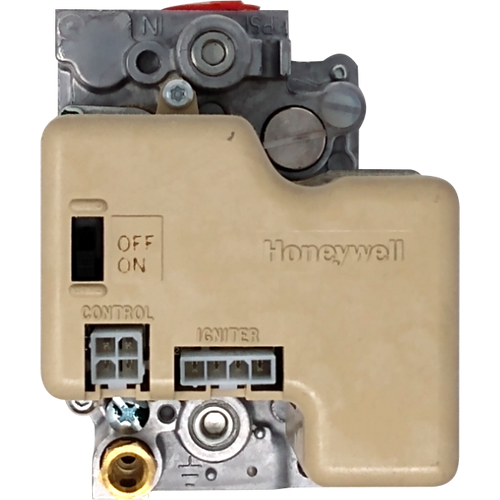

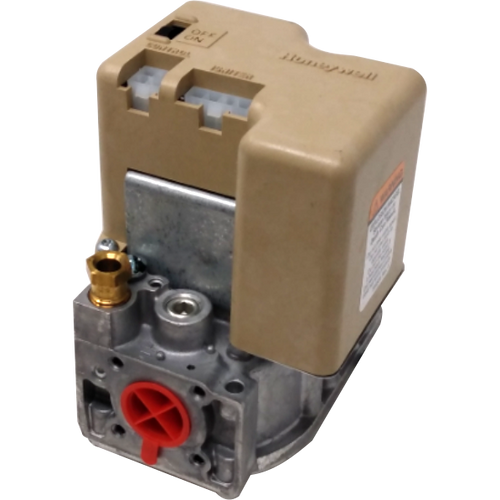

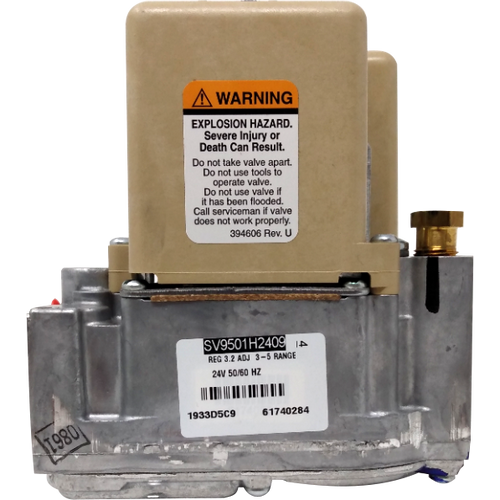

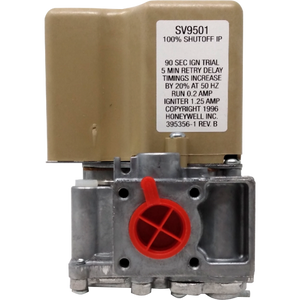

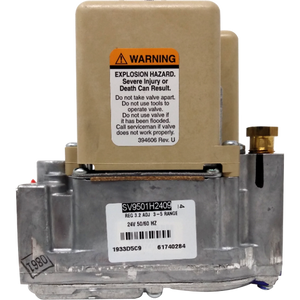

SV9501H2409 | Honeywell Smart Gas Valve 24 VAC
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SV9501H2409
Description
The Honeywell SV9501H2409 is a smart gas valve and ignition system designed for furnaces, combining gas flow control with integrated ignition sequencing. Operating at 24 VAC, it supports a 90-second ignition period and precise natural gas regulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Gas Flow Control |
| Part Number | SV9501H2409 |
| Subcategory | Smart Gas Valve |
| Function | Gas regulation and ignition control |
| Fuel Type | Natural gas |
| Outlet Pressure | 3.2" WC |
| Connection Size | 1/2 inch |
| Control Voltage | 24 VAC |
| Ignition Trial Time | 90 seconds |
| Construction | Integrated valve and ignition assembly |
| Application | Residential and light commercial furnaces |
| Operation Type | Smart valve with coordinated ignition |
| Weight | 1.71 lbs |
Information About SV9501H2409
The SV9501H2409 is part of Honeywell’s smart gas valve series, which integrates both gas control and direct ignition functionality into a single compact unit. It is designed for use with natural gas, featuring a 3.2" water column outlet pressure and a 1/2-inch connection size. The 24 VAC-powered control module handles all aspects of ignition timing, trial for ignition, and gas flow regulation, streamlining furnace operation and enhancing system reliability. Built with robust mechanical and electrical components, it ensures consistent ignition performance and safe, dependable fuel delivery in residential and light commercial heating applications.
Key Features:
-
Integrated valve and ignition control: Combines gas regulation and ignition sequencing into a single unit for simplified installation and servicing.
-
Natural gas compatibility: Factory-set for natural gas applications with 3.2" WC outlet pressure for precise fuel delivery.
-
Standard connection size: 1/2-inch inlet and outlet connections ensure compatibility with common furnace piping setups.
-
24 VAC control operation: Powered by standard furnace control voltage for consistent ignition and valve actuation.
-
Timed ignition sequence: Includes a 90-second trial for ignition, enhancing safety and operational reliability.
-
Smart valve design: Coordinates ignition and gas delivery to improve combustion efficiency and reduce system complexity.
-
Durable construction: Built to withstand repeated ignition cycles and the demands of long-term heating system operation.
-
Application versatility: Suitable for a wide range of residential and light commercial furnace models.
The SV9501H2409 delivers the reliability, safety, and efficiency needed for dependable furnace ignition and gas flow control in heating systems.
