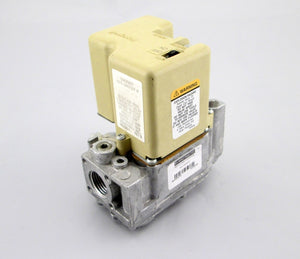

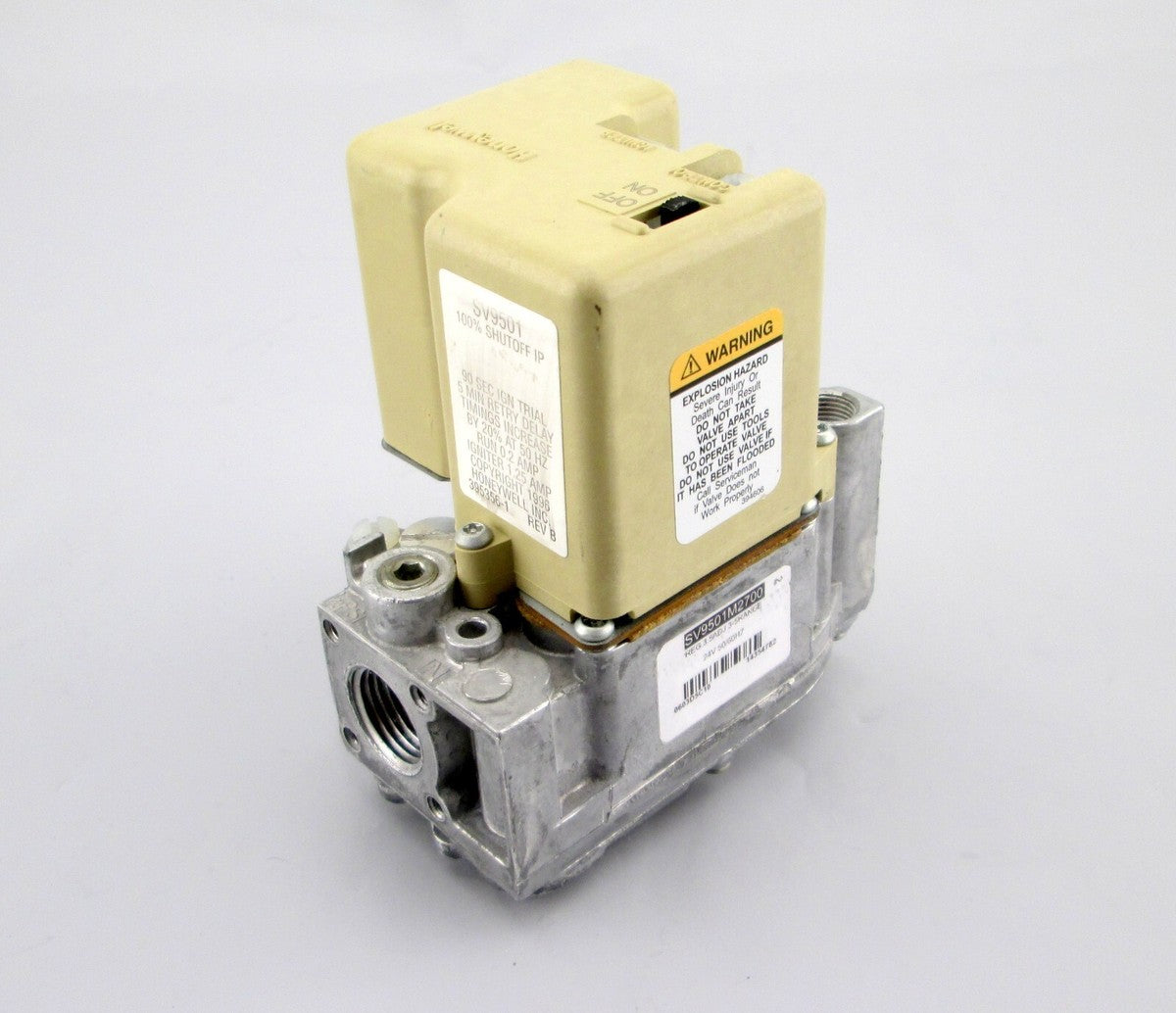

SV9501M2700 | Honeywell SmartValve Integrated Gas Control for Furnaces & Boilers (24VAC)
- Regular price
- $462.00
- Sale price
- $462.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: SV9501M2700
Description
The Honeywell SV9501M2700 SmartValve is an integrated gas control system combining automatic gas flow regulation and electronic ignition sequencing. It provides precise burner control and reliable operation for furnaces, boilers, and other gas-fired heating appliances.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | SV9501M2700 |
| Subcategory | HVAC Accessory & Rebuild Kit & Seal Kit |
| Type | SmartValve Integrated Gas Control |
| Gas Type | Natural Gas or LP (Propane) |
| Ignition Type | Intermittent Hot-Surface Pilot Ignition |
| Operation | Standard Opening |
| Control Voltage | 24 VAC, 50/60 Hz |
| Current Draw | 0.2 A nominal |
| Flame Sensing | Flame rectification (microamp feedback) |
| Gas Flow Capacity | 150,000 BTU/hr (approx., dependent on appliance) |
| Pressure Range | 0–1/2 psi inlet; 3.5 in. w.c. nominal outlet |
| Safety Shutoff | Automatic dual-seat valve mechanism |
| Mounting Orientation | Horizontal or vertical within 0–90° of upright |
| Electrical Connection | Quick-connect terminals |
| Ambient Temperature | –40°F to +175°F (–40°C to +80°C) |
| Applications | Furnaces, rooftop units, boilers, water heaters, unit heaters, ovens |
| Compliance | CSA Certified, ANSI Z21.78/CSA 6.20 |
| Dimensions | Approx. 5.2" × 4.5" × 3.8" |
| Weight | 1.75 lbs |
Information About SV9501M2700
The SV9501M2700 is part of Honeywell’s SmartValve System series — a family of intelligent gas controls that combine gas valve operation with intermittent pilot ignition sequencing in one compact assembly. This standard-opening model is compatible with single-stage natural gas or LP systems. It provides 24 VAC control inputs, automatic pilot operation, and electronic flame rectification for safety. Designed for high efficiency and reliability, it eliminates the need for separate ignition modules, simplifying installation and system wiring. The SmartValve communicates with electronic thermostats or appliance control boards to manage all ignition, safety, and heating sequences.
Key Features:
- Integrated Control Design: Combines gas valve and intermittent pilot ignition in a single unit.
- Smart Ignition Sequencing: Provides automatic hot-surface ignition for reliable flame establishment.
- Standard Opening Configuration: Suitable for most single-stage residential and light commercial heating systems.
- Dual Gas Compatibility: Operates with natural gas or propane (LP) systems.
- Safe Operation: Built-in flame rectification ensures proper ignition verification and safety shutoff.
- 24 VAC Control Voltage: Compatible with standard HVAC control circuits.
- Compact Assembly: Reduces wiring complexity and simplifies service installation.
- Versatile Mounting: Horizontal or vertical mounting options with standard inlet/outlet alignment.
- Diagnostic Capability: Self-monitoring ignition control provides feedback for system troubleshooting.
- Field Proven Reliability: Used in furnaces, boilers, rooftop units, and commercial cooking equipment.
The SV9501M2700 delivers efficient, safe, and simplified control for modern gas heating systems requiring integrated ignition and valve sequencing.
