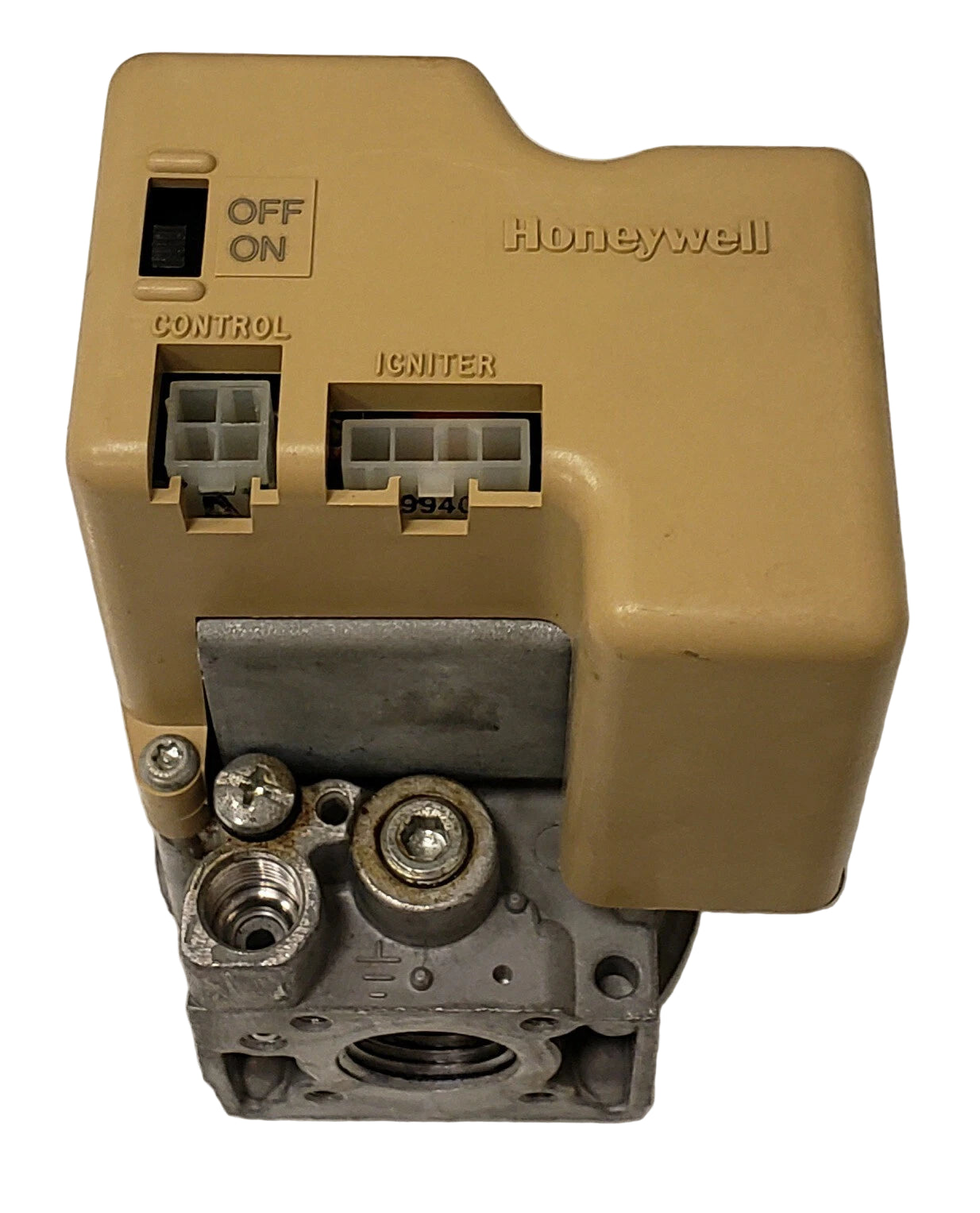

SV9501M2726 | Honeywell 24 V Smart Gas Valve ½″ NPT Intermittent Pilot
- Regular price
- $474.00
- Sale price
- $474.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: SV9501M2726
Description
The Honeywell SV9501M2726 is a 24 V AC intermittent-pilot SmartValve® gas control designed for use with hot surface or pilot ignition systems. It features ½″ NPT inlet and outlet ports, integrating ignition sequencing and gas flow control into one compact unit. This model provides reliable ignition and safe gas regulation for furnaces, boilers, and other gas-fired heating appliances.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | SV9501M2726 |
| Subcategory | Smart Gas Valve |
| Control Voltage | 24 V AC (50/60 Hz) |
| Inlet/Outlet Connection | ½″ NPT female inlet, ½″ NPT female outlet |
| Ignition Type | Intermittent hot surface or pilot ignition |
| Compatible Pilot Burner | Q3450 or Q3480 intermittent pilot burners |
| Application Types | Furnaces, boilers, rooftop units, unit heaters, cooking appliances |
| Manual Shut-Off | Built-in manual gas shut-off lever |
| Ambient Temperature Range | –40 °F to +175 °F |
| Replacement Models | Replaces SV9501M2056, SV9501M2528, SV9501M2700, and others |
| Operating Function | Ignition sequencing and gas flow regulation |
| Power Source | 24 V AC control circuit |
| Valve Body Material | Die-cast aluminum |
| Mounting Orientation | Any position |
| Weight | 1.9 lbs |
Information About SV9501M2726
The SV9501M2726 is part of Honeywell’s SmartValve® series of integrated gas control valves designed for modern gas-fired heating systems. It combines pilot ignition, flame sensing, and main gas valve control within a single, self-contained module. Operating on 24 V AC, the valve simplifies installation and maintenance by eliminating multiple separate components. The heavy-duty construction, broad compatibility, and reliable performance make it ideal for both OEM and replacement applications in furnaces, boilers, and unit heaters.
Key Features:
- Integrated Control Design: Combines gas regulation, ignition sequencing, and flame sensing in one module.
- 24 V AC Operation: Works seamlessly with standard low-voltage furnace control systems.
- ½″ NPT Connections: Standard inlet and outlet fittings simplify retrofit installation.
- Intermittent Hot Surface Pilot Ignition: Ignites only during operation, improving energy efficiency and reducing pilot gas usage.
- Direct Replacement Capability: Fully interchangeable with previous SmartValve models such as SV9501M2056 and SV9501M2528.
- Built-In Manual Shut-Off: Provides safe, convenient gas isolation during servicing or replacement.
- High Temperature Range: Operates reliably from –40 °F to +175 °F in demanding environments.
- Universal Application: Suitable for furnaces, boilers, rooftop units, and commercial cooking appliances.
- Durable OEM-Grade Design: Built for long service life and consistent operation in residential and light commercial systems.
- Proven Safety and Performance: Designed to meet industry standards for ignition safety, reliability, and flame supervision.
The SV9501M2726 delivers the reliability and precision required for safe and efficient gas-fired appliance ignition and control.
