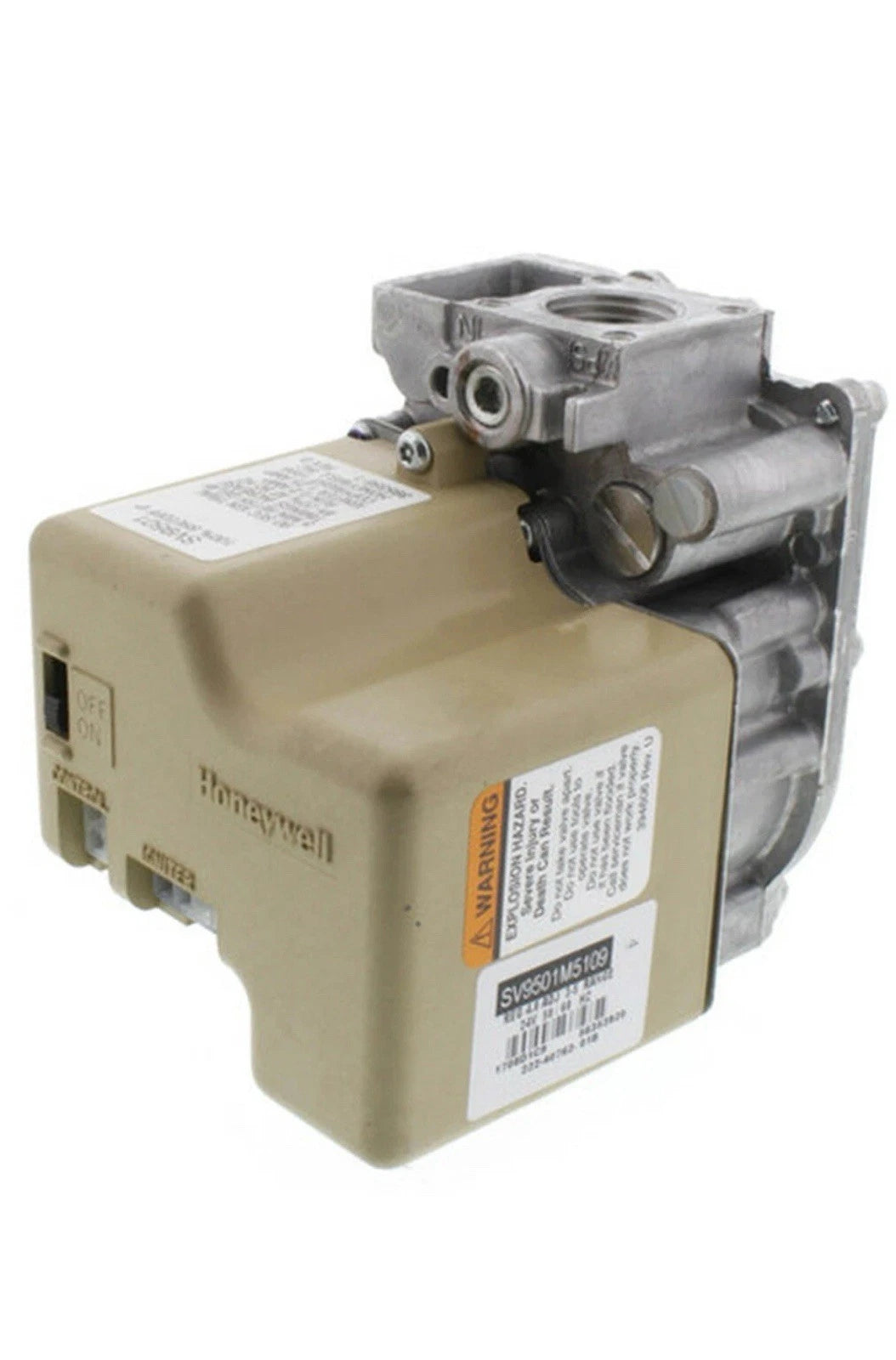

SV9501M5117 | Honeywell Smart Gas Valve Control Module for Furnace Ignition Systems
- Regular price
- $914.00
- Sale price
- $914.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SV9501M5117
Description
The Honeywell SV9501M5117 is an integrated smart gas valve control designed to manage ignition sequencing and gas flow in residential and light commercial heating systems. This Honeywell control combines electronic ignition management with built-in safety supervision to ensure stable and secure burner operation. It is primarily used in gas-fired furnaces and heating appliances requiring precise fuel control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | SV9501M5117 |
| Subcategory | Gas Valve Control Module |
| Series | SV95 |
| Control Voltage | 24 VAC |
| Ignition Type | Hot surface ignition |
| Application | Gas-fired furnaces and heaters |
| Mounting Type | Direct gas valve mounted |
| Fuel Type | Natural gas (system dependent) |
| Safety Functions | Flame sensing and lockout |
| Electrical Interface | Standard HVAC wiring terminals |
| Operating Environment | Indoor HVAC equipment |
| Control Logic | Electronic solid-state |
| Weight | ~1.3 lb |
Information About SV9501M5117
The SV9501M5117 is part of Honeywell’s SV95 series of smart gas valve controls engineered for modern HVAC heating equipment. It features a compact control assembly designed to mount directly to compatible gas valves for streamlined installation. The control interfaces with thermostats, igniters, flame sensors, and pressure switches to coordinate safe ignition and shutdown sequences. Its internal electronic logic supports reliable performance and diagnostics across a wide range of operating conditions.
Key Features:
- Integrated Gas Valve Control: Combines ignition sequencing and gas flow management in one unit.
- SV95 Series Design: Engineered for residential and light commercial gas heating systems.
- Electronic Ignition Management: Supports hot surface ignition systems.
- 24 VAC Control Operation: Compatible with standard low-voltage HVAC control circuits.
- Flame Safety Supervision: Continuously monitors flame presence for safe operation.
- Direct Valve Mounting: Attaches directly to compatible Honeywell gas valves.
- Built-In Diagnostic Logic: Supports fault detection and safe system shutdown.
The SV9501M5117 delivers the reliability and precision required for safe ignition control and consistent gas heating system performance.
