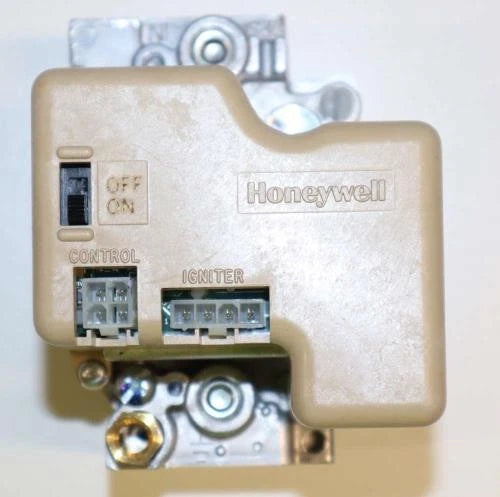

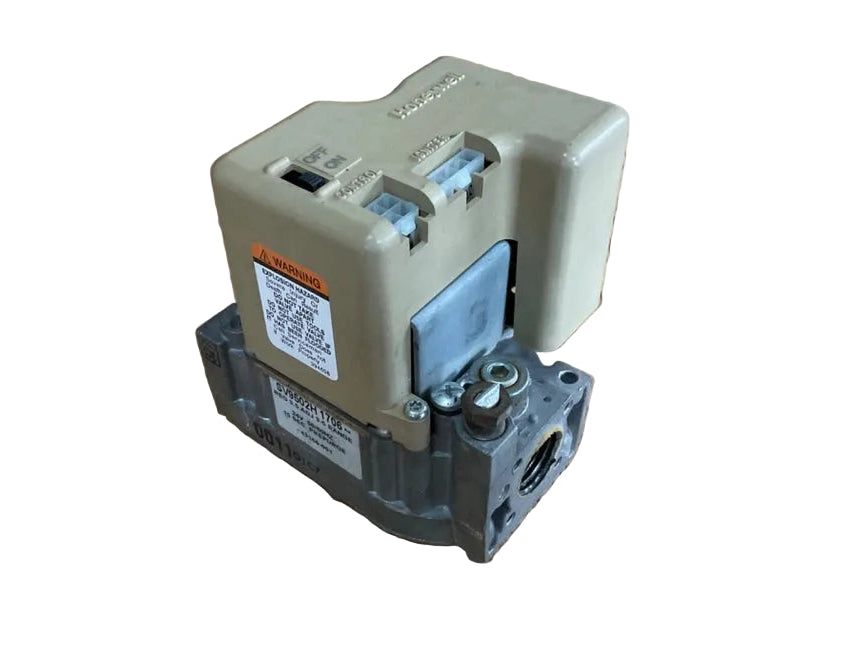

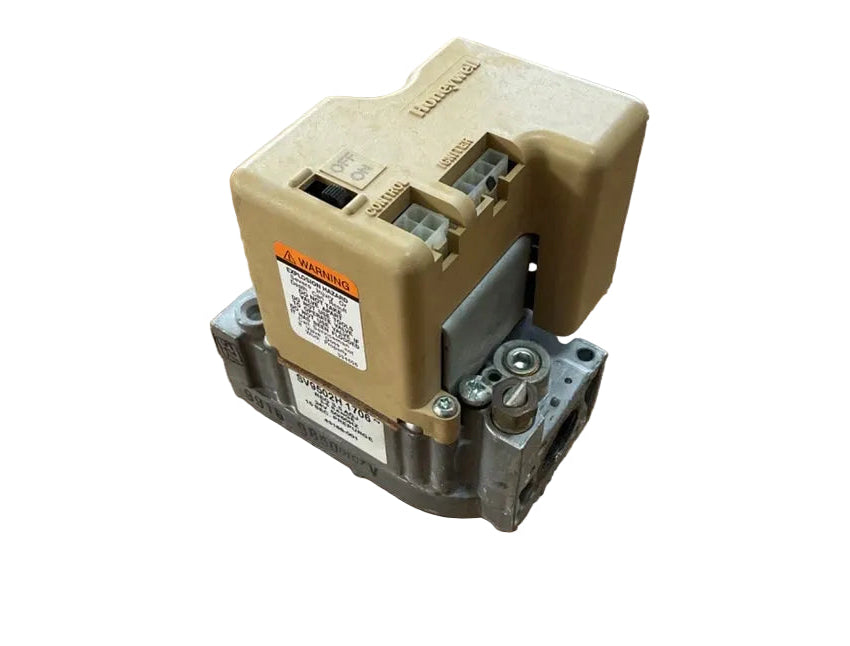

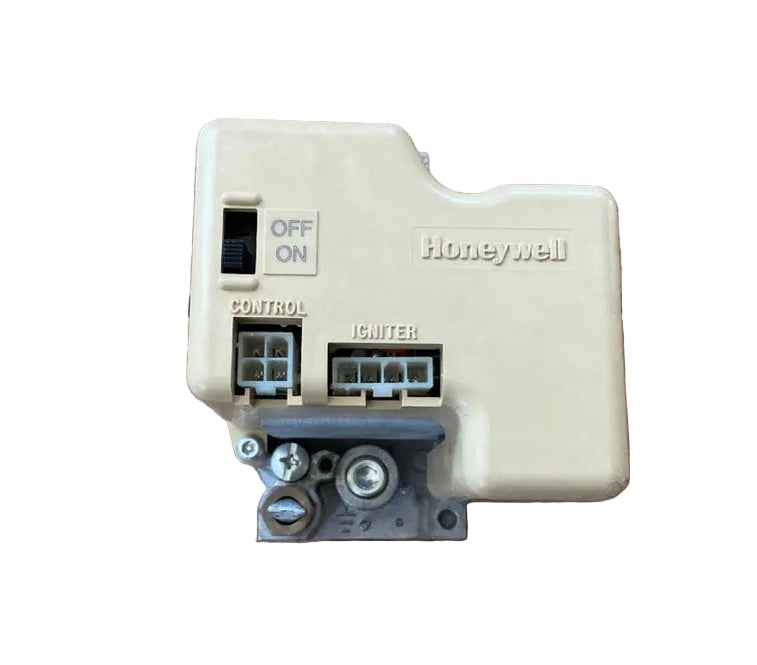

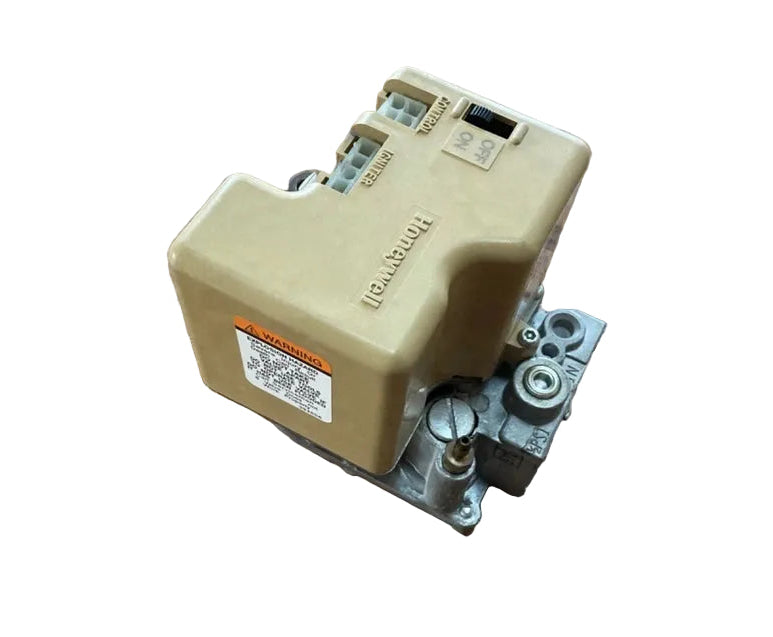

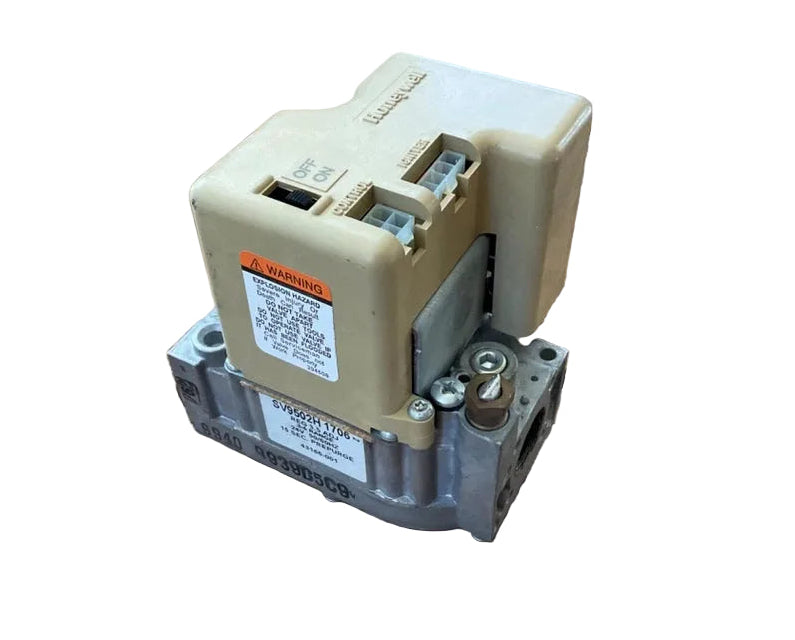

SV9502H1706 | Honeywell SmartValve Slow-Opening 24V Gas Valve (Natural Gas, Intermittent Pilot)
- Regular price
- $434.00
- Sale price
- $434.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: SV9502H1706
Description
The Honeywell SV9502H1706 SmartValve is a 24-volt combination gas valve that integrates ignition control and gas regulation into a single unit. Designed for use in natural gas-fired appliances, it supports intermittent hot-surface pilot ignition and ensures safe, efficient burner operation in furnaces, boilers, and HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | SV9502H1706 |
| Subcategory | HVAC Accessory & Control Valve |
| Type | Integrated SmartValve Gas Control |
| Ignition System | Intermittent Hot-Surface Pilot |
| Gas Type | Natural Gas (convertible to LP with kit) |
| Valve Operation | Slow Opening |
| Control Voltage | 24 VAC, 50/60 Hz |
| Electrical Rating | 0.2 A nominal |
| Inlet/Outlet Size | 1/2" x 1/2" NPT |
| Flow Capacity | Up to 150,000 BTU/hr (approx., appliance dependent) |
| Gas Pressure (Inlet) | 0–1/2 psi (3.5" W.C. nominal outlet) |
| Ignition Source | Internal high-voltage spark generator |
| Flame Sense | Flame rectification (microamp feedback) |
| Safety Mechanism | 100% automatic gas shutoff on flame loss |
| Mounting Orientation | Upright, within 0–90° horizontal plane |
| Operating Temperature | –40°F to +175°F (–40°C to +80°C) |
| Applications | Furnaces, boilers, water heaters, unit heaters |
| Certifications | UL, CSA, ANSI Z21.78/CSA 6.20 compliant |
| Country of Origin | USA |
| Dimensions | Approx. 5.0" × 4.5" × 3.5" |
| Weight | 1.75 lbs |
Information About SV9502H1706
The SV9502H1706 belongs to Honeywell’s SmartValve series — a line of intelligent gas controls that combine electronic ignition sequencing, gas flow regulation, and flame monitoring in one compact housing. This slow-opening model supports natural gas operation with 1/2" x 1/2" NPT inlet and outlet ports and operates at 24 VAC control voltage. It’s compatible with systems using hot-surface or intermittent pilot ignition, providing continuous safety monitoring and automatic gas shutoff if no flame is detected. The SmartValve communicates with furnace or boiler control boards, managing pre-purge, ignition timing, flame sensing, and gas modulation for optimal performance.
Key Features:
- Integrated Gas Control: Combines electronic ignition and gas valve operation in a single assembly.
- Slow-Opening Design: Provides smooth gas flow ramp-up to reduce ignition noise and improve safety.
- Intermittent Hot-Surface Pilot Ignition: Supports both intermittent and hot-surface ignition systems.
- 24 VAC Control Power: Compatible with standard low-voltage HVAC control systems.
- Flame Rectification Safety: Monitors pilot flame and shuts off gas if flame signal is lost.
- Dual Automatic Valves: Features redundant safety valves for fail-safe operation.
- Compact OEM Form Factor: Ideal replacement for original Honeywell SmartValve installations.
- Natural Gas Operation: Factory-set for natural gas; convertible to LP with optional kit.
- Diagnostic Feedback: Provides system status for troubleshooting ignition or flame sensing issues.
- Field Proven Reliability: Designed for residential furnaces, boilers, and commercial gas appliances.
The SV9502H1706 offers precise electronic control and safe, reliable operation for modern HVAC gas systems.
