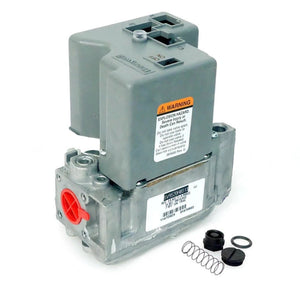

SV9520H8026 | Honeywell Smart Gas Valve
- Regular price
- $410.00
- Sale price
- $410.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SV9520H8026
Description
The Honeywell SV9520H8026 is a direct ignition smart gas valve designed for use in residential and light commercial furnaces. It provides precise gas flow control and integrated safety monitoring within a compact, reliable assembly suitable for automatic ignition systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Heating Components |
| Part Number | SV9520H8026 |
| Subcategory | Smart Gas Valve |
| Type | Direct ignition gas valve |
| Application | Furnace gas control and safety shutoff |
| Operating Temperature Range | 0°F to 175°F (-18°C to 79°C) |
| Control Type | Integrated electronic control for ignition systems |
| Ignition Type | Direct ignition (no standing pilot) |
| Valve Operation | Automatic opening/closing for gas flow regulation |
| Voltage | Typically 24 VAC control circuit (standard for furnace systems) |
| Gas Type | Natural or LP gas (model dependent) |
| Construction | Die-cast aluminum housing with corrosion-resistant finish |
| Mounting Type | Horizontal or vertical with control face accessible |
| Connection Type | Threaded pipe fittings per furnace specifications |
| Certifications | CSA certified for furnace gas control applications |
| Weight | 1.75 lbs |
Information About SV9520H8026
The SV9520H8026 is part of Honeywell’s SmartValve series, combining gas flow control and electronic ignition sequencing into a single integrated unit. Designed for direct ignition furnaces, it eliminates the need for a standing pilot and provides enhanced energy efficiency through electronic flame sensing. The valve automatically controls gas flow based on signals from the furnace control board, ensuring safe startup, combustion monitoring, and reliable shutdown in case of faults. With an operating range from 0°F to 175°F, it performs dependably across a wide range of environmental conditions.
Key Features
- Integrated SmartValve Technology: Combines electronic ignition and gas flow regulation in one compact, self-contained unit.
- Direct Ignition Operation: Designed for modern furnaces using electronic ignition systems without a pilot light, improving energy efficiency.
- Enhanced Safety Monitoring: Includes flame detection and automatic gas shutoff for fail-safe operation during ignition or combustion loss.
- Wide Operating Range: Functions reliably in ambient temperatures from 0°F to 175°F, suitable for diverse furnace environments.
- Compact and Durable Construction: Built with a die-cast aluminum body for long service life and corrosion resistance.
- Standard Control Voltage: Operates from a 24 VAC control circuit common to most HVAC systems for easy integration.
- Versatile Installation Options: Can be mounted horizontally or vertically with accessible service connections.
- Self-Diagnostic Capability: Supports system fault detection and reporting through the furnace control board interface.
The SV9520H8026 delivers the reliability and precision required for safe and efficient furnace gas control, integrating both valve and ignition control functions into a single, advanced design.
