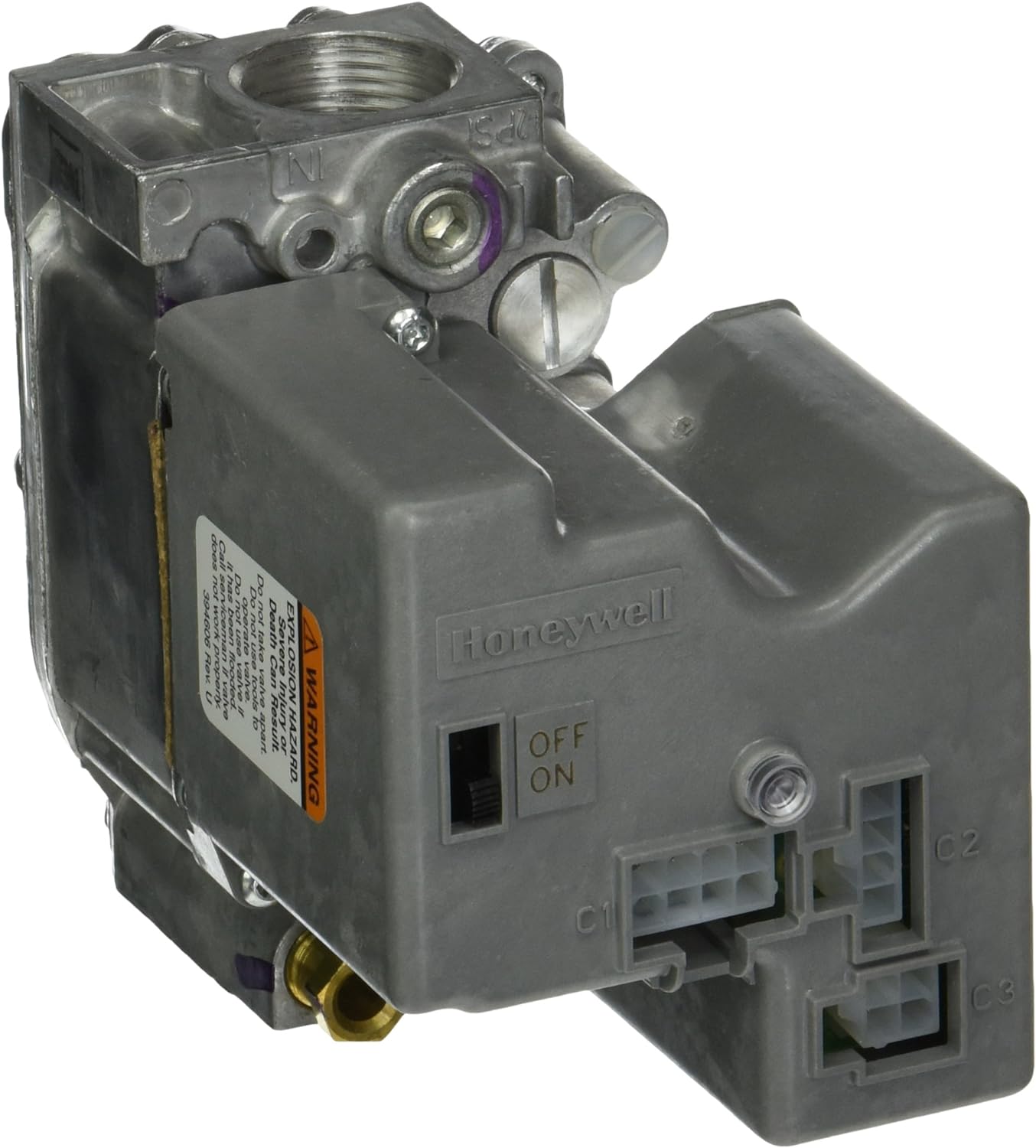

SV9641M4510 | Honeywell SmartValve System Control 24V Natural Gas Valve
- Regular price
- $430.00
- Sale price
- $430.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SV9641M4510
Description
The Honeywell SV9641M4510 SmartValve System Control provides precise gas flow regulation and electronic ignition sequencing for natural gas heating appliances. This integrated control unit combines ignition, flame sensing, and safety supervision in a single compact module, ensuring efficient and reliable system performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | SV9641M4510 |
| Subcategory | Gas Valve System Control |
| Control Voltage | 24 Vac |
| Frequency | 50/60 Hz |
| Type of Gas | Natural Gas |
| Ignition System Type | Intermittent Hot Surface Pilot Ignition |
| Ignition Trial Time | 90 seconds |
| Flame Sense | Two-Rod |
| Flame Failure Response Time | 1.6 sec @ 3 µA |
| Pressure Regulator Setting | 3.5 in. wc (0.87 kPa) |
| Pressure Rating | 1/2 psi (3.5 kPa) |
| Maximum Capacity | 415 ft³/hr (11.8 m³/hr) |
| Minimum Capacity | 30 ft³/hr (0.8 m³/hr) |
| Body Pattern | Straight-through |
| Opening Characteristic | Standard Opening |
| Prepurge Time | 15 seconds |
| Ignition Source | Pilot |
| Mounting Orientation | 0–90° from upright position |
| Pilot Gas Outlet | Yes |
| Dimensions (in.) | 3.2 W × 4.9 H × 4.1 L |
| Dimensions (mm) | 81 W × 124 H × 104 L |
| Weight | 2.00 lbs |
Information About SV9641M4510
The SV9641M4510 is part of Honeywell’s SmartValve series, combining a gas valve and intermittent pilot ignition system into one advanced control assembly. It operates on 24 Vac, handling all key ignition phases including prepurge, pilot lighting, main burner activation, and safety monitoring. The system includes a two-rod flame sensor for precise flame verification and a diagnostic LED for continuous status feedback. Built for dependable performance, this control supports a wide operating temperature range, multiple mounting orientations, and ensures stable combustion in residential or commercial gas-fired heating units.
Key Features:
- Integrated SmartValve Control: Combines electronic ignition control and gas flow regulation into one unified assembly.
- Efficient Ignition Process: Employs intermittent pilot ignition for consistent startup and combustion.
- Flame Detection Accuracy: Dual-rod flame sensing provides rapid detection and safe shutdown on flame loss.
- LED Diagnostic Function: Offers visual indication of operating status and error codes for quick service.
- Stable Gas Regulation: Factory-set at 3.5 in. wc (0.87 kPa) for accurate and steady pressure output.
- Temperature Versatility: Operates reliably from -40°F to +175°F (-40°C to +79°C).
- Flexible Mounting Design: Can be installed at up to 90° angles from upright, including vertical positions.
- High Flow Capacity: Handles up to 415 ft³/hr (11.8 m³/hr), meeting a broad range of heating system demands.
The SV9641M4510 delivers the reliability and precision required for efficient ignition management and safety control in natural gas heating systems.
