SXWMPC36A10001 | Schneider Electric Controller

Description

Technical Specifications

Information About SXWMPC36A10001

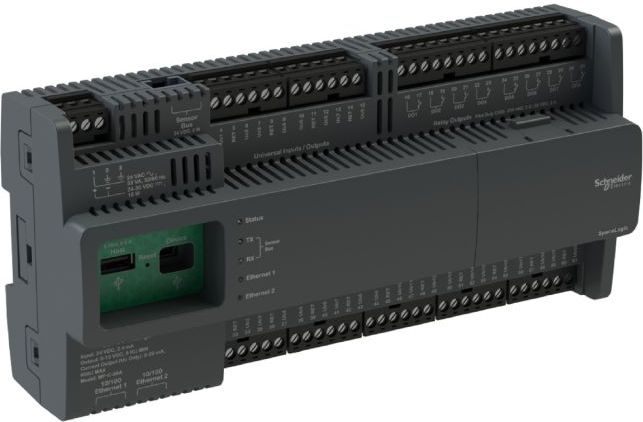

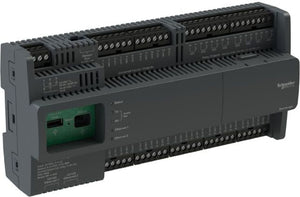

The SXWMPC36A10001 is a machine part controller categorized under Machine Parts, specifically designed to serve as a versatile and reliable control unit within industrial and building automation systems. It belongs to the SpaceLogic IP series, model MP-C, and is built to handle various control tasks efficiently, offering a robust solution for managing inputs and outputs in complex systems. With support for BACnet/IP communication protocol, this controller is engineered to integrate seamlessly into modern IP-based building management and automation networks, providing a flexible and scalable solution for controlling a wide range of devices and sensors.

The controller is equipped with 36 total points, providing ample capacity for handling multiple inputs and outputs in a single device. This high point density allows the SXWMPC36A10001 to manage diverse control tasks within a compact footprint, making it suitable for both new installations and system upgrades. Its ability to manage a variety of inputs and outputs makes it ideal for applications where multiple devices or sensors must be monitored and controlled simultaneously.

One of the key features of the SXWMPC36A10001 is its universal input/output (I/O) capabilities. The controller is equipped with 8 universal inputs/outputs (I/O) classified as Type UC, which are designed to support various input types, such as analog or digital signals. This flexibility allows the controller to interface with a wide range of devices, including sensors, switches, and other field devices that require monitoring or control. The ability to handle multiple signal types in a single module enhances the controller’s versatility, making it an ideal solution for managing diverse automation systems where different device types must be integrated and controlled.

In addition to the universal I/O (Type UC), the controller also features 20 universal inputs/outputs (Type UB). This additional I/O capacity further increases the device’s versatility, allowing for even more inputs and outputs to be connected and managed within a single controller. These universal I/O points can be used for a variety of functions, including monitoring environmental conditions, managing energy usage, or controlling mechanical systems such as HVAC, lighting, or access control. The broad compatibility with different signal types makes the SXWMPC36A10001 a comprehensive solution for building automation and industrial control applications.

The SXWMPC36A10001 is also equipped with 8 Form A relay outputs. These relay outputs provide reliable switching capabilities for controlling devices that require an open/close signal, such as lighting, fans, pumps, or other mechanical equipment. The Form A relays ensure that the controller can manage high-power loads safely and effectively, making it suitable for use in systems where both low-level control signals and high-power switching are required. The relay outputs can be used in conjunction with the universal I/O to provide comprehensive control over a wide range of devices, enhancing the controller’s ability to manage complex systems with ease.

The controller’s use of the BACnet/IP protocol allows for integration into modern building management systems (BMS) and industrial networks that utilize IP-based communication. BACnet/IP is a widely adopted standard for building automation, ensuring interoperability between devices from different manufacturers. The SXWMPC36A10001’s support for this protocol enables it to communicate seamlessly with other BACnet devices, providing a scalable and flexible solution for managing large-scale automation systems. This protocol support ensures that the controller can be integrated into both new and existing BACnet/IP networks, making it an ideal choice for system expansions or upgrades.

The SpaceLogic IP series, to which the SXWMPC36A10001 belongs, is designed for reliability and ease of use in demanding environments. The controller’s compact form factor and robust construction make it suitable for installation in industrial settings, commercial buildings, or any environment where reliable control is essential. Its modular design allows for easy installation and maintenance, while its high point density and flexible I/O capabilities reduce the need for multiple controllers in large systems, simplifying system architecture and reducing overall installation costs.

The SXWMPC36A10001’s combination of universal inputs/outputs, relay outputs, and BACnet/IP communication makes it an ideal solution for a wide range of applications, including HVAC control, lighting management, energy monitoring, and access control. Its ability to interface with a variety of devices and sensors ensures that it can be deployed in diverse automation systems, providing reliable control and monitoring across different types of equipment.
