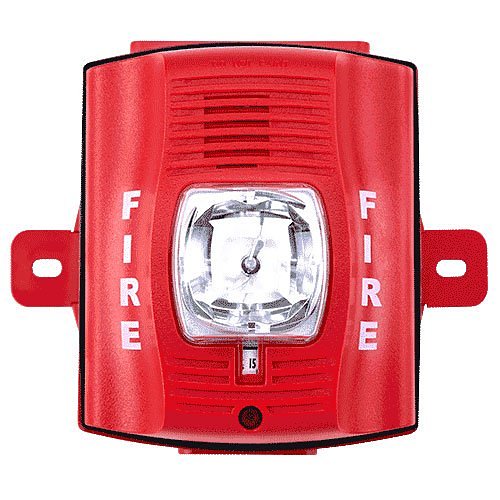

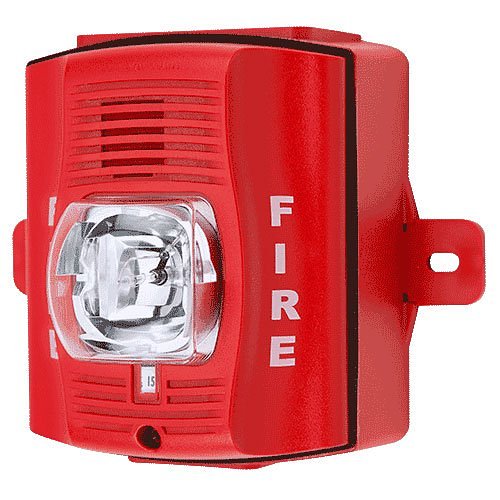

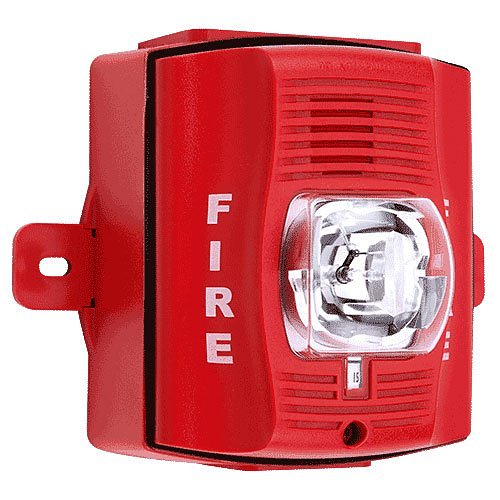

System Sensor P2RHK-120 SpectrAlert Advance Outdoor 120VAC Red Horn Strobe FIRE Marked
- Regular price
- $639.00
- Sale price
- $639.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P2RHK-120
Description
The System Sensor P2RHK-120 is an outdoor 120VAC horn strobe notification appliance from the SpectrAlert Advance series designed for fire alarm and emergency signaling applications. It combines audible horn output with high-intensity visual strobe indication while providing selectable candela settings, weather-resistant construction, and reliable operation in outdoor environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | System Sensor |
| Category | Fire Alarm Systems |
| Part Number | P2RHK-120 |
| Subcategory | Outdoor Horn Strobe |
| Series | SpectrAlert Advance |
| Product Type | Outdoor Horn Strobe Notification Appliance |
| Device Color | Red |
| Marking | FIRE |
| Installation Type | Outdoor Wall or Ceiling Mount |
| Operating Voltage | 120VAC Regulated |
| Operating Voltage Range | 96–132VAC |
| Strobe Technology | Xenon Strobe |
| Candela Settings | 135, 150, 177, 185 cd |
| Flash Rate | 1 flash per second |
| Horn Configuration | Selectable tone and three volume settings |
| Temperature Range | -40°F to 151°F (-40°C to 66°C) |
| Environmental Rating | Outdoor Wet and Dry Locations |
| Weather Protection | UL 50 NEMA 3R Rainproof |
| Back Box | Weatherproof Back Box Included |
| Mounting Method | Plug-in Mounting Plate with Single Screw Attachment |
| Wire Gauge Range | 12–18 AWG |
| Dimensions | 5.7 x 5.1 x 2.0 in. (145 x 130 x 51 mm) |
| Listings | UL 1638, UL 464 |
| Application | Outdoor fire alarm and emergency notification systems |
| Weight | Approximately 2.5 lb (1.13 kg) |
Information About P2RHK-120
The P2RHK-120 is part of the System Sensor SpectrAlert Advance notification appliance family developed for commercial fire alarm and emergency communication systems. The unit features a red outdoor-rated horn strobe assembly with FIRE marking, regulated 120VAC operation, and a weatherproof back box for exterior installations. Its plug-in mounting design, rotary switches for horn configuration, and field-selectable candela settings simplify installation and system configuration. The appliance is suitable for outdoor walls or ceilings in facilities requiring dependable audible and visual notification under harsh environmental conditions.
Key Features:
- Outdoor Horn Strobe Design: Combines audible horn signaling with visual strobe notification for exterior applications.
- 120VAC Operation: Designed for regulated 120VAC fire alarm notification circuits.
- Selectable Candela Settings: Provides adjustable visual output levels of 135, 150, 177, and 185 cd.
- Weatherproof Construction: Rated for outdoor wet and dry locations with included weatherproof back box.
- Wide Temperature Range: Operates from -40°F to 151°F (-40°C to 66°C) for demanding environments.
- Plug-In Installation: Simplifies mounting and reduces installation time through integrated connection design.
- Rotary Horn Adjustment: Allows selection of horn tone and three volume levels.
- FIRE Marking: Provides clear identification for emergency fire notification applications.
- Tamper-Resistant Housing: Helps prevent unauthorized adjustment or device interference.
- NEMA 3R Rainproof Rating: Provides protection against outdoor weather exposure.
- Ceiling or Wall Mounting: Supports flexible installation options for different facility layouts.
- UL Listed Performance: Meets UL 1638 strobe and UL 464 horn requirements for outdoor notification.
The P2RHK-120 delivers the reliability and precision required for outdoor fire alarm notification and emergency signaling systems.
