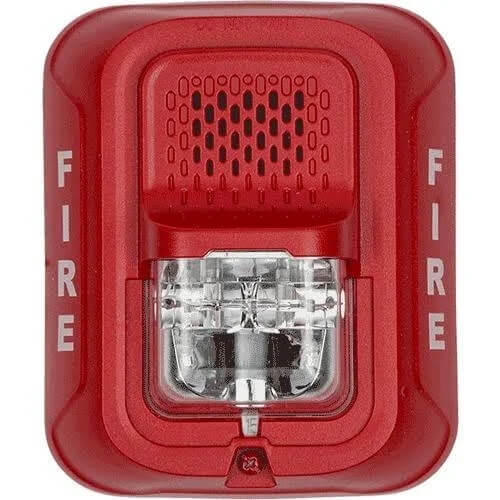

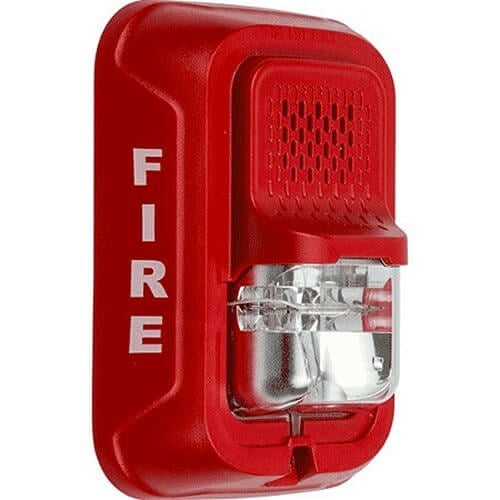

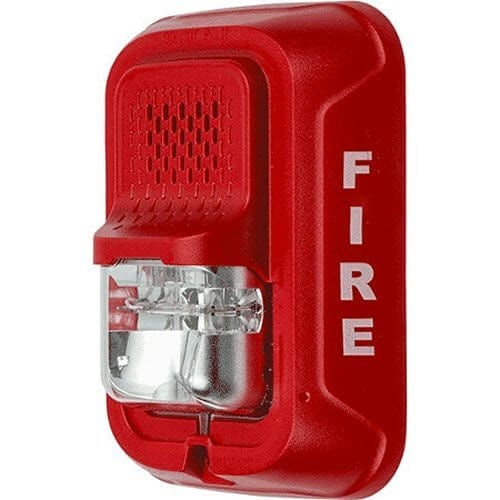

System Sensor P2RL Wall-Mount Horn Strobe Notification Appliance for Indoor Fire Alarm Systems
- Regular price
- $59.00
- Sale price
- $59.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P2RL
Description
The System Sensor P2RL is a wall-mounted horn strobe notification appliance designed to provide synchronized audible and visual emergency signaling for indoor fire alarm systems. Combining a high-output horn with a field-selectable xenon strobe, the System Sensor P2RL delivers reliable occupant notification while supporting flexible installation and configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | System Sensor |
| Category | Fire Alarm Notification |
| Part Number | P2RL |
| Subcategory | Horn Strobes |
| Manufacturer | Honeywell |
| Series | L-Series Notification Appliances |
| Product Type | Wall-Mount Horn Strobe |
| Mounting | Wall |
| Wiring | 2-Wire |
| Operating Voltage | Regulated 12 VDC or 24 VDC/FWR |
| Candela Settings | 15 / 30 / 75 / 95 / 110 / 135 / 185 cd |
| Flash Rate | 1 flash per second |
| Strobe Technology | Xenon Flash Tube |
| Horn Output | Selectable Tone and High/Low Volume |
| Color | Red |
| Listings | UL Listed, FM Approved |
| Production Status | Discontinued |
| Dimensions | 5.60 × 4.70 × 1.25 in |
| Weight | 0.20 lbs |
Information About P2RL
The P2RL is part of the System Sensor L-Series of notification appliances, developed for commercial fire alarm and life safety applications. It operates on regulated 12 VDC or 24 VDC/FWR notification appliance circuits using a two-wire connection and supports System Sensor synchronization protocols for coordinated horn and strobe operation. Installers can configure multiple candela settings, horn tones, and volume levels directly on the device to meet project-specific requirements. Its universal mounting plate allows wiring continuity testing before final installation, reducing commissioning time and simplifying maintenance.
Key Features:
- Combined Horn and Strobe: Provides both audible and visual emergency notification from a single device.
- Wall-Mount Design: Designed for indoor wall installation in commercial fire alarm systems.
- Field-Selectable Candela: Supports 15, 30, 75, 95, 110, 135, and 185 candela output settings.
- Configurable Horn Settings: Offers selectable horn tones with high and low volume options.
- Xenon Strobe Technology: Produces a bright visual signal with a fixed one-flash-per-second rate.
- Two-Wire NAC Connection: Simplifies installation while providing power and supervision.
- Universal Mounting Plate: Allows wiring continuity verification before device installation.
- Synchronization Compatible: Supports System Sensor synchronization modules and compatible fire alarm panels.
- 12/24 VDC Operation: Compatible with regulated 12 VDC and 24 VDC/FWR notification circuits.
- UL and FM Listed: Certified for use in commercial fire alarm and life safety applications.
The P2RL delivers the reliability and precision required for indoor fire alarm notification and life safety signaling applications.
