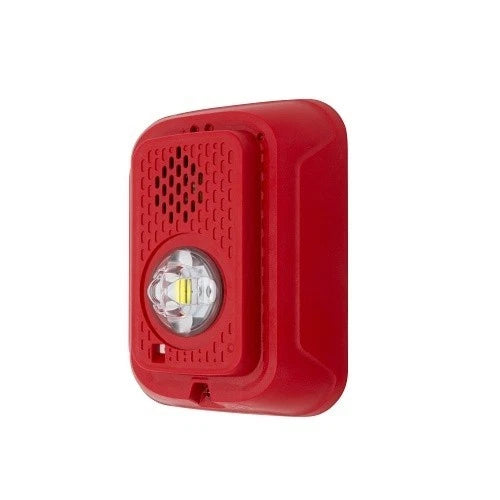

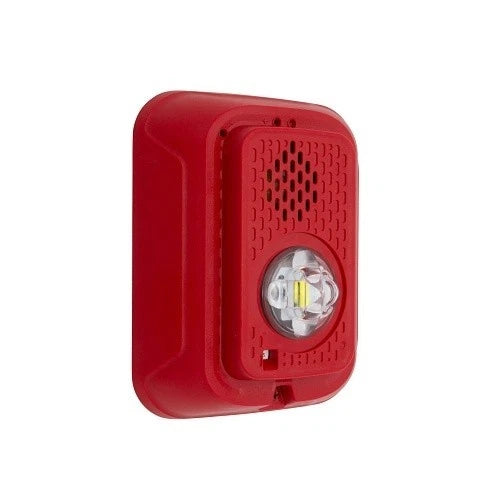

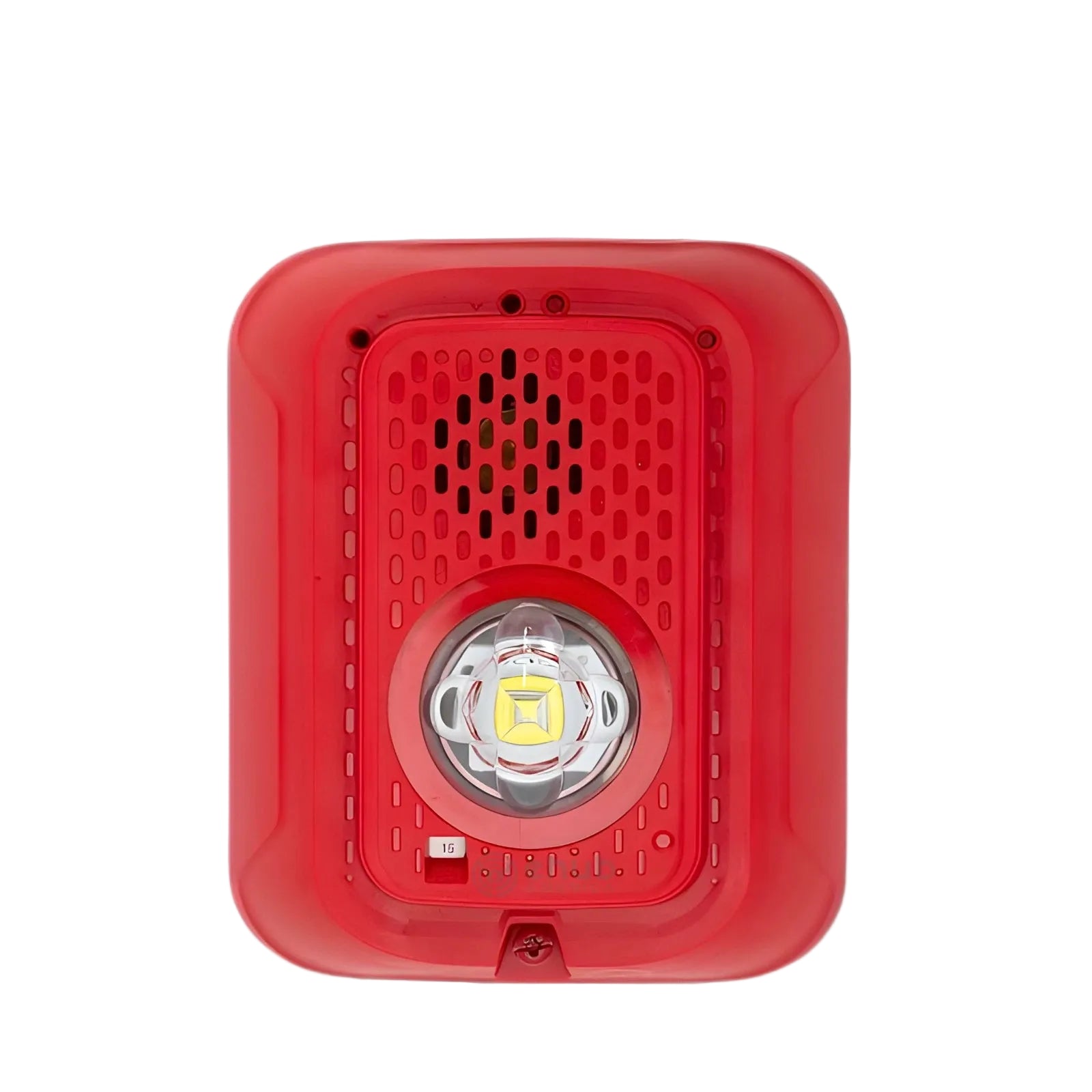

System Sensor P2RLED-BP10 L-Series LED Horn Strobe Red Wall Mount 10-Pack Fire Alarm
- Regular price
- $672.00
- Sale price
- $672.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P2RLED-BP10
Description
The System Sensor P2RLED-BP10 is a L-Series LED horn strobe bulk pack containing ten red wall-mounted notification appliances designed for indoor fire alarm applications. It combines audible horn signaling and high-intensity LED visual notification with low current consumption, selectable settings, and compatibility with System Sensor notification platforms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | System Sensor |
| Category | Fire Alarm Systems |
| Part Number | P2RLED-BP10 |
| Subcategory | LED Horn Strobe |
| Series | L-Series |
| Product Type | Indoor Two-Wire LED Horn Strobe |
| Package Quantity | 10 Units |
| Device Color | Red |
| Marking | FIRE |
| Mounting Type | Wall Mount |
| Operating Voltage | 24 VDC |
| Operating Voltage Range | 16–33 VDC |
| Strobe Technology | LED |
| Horn Output | 88+ dBA at 16V |
| Strobe Flash Rate | 1 flash per second |
| Candela Selection | Field selectable |
| Horn Settings | Field selectable tone and volume |
| Current Draw | Reduced LED current consumption compared with xenon devices |
| Circuit Type | Two-wire Notification Appliance Circuit (NAC) |
| Synchronization | Compatible with System Sensor sync protocol |
| Diagnostic Features | Digital Voltage Meter (DVM) test points |
| Mounting Features | Universal mounting plate with shorting spring |
| Compatibility | SpectrAlert, SpectrAlert Advance, and L-Series devices |
| Application | Indoor fire alarm notification systems |
| Compliance | UL 464 and UL 1971 listed |
| Operating Environment | Commercial, institutional, and industrial facilities |
| Weight | Approximately 1.5 lb (0.68 kg) per unit |
Information About P2RLED-BP10
The P2RLED-BP10 is part of the System Sensor L-Series two-wire LED horn strobe family developed for efficient fire alarm notification system installations. Each device integrates an LED strobe and audible horn in a red wall-mount housing with FIRE marking for clear emergency identification. The appliance uses rotary switches for field selection of candela, horn tone, and volume settings while maintaining simplified installation through a universal mounting plate design. The bulk pack configuration provides ten identical units for commercial, institutional, and industrial projects requiring consistent audible and visual alarm coverage.
Key Features:
- 10-Pack Configuration: Includes ten P2RLED LED horn strobes for large-scale fire alarm installations.
- LED Notification Technology: Reduces current consumption compared with traditional xenon-based strobes.
- Two-Wire Operation: Connects to compatible 2-wire notification appliance circuits.
- Combined Horn Strobe Design: Provides both audible alarm output and visual emergency indication in one device.
- Wall Mount Installation: Designed for indoor wall-mounted fire alarm notification applications.
- Field-Selectable Candela: Allows adjustment of visual output levels for different installation requirements.
- Selectable Horn Settings: Provides adjustable tone and volume configurations using rotary switches.
- Digital Voltage Meter Test Points: Enables troubleshooting and voltage measurement without removing the appliance.
- Universal Mounting Plate: Simplifies installation with plug-in connection and wiring continuity testing.
- Legacy Compatibility: Works with SpectrAlert, SpectrAlert Advance, and L-Series notification devices.
- Synchronization Support: Allows coordinated operation with compatible System Sensor synchronization equipment.
- UL Listed Performance: Meets requirements for audible and visual fire alarm notification applications.
The P2RLED-BP10 delivers the reliability and precision required for fire alarm audible and visual notification systems.
