System Sensor P2WLED-BP10 L-Series LED Horn Strobe White Wall Mount 10-Pack Fire Alarm
- Regular price
- $975.00
- Sale price
- $975.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P2WLED-BP10
Description

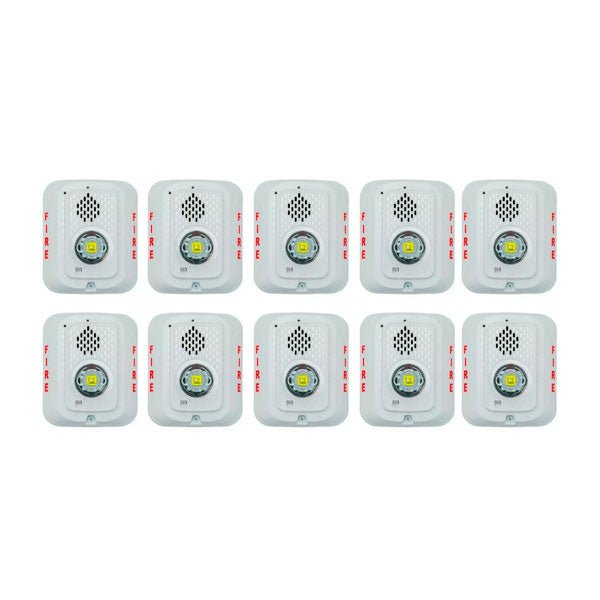

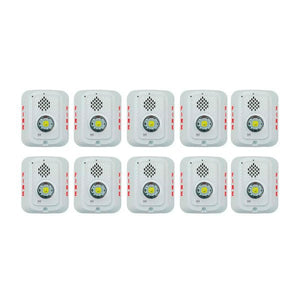

The System Sensor P2WLED-BP10 is a L-Series LED horn strobe bulk pack containing ten white wall-mounted notification appliances designed for indoor fire alarm systems. It combines audible horn signaling with LED visual indication while providing low current consumption, selectable candela settings, and compatibility with System Sensor notification platforms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | System Sensor |
| Category | Fire Alarm Systems |
| Part Number | P2WLED-BP10 |
| Subcategory | LED Horn Strobe |
| Series | L-Series |
| Product Type | Indoor Two-Wire LED Horn Strobe |
| Package Quantity | 10 Devices |
| Device Color | White |
| Marking | FIRE |
| Mounting Type | Wall Mount |
| Installation Environment | Indoor |
| Operating Voltage | 24 VDC |
| Operating Voltage Range | 16–33 VDC |
| Circuit Type | Two-Wire Notification Appliance Circuit (NAC) |
| Strobe Technology | LED |
| Candela Settings | 15, 30, 75, 110, 150, and 177 cd |
| Horn Output | 88+ dBA at 16V |
| Horn Configuration | Selectable tone and volume |
| Flash Rate | 1 flash per second |
| Current Consumption | Reduced LED current draw compared with xenon devices |
| Synchronization | Compatible with System Sensor synchronization solutions |
| Diagnostic Features | Digital Voltage Meter (DVM) test points |
| Mounting Features | Universal mounting plate with shorting spring |
| Compatibility | SpectrAlert, SpectrAlert Advance, and L-Series devices |
| Listings | UL 1971, UL 464 |
| Application | Fire alarm and emergency notification systems |
| Weight | Approximately 1.5 lb (0.68 kg) per unit |
Information About P2WLED-BP10
The P2WLED-BP10 is part of the System Sensor L-Series two-wire LED horn strobe family designed for modern fire alarm notification applications. Each device integrates a white wall-mount horn and strobe assembly with FIRE marking for clear emergency identification in commercial environments. The appliance uses LED technology to reduce power requirements compared with traditional xenon devices while maintaining effective visual signaling performance. Field-selectable candela, horn tone, and volume settings provide installation flexibility, while the universal mounting plate simplifies wiring, testing, and maintenance procedures.
Key Features:
- 10-Pack Configuration: Includes ten P2WLED LED horn strobes for larger fire alarm installations.
- LED Notification Technology: Provides reduced current draw compared with traditional xenon strobe technology.
- Two-Wire Design: Connects to compatible 2-wire notification appliance circuits.
- Combined Horn Strobe Function: Provides audible and visual alarm notification from a single appliance.
- White Wall-Mount Housing: Designed for indoor installations with clear FIRE identification marking.
- Field-Selectable Candela: Supports 15, 30, 75, 110, 150, and 177 cd visual output settings.
- Adjustable Horn Settings: Allows selection of tone and volume levels using rotary switches.
- Universal Mounting Plate: Provides simplified installation with plug-in connection and wiring continuity testing.
- DVM Diagnostic Test Points: Allows voltage measurement without removing the device from the wall.
- Legacy Compatibility: Supports SpectrAlert, SpectrAlert Advance, and L-Series system compatibility.
- Low Power Operation: Helps optimize notification appliance circuit design and power supply sizing.
- UL Listed Performance: Meets UL 1971 visual signaling and UL 464 audible appliance requirements.
The P2WLED-BP10 delivers the reliability and precision required for fire alarm audible and visual notification systems.
