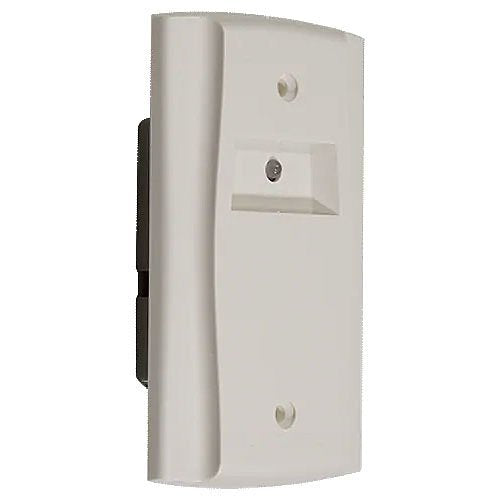

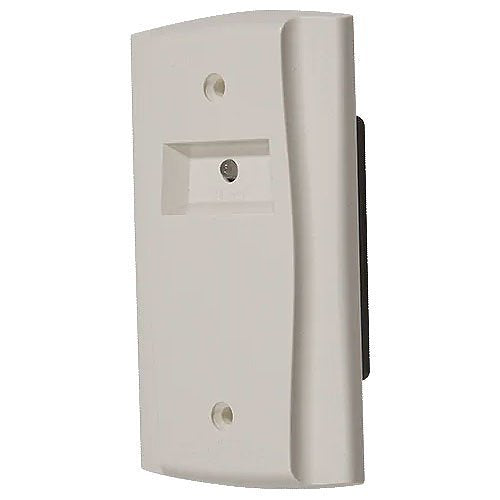

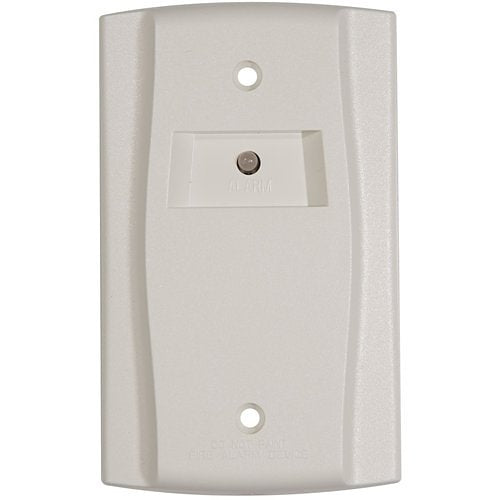

System Sensor RA100Z Remote LED Annunciator For Conventional And Intelligent Fire Systems
- Regular price
- $35.00
- Sale price
- $35.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RA100Z
Description
The System Sensor RA100Z is a remote annunciator designed for use with both conventional and intelligent fire alarm systems, including InnovairFlex duct smoke detector applications. It provides a remote visual alarm indication through a red LED while operating with low current consumption across a wide range of system voltages.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | System Sensor |
| Category | Fire Alarm Systems |
| Part Number | RA100Z |
| Subcategory | Remote Annunciator |
| Product Type | Remote LED Alarm Annunciator |
| Application | Conventional and intelligent fire alarm systems |
| Compatible Systems | System Sensor fire alarm and duct smoke detector applications |
| Indicator Type | Red LED Alarm Indicator |
| Conventional System Voltage | 3.1 to 32 VDC |
| Intelligent System Voltage | 18 to 32 VDC |
| Maximum Alarm Current | 10 mA maximum |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Mounting Type | Single-gang electrical box |
| Wiring Type | Polarized connection |
| Current Regulation | Active current regulator |
| Installation Use | Remote alarm indication and duct detector accessories |
| Certifications | UL, FM, CE |
| Weight | Approximately 0.2 lb (0.09 kg) |
Information About RA100Z
The RA100Z is part of the System Sensor remote annunciator family developed to provide convenient alarm status indication for fire protection systems. The device uses a polarized input design with an active current regulator to maintain reliable operation while limiting alarm current requirements. It supports both conventional systems and intelligent addressable applications by using different voltage ranges depending on installation configuration. The compact annunciator is designed for single-gang electrical box mounting and is commonly used with duct smoke detectors and other fire alarm monitoring equipment.
Key Features:
- Dual System Compatibility: Designed for both conventional and intelligent fire alarm applications.
- Remote Alarm Indication: Provides visual alarm status through an integrated red LED indicator.
- InnovairFlex Compatibility: Expands notification and testing options for System Sensor duct smoke detector installations.
- Low Current Operation: Requires a maximum of 10 mA alarm current for efficient system operation.
- Wide Voltage Range: Supports 3.1–32 VDC conventional systems and 18–32 VDC intelligent systems.
- Polarized Device Design: Provides correct electrical integration with compatible fire alarm circuits.
- Active Current Regulation: Maintains stable current performance across specified voltage ranges.
- Compact Installation: Designed for mounting on a standard single-gang electrical outlet box.
- Conventional System Support: Allows use with compatible non-addressable fire alarm applications.
- Intelligent System Support: Operates with compatible addressable fire alarm configurations.
- Code-Compliant Design: Listed for use in regulated fire protection installations.
The RA100Z delivers the reliability and precision required for remote fire alarm status indication and annunciation applications.
