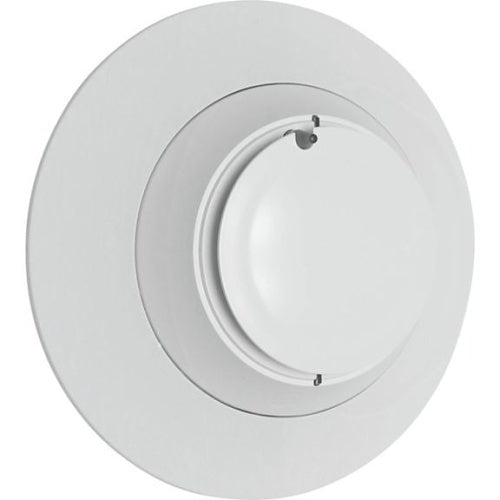

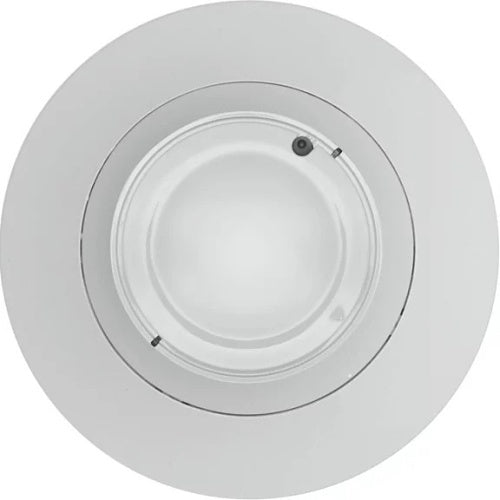

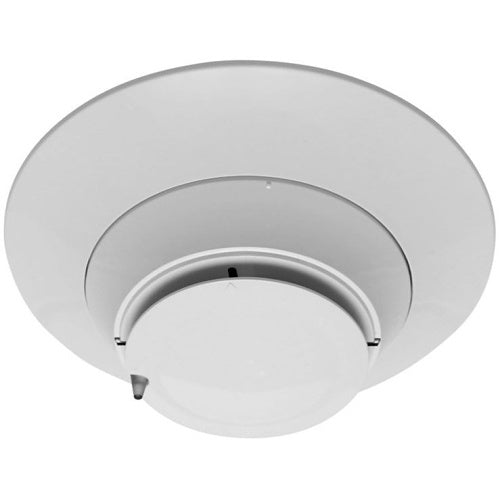

System Sensor SD365CO Addressable Multi-Criteria Fire and CO Detector
- Regular price
- $307.00
- Sale price
- $307.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SD365CO
Description
The System Sensor SD365CO is an intelligent addressable fire and carbon monoxide detector designed to provide combined smoke, heat, flame-pattern, and CO detection in a single device. It integrates multiple sensing technologies with advanced algorithms to improve fire detection accuracy while reducing nuisance alarms caused by non-fire conditions. The detector is used in commercial life safety systems requiring both fire and carbon monoxide monitoring from one addressable point.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | System Sensor |
| Category | Fire Alarm Systems |
| Part Number | SD365CO |
| Subcategory | Addressable Multi-Criteria Fire/CO Detector |
| Product Type | Intelligent Addressable Smoke and Carbon Monoxide Detector |
| Detection Technologies | Photoelectric smoke, CO, thermal, infrared |
| Communication Type | Addressable SLC communication |
| Address Usage | One SLC address |
| Compatible Bases | B200S Series intelligent sounder bases |
| CO Sensor Type | Electrochemical sensing cell |
| CO Cell Life | 10 years with end-of-life warning |
| Heat Detection | 135°F fixed temperature threshold with rate-of-rise sensing |
| Operating Voltage | 15–32 VDC |
| Standby Current | 200 µA at 24 VDC |
| Maximum Alarm Current | 2 mA at 24 VDC |
| Maximum Current | 4.5 mA at 24 VDC |
| LED Indicators | Green communication, red alarm, amber trouble |
| Air Velocity Range | 0–4,000 ft/min (0–1,219 m/min) |
| Operating Temperature | 32°F to 100°F (0°C to 38°C) |
| Humidity Range | 15% to 90% RH non-condensing |
| Dimensions | 2.7 in height, 6.875 in diameter with B200S base |
| Weight | 0.21 lbs (3.4 oz) |
| Certifications | UL 268, UL 521, UL 2075 |
| Application | Commercial fire and carbon monoxide detection |
Information About SD365CO
The SD365CO is part of the System Sensor addressable multi-criteria detector family, developed to combine fire detection and life safety carbon monoxide monitoring in a single low-profile device. The detector uses four sensing elements including photoelectric smoke, electrochemical CO, thermal, and infrared sensors to analyze multiple characteristics of a potential fire event. It communicates through the SLC loop using one system address and supports advanced features such as automatic drift compensation and RealTest® CO verification. The SD365CO is designed for integration with compatible addressable fire alarm control panels and can be paired with B200S series sounder bases for separate fire and CO audible notification.
Key Features:
- Multi-Criteria Detection: Combines smoke, carbon monoxide, heat, and infrared sensing technologies in one detector.
- Addressable Communication: Uses a single SLC address for individual detector identification and status monitoring.
- Photoelectric Smoke Sensing: Detects airborne smoke particles associated with developing fire conditions.
- Electrochemical CO Detection: Provides dedicated carbon monoxide monitoring for life safety applications.
- Thermal Detection: Detects heat conditions with a 135°F fixed temperature threshold and rate-of-rise response.
- Infrared Sensing: Analyzes light patterns as an additional data source for improved fire decision algorithms.
- Enhanced Nuisance Immunity: Helps reduce false alarms caused by non-fire particles and environmental conditions.
- Automatic Drift Compensation: Adjusts sensor performance over time to maintain detection accuracy.
- RealTest® CO Testing: Provides functional testing capability for the integrated carbon monoxide sensor.
- Long-Life CO Cell: Includes a 10-year carbon monoxide sensing cell with end-of-life warning indication.
- B200S Sounder Base Compatibility: Supports separate audible fire and CO alarm patterns when installed with compatible sounder bases.
- Regulatory Compliance: Meets UL 268, UL 521, and UL 2075 requirements for fire and CO detection.
The SD365CO delivers the reliability and precision required for addressable multi-criteria fire and carbon monoxide detection systems.
