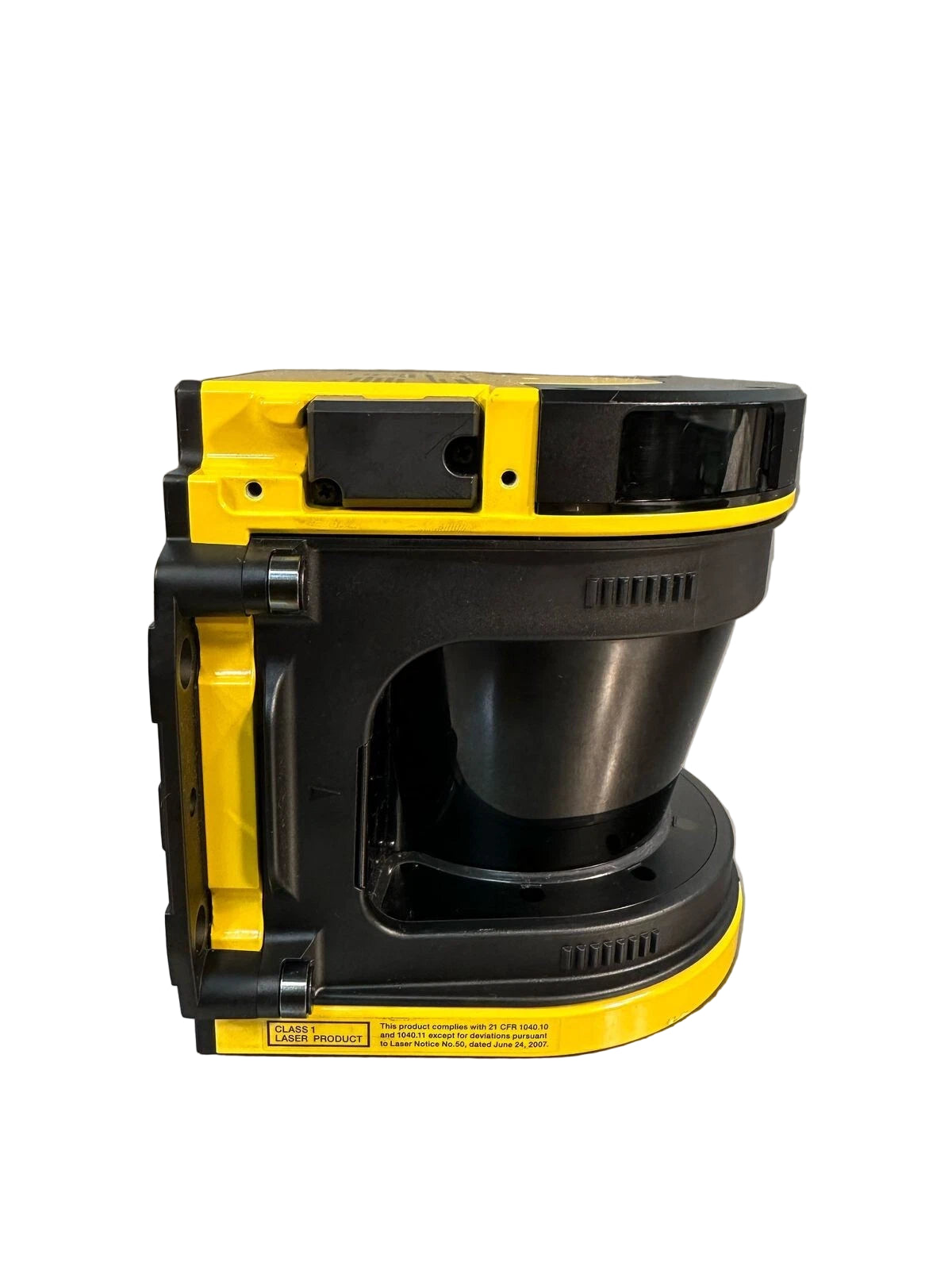

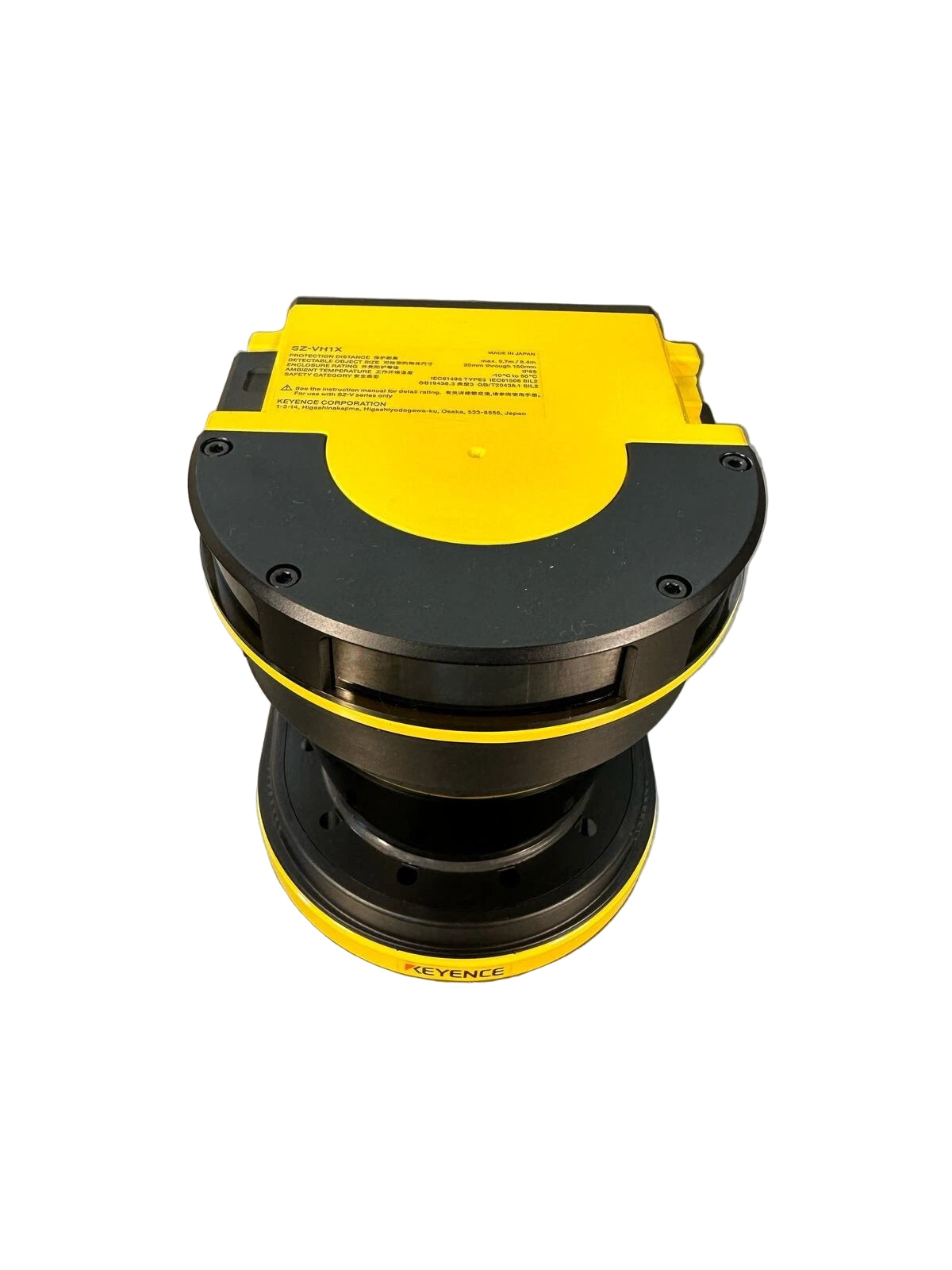

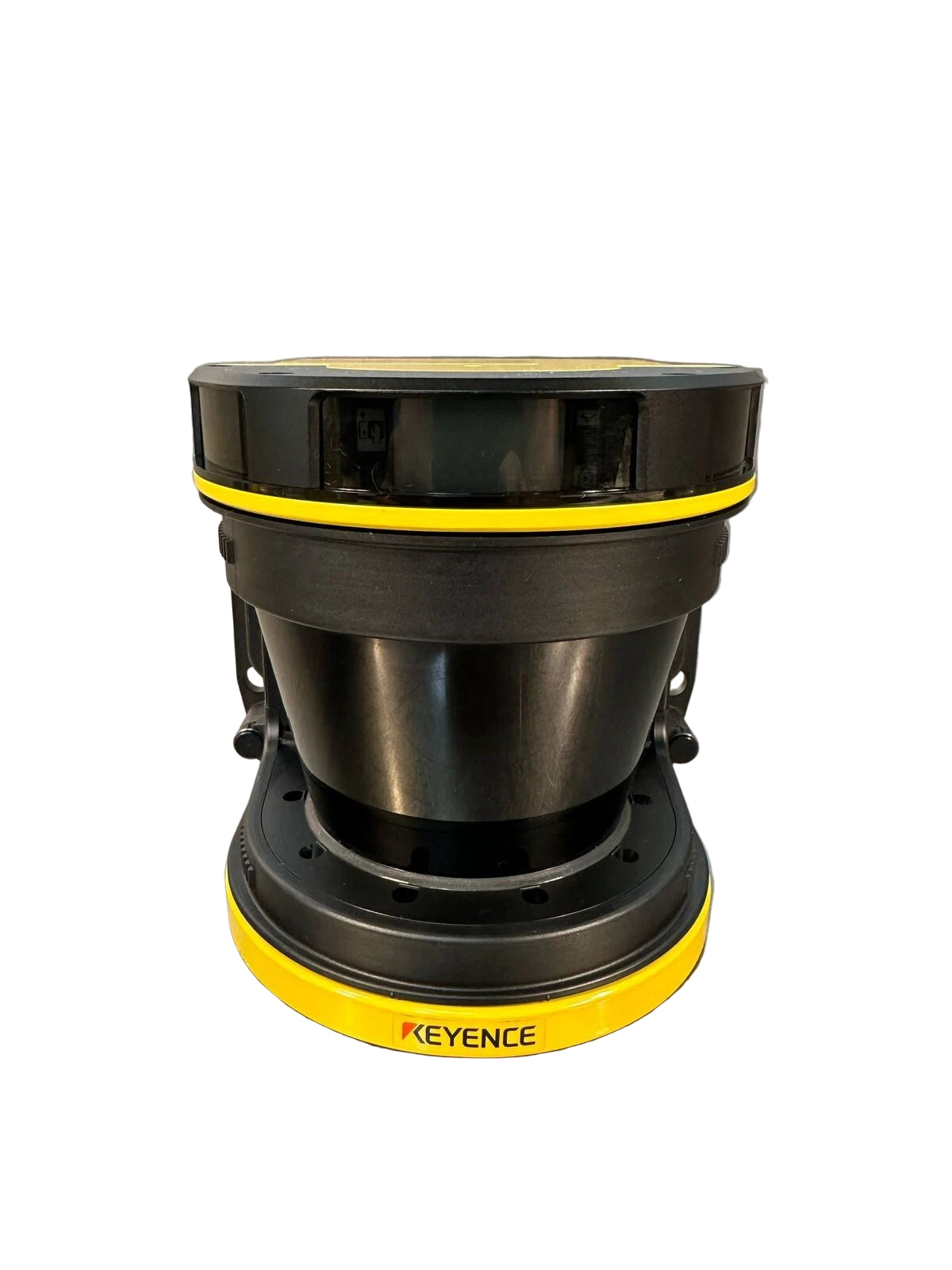

SZ-VH1 | Keyence Safety Laser Scanner Head, 5.7–6.4 m Range, Standard Type with Camera
- Regular price
- $2,129.00
- Sale price
- $2,129.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: SZ-VH1
Description
The Keyence SZ-VH1 is a safety laser scanner head (standard type) designed for the SZ-V Series advanced safety systems. This unit provides wide-area protection with integrated camera functionality for easy zone monitoring and verification. With its compact, high-durability construction and precise detection capabilities, the SZ-VH1 ensures reliable protection for personnel and equipment in automated industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Safety Systems |
| Part Number | SZ-VH1 |
| Subcategory | Safety Laser Scanner |
| Type | Standard Type |
| Protection Distance | 5.7 to 6.4 m (18.7 to 21.0 ft) |
| Detectable Object Size | 20 mm to 150 mm (depending on settings) |
| Detection Principle | Scanning infrared laser with rotating mirror |
| Integrated Camera | Yes (real-time zone image display capability) |
| Applicable Controller | SZ-V Series main unit |
| Measurement Angle | 275° (typical) |
| Angular Resolution | 0.1° to 0.4° (configurable) |
| Response Time | ≤ 60 ms |
| Safety Certifications | CE, UL Listed, FDA Class 1 Laser Product |
| Laser Class | Class 1 (IEC 60825-1 compliant) |
| Enclosure Rating | IP65 (dust-tight and protected from water jets) |
| Ambient Temperature | 0 to +50 °C (32 to 122 °F, non-freezing) |
| Ambient Humidity | 35 to 85 % RH (non-condensing) |
| Power Supply (via Controller) | 24 VDC ±20 % |
| Material (Housing) | High-impact industrial polymer with optical-grade window |
| Mounting Method | Panel or bracket mounting (horizontal/vertical) |
| Cable Interface | Dedicated SZ-V connector |
| Communication Interface | Via SZ-V Series controller (EtherNet/IP™, PROFINET, RS-232C) |
| Weight | Approx. 1,600 g (3.53 lbs) |
Information About SZ-VH1
The SZ-VH1 scanner head is part of the Keyence SZ-V Series, known for its intelligent, camera-equipped safety laser scanners that combine high flexibility with powerful detection accuracy. This model enables 5.7 to 6.4 meters of protection distance, detecting objects as small as 20 mm to 150 mm depending on configuration. It connects seamlessly with SZ-V control units via dedicated cabling and allows for easy zone switching, status monitoring, and live image display. Engineered for tough factory conditions, it is ideal for robotic work cells, AGVs (Automated Guided Vehicles), conveyors, and access guarding systems. Its high-speed scanning performance ensures both safety and productivity.
Key Features:
- Integrated Camera Function: Enables real-time visual confirmation of the monitored area for faster troubleshooting.
- Extended Detection Range: Provides 5.7 to 6.4 meters of protective coverage for versatile installation setups.
- Compact & Durable Design: Lightweight yet robust scanner housing designed for industrial reliability.
- Flexible Object Detection: Detects object sizes from 20 mm to 150 mm, adaptable to multiple safety zones.
- Multi-Zone Capability: Supports up to 8 safety zones and monitoring areas for dynamic protection.
- Advanced Safety Communication: Compatible with EtherNet/IP™ and PROFINET via the SZ-V system controller.
- User-Friendly Setup: Simple alignment and configuration via visual feedback from the built-in camera.
- High Environmental Resistance: Designed to withstand harsh industrial conditions with dust and light vibration protection.
- Certified Safety Compliance: CE, UL, and other international safety certifications ensure global usability.
The SZ-VH1 combines intelligent sensing and visual confirmation features to redefine flexibility, efficiency, and reliability in safety laser scanning technology.
