T1K-08TR | Automation Direct 6-24VDC/6-240VAC Output Module DirectLOGIC 205

The T1K-08TR is an output module developed by Automation Direct for use in PLC systems, specifically within the DirectLOGIC 205 series. This versatile module is categorized under PLCs/Machine Control and falls within the VDC Logic I/O Module subcategory. It is designed to provide reliable control for external devices in industrial automation systems, making it ideal for applications that require both AC and DC load management.

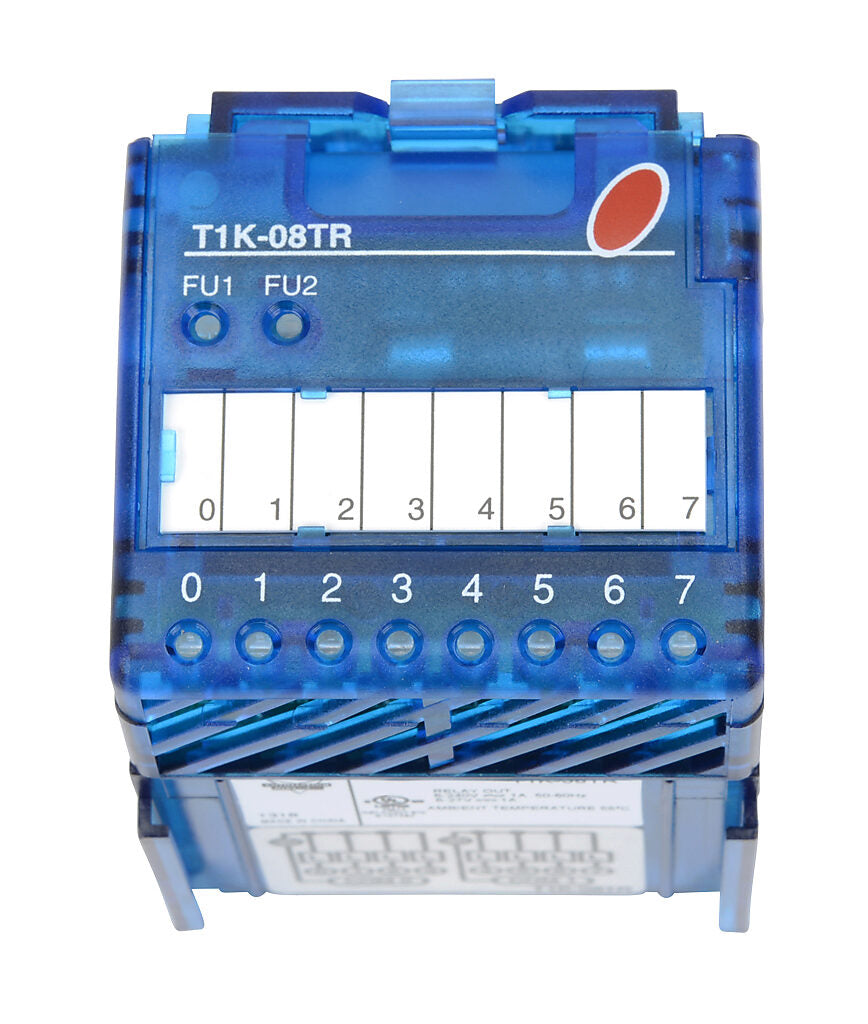

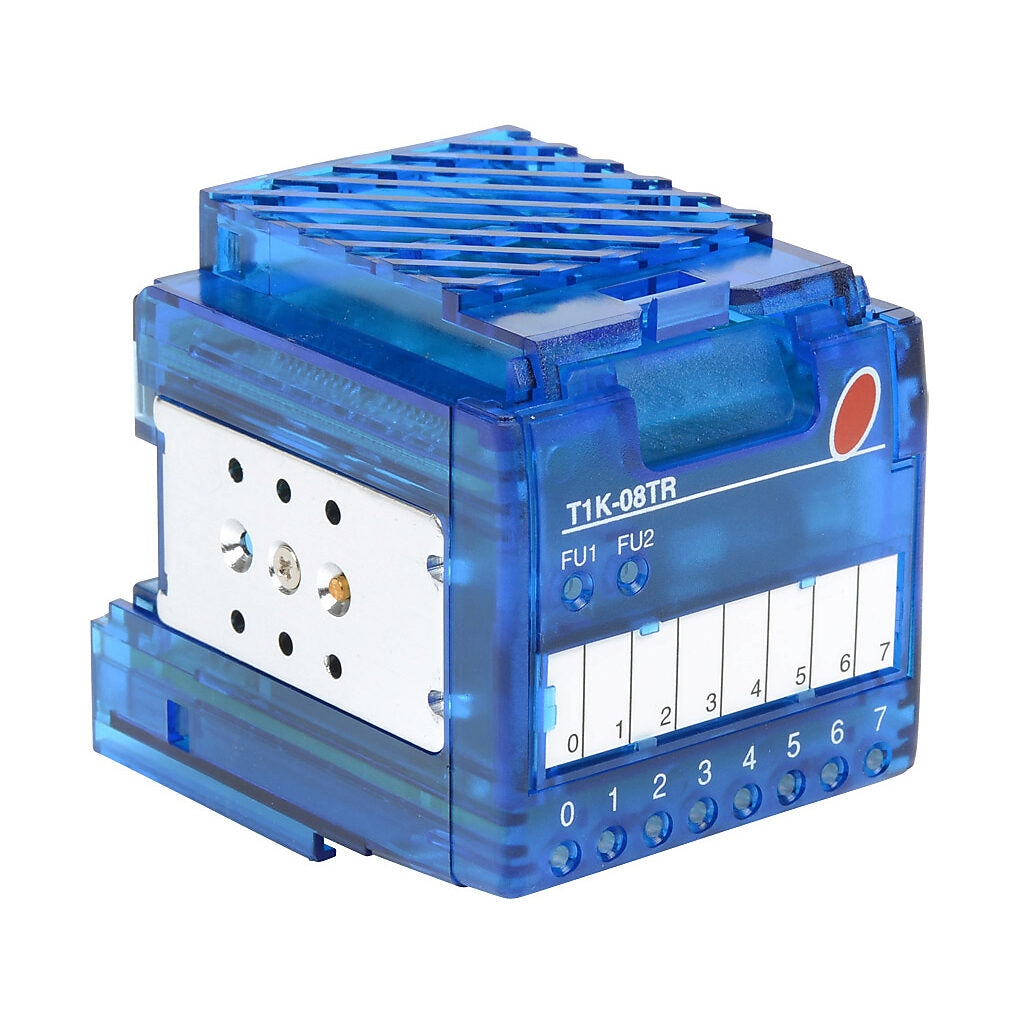

The T1K-08TR is a relay output module equipped with 8 discrete output points, each controlled by individual relays. These relays are of the Form A (SPST) type, meaning they are single-pole, single-throw relays, suitable for controlling on/off operations in connected devices. The module’s relay configuration ensures simple and efficient control of various devices such as motors, lights, solenoids, and other equipment typically found in industrial automation environments.

This module is compatible with both DC and AC output signals, making it highly versatile for different operational needs. The nominal output voltage for the T1K-08TR ranges from 6-24 VDC and 6-240 VAC, which allows it to be used in a wide range of applications that require control of low-voltage DC systems or high-voltage AC systems. This flexibility makes the module ideal for managing mixed-load environments where both AC and DC devices need to be controlled.

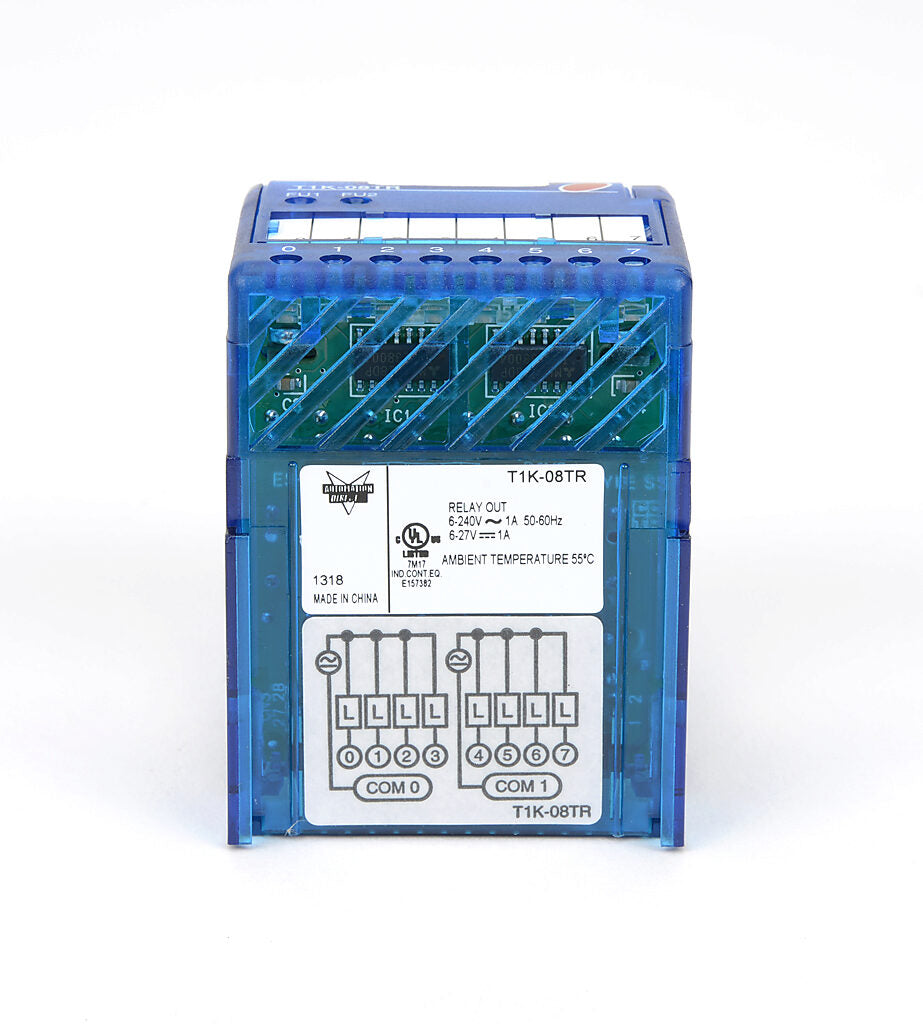

One of the key features of the T1K-08TR is its isolated commons. The module is designed with 2 isolated commons, with each common managing 4 output points. This isolation provides enhanced signal integrity by reducing the risk of interference between output points, ensuring stable and reliable operation in high-demand industrial applications. Isolated commons are especially useful in environments where electrical noise or varying power conditions could affect the operation of connected devices.

Although the T1K-08TR does not offer jumper-selectable isolation, its fixed isolation configuration provides enough flexibility for most industrial settings, allowing for efficient grouping of outputs. The 4 points per common design makes it easier to segment control of different devices, enabling operators to manage smaller groups of outputs individually without requiring additional hardware.

In terms of load handling, the T1K-08TR is designed to support up to 2A per point and 8A per common. This load capacity is sufficient for controlling a variety of devices, from smaller actuators and indicators to larger motors and equipment. The module’s robust load-handling capabilities ensure that it can be used in demanding industrial applications without risk of overloading or performance degradation. This makes the T1K-08TR suitable for applications where multiple devices need to be managed simultaneously.

The module also features a replaceable fuse, providing an added layer of protection for both the module and the connected devices. The fuse ensures that the system remains protected in the event of an overcurrent condition or electrical fault, minimizing the risk of damage to the module or connected devices. The user-supplied fuse can be easily replaced if necessary, making maintenance straightforward and reducing system downtime in case of a fault.

The T1K-08TR requires the use of ZIPLink pre-wired cables for installation, which significantly simplifies the wiring process. The ZIPLink system eliminates the need for point-to-point wiring, which reduces the potential for errors and makes the installation process faster and more efficient. This feature is especially beneficial in environments where time is critical and downtime must be minimized.

Overall, the T1K-08TR output module is an essential component for expanding the control capabilities of the DirectLOGIC 205 PLC systems. Its 8 relay output points, flexible voltage range (6-24 VDC/6-240 VAC), and isolated commons make it well-suited for a variety of industrial automation tasks. The ability to manage both AC and DC loads, along with robust load-handling capabilities, ensures that this module can perform reliably in complex automation environments.

The module’s replaceable fuse and ZIPLink compatibility add convenience and ease of use, making it a practical choice for system integrators and engineers looking to enhance the output capabilities of their control systems. With its reliable performance and versatile design, the T1K-08TR offers a robust solution for controlling discrete outputs in a wide range of industrial automation applications.
