Product Description P/N: T2536161S
Description

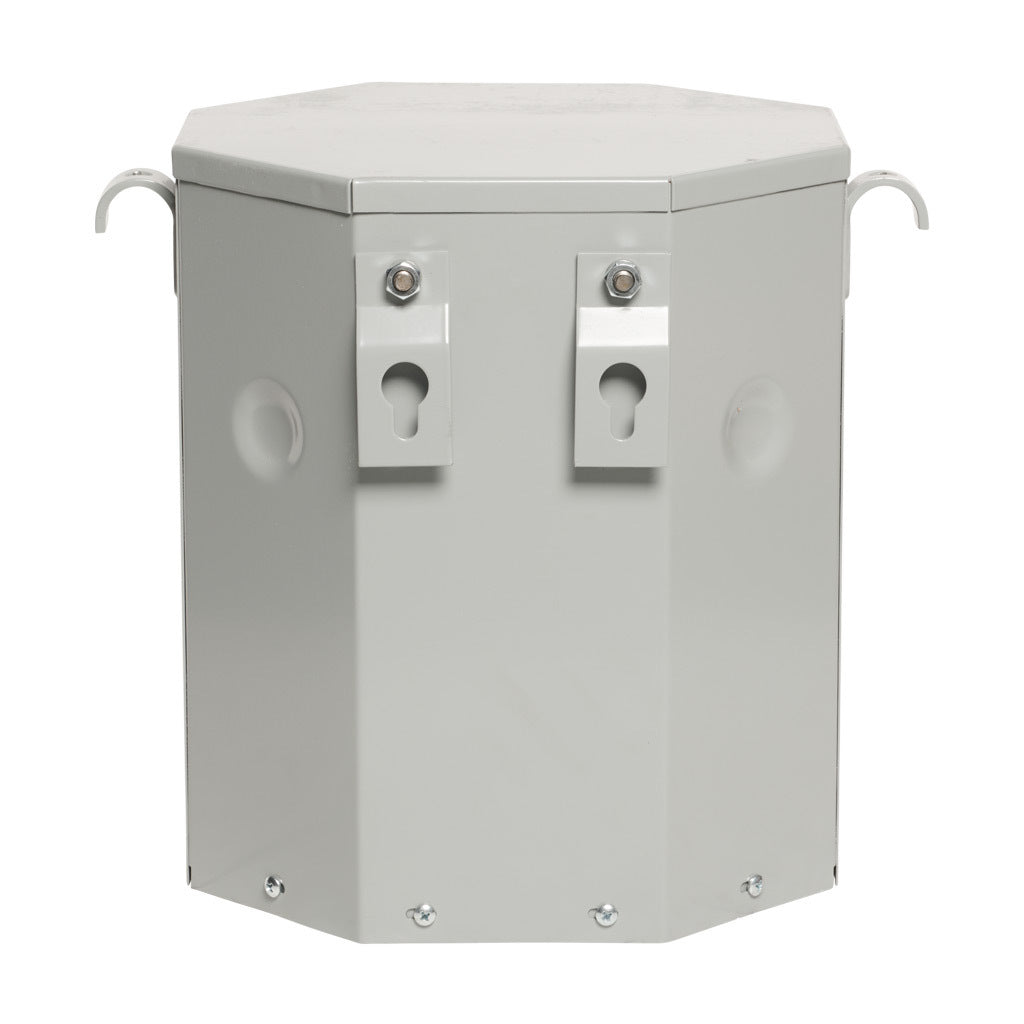

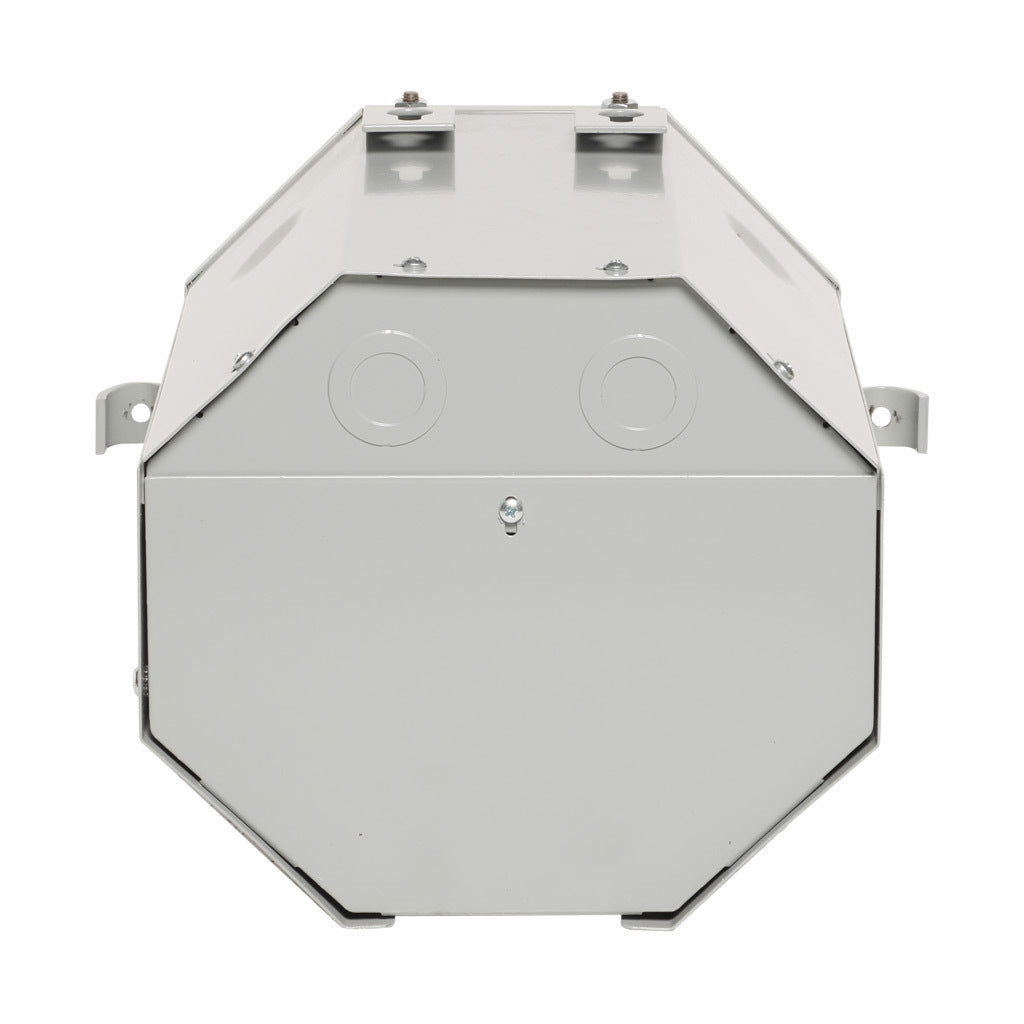

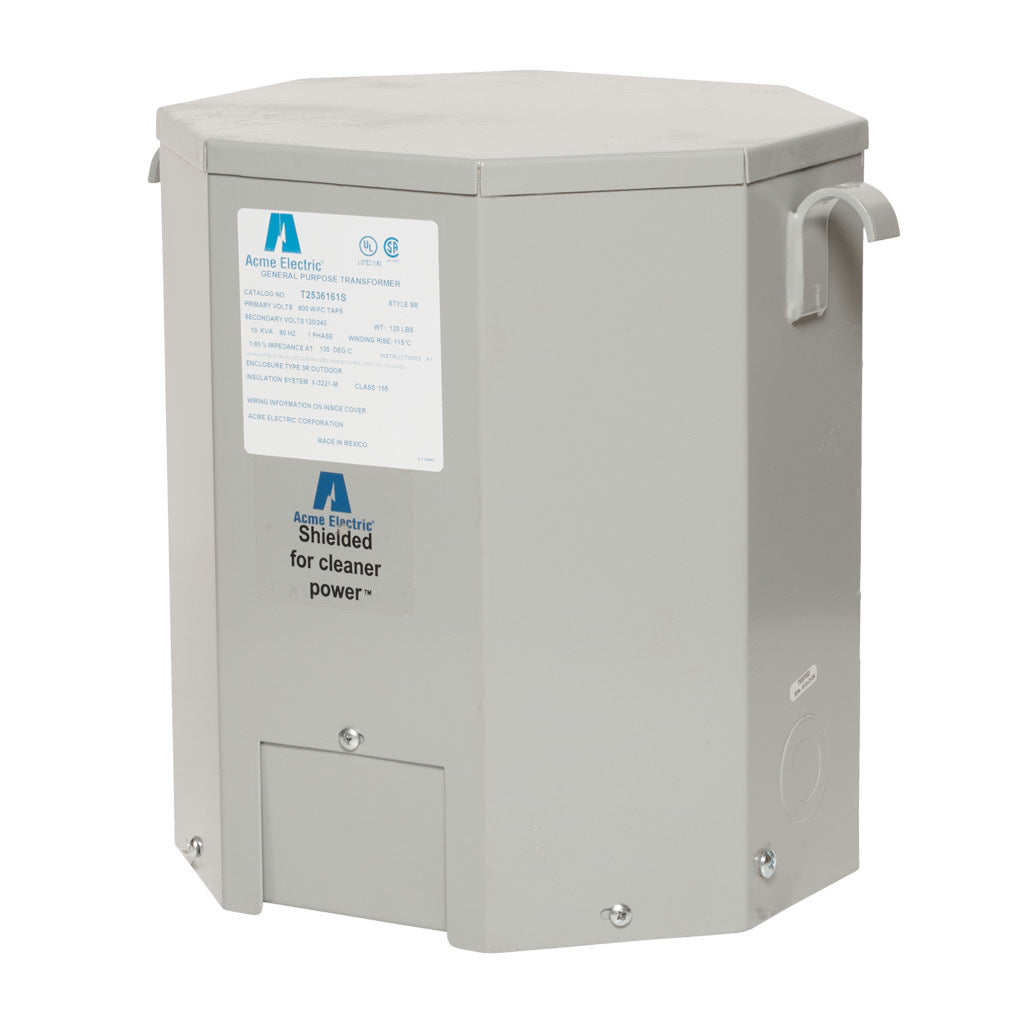

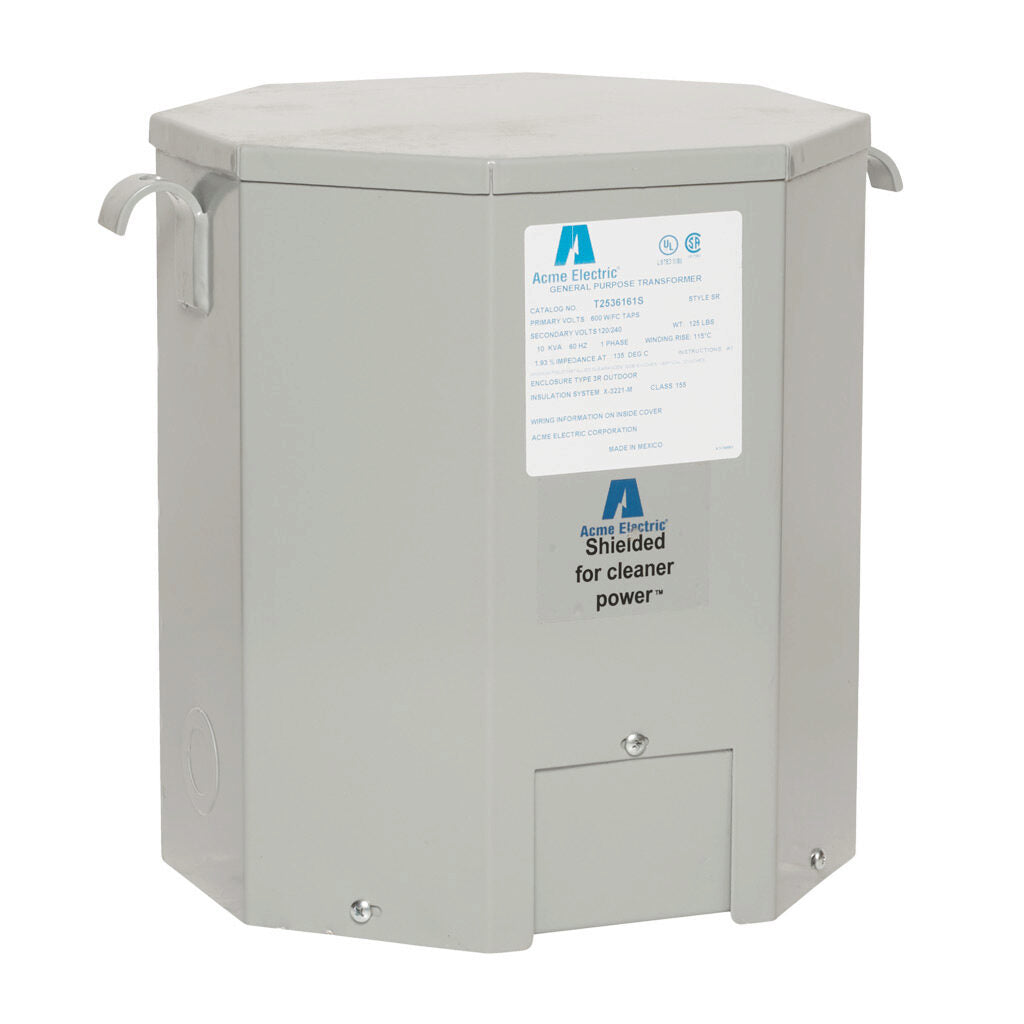

The Acme Electric T2536161S is a single-phase, dry-type low-voltage distribution transformer built for reliable service in industrial and commercial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Acme Electric |
| Category | Transformers |
| Part Number | T2536161S |
| Subcategory | Dry Transformer |
| Type | General Purpose Transformer, Encapsulated Core |
| KVA Rating | 10 kVA |
| Phase | Single |
| Frequency Rating | 60 Hz |
| Primary Voltage | 600 V |
| Secondary Voltage | 120/240 V |
| Taps % Steps | 5% |
| BNFC Taps | 2 |
| Configuration | Electrostatic Shield – Shielded |
| Winding Material | Aluminum |
| Material Type | ZFIN |
| Max Temperature Rise | 115°C |
| UL Insulation Class | 180°C |
| NEMA Rating | NEMA 3R |
| UL Standard | UL 506 |
| CSA Standard | C22.2 No. 47 |
| Mounting Type | Wall |
| Made in USA | Yes |
| Dimensions (L × W × H) | 10.84 in × 13.5 in × 15.19 in |
| Weight | 125 lb |
Information About T2536161S
The Acme Electric T2536161S is a single-phase, dry-type general purpose distribution transformer designed for dependable voltage conversion in industrial and commercial applications. Rated at 10 kVA, it steps down 600 V primary voltage to 120/240 V secondary, delivering efficient and stable power. Its encapsulated core and coil construction is housed in a NEMA 3R enclosure for both indoor and outdoor wall-mounted use. Featuring aluminum windings, a 5% tap adjustment, and an electrostatic shield, it ensures reduced electrical noise and long service life. With a 115 °C maximum temperature rise and Class 180 °C insulation, it meets UL 506 and CSA C22.2 No. 47 standards for safety and performance.
Key Features:
- Versatile Voltage Conversion: 600 V primary to 120/240 V secondary for a range of load requirements.
- Durable Enclosure: NEMA 3R rated for indoor/outdoor environments.
- Quiet Operation: Below NEMA sound-level standards, suitable for noise-sensitive areas.
- Electrostatic Shield: Provides enhanced protection against electrical interference.
- Encapsulated Construction: Protects windings from dust, moisture, and corrosion.
- Industrial Grade: Aluminum windings, Class 180 °C insulation, and 115 °C rise for reliability.
The T2536161S combines rugged construction with efficient operation, making it a trusted choice for clean, reliable power distribution in demanding environments.
