T2A533101S | Acme Electric Low Voltage Distribution Transformer
- Regular price
- $1,145.00
- Sale price
- $1,145.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: T2A533101S
Description

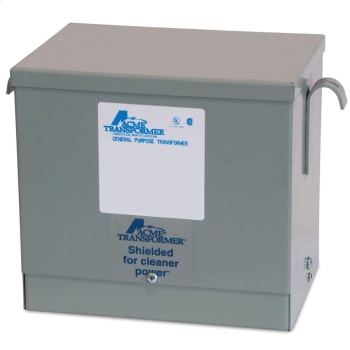

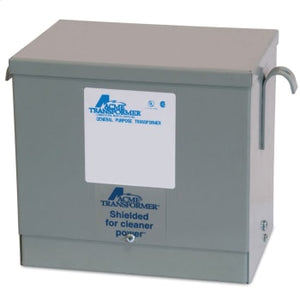

The T2A533101S by Acme Electric is a three‑phase, dry‑type low‑voltage distribution transformer built for both indoor and outdoor industrial use.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Acme Electric |
| Category | Transformers |
| Part Number | T2A533101S |
| Subcategory | Control Transformer |
| Model | T25A |
| Type | Distribution, Dry |
| Design Type | Core and Coil |
| Primary Voltage | 480 V AC (Delta) |
| Secondary Voltage | 208Y/120 V AC (Star) |
| Number of Phases | 3 |
| Frequency Rating | 60 Hz |
| Power Rating | 9 kVA |
| Voltage Function | Step Down |
| Number of Tapings | 2 |
| Tapings Provided | 5% |
| Taps % Steps | 0.05 |
| BNFC Taps | 2 |
| Winding Material | Aluminum |
| Electrostatic Shield | Shielded |
| Construction | Encapsulated |
| Enclosure Material | Steel |
| Enclosure Rating | NEMA 3R |
| Enclosure Finish | Powder Polyurethane Paint |
| Color | Gray |
| Knockout Size | 1-1/4 in, 3/4 in |
| Includes Knockouts | Yes |
| Mounting | Wall |
| IP Rating | IP14 |
| Outdoor Rated | Yes |
| Length | 17.77 in |
| Width | 11.52 in |
| Height | 14.03 in |
| Depth | 11.52 in |
| Temp. Rise / Max Temp. Rise | 115°C |
| UL Insulation Class | 180°C |
| Standards / Approvals | UL 506, CSA C22.2 No. 47, NEMA, Proposition 65 |
| Applications | Industrial, Commercial |
| Features | Quiet operation with sound levels below NEMA standards; Electrostatic shield for enhanced protection |
| Weight | 180 lbs |
Information About T2A533101S
The Acme Electric T2A533101S is a three-phase, dry-type low voltage distribution transformer designed for reliable power conversion in commercial and industrial environments. Rated at 9 kVA, it steps down 480 V Delta primary voltage to 208Y/120 V secondary, providing efficient, noise-reduced operation. Its encapsulated core and coil construction, housed in a NEMA 3R steel enclosure with powder polyurethane finish, ensures durability in both indoor and outdoor settings. Featuring aluminum windings, an electrostatic shield, and Class 180°C insulation, it offers long-lasting performance and protection against electrical noise.
Key Features:
- Versatile Power Conversion: 480 V Delta primary to 208Y/120 V secondary for multi-load applications.
- Durable Enclosure: NEMA 3R steel housing with powder-coated finish for indoor/outdoor use.
- Noise Reduction: Operates below NEMA sound level standards for quieter environments.
- Electrostatic Shield: Enhanced protection against electrical interference.
- Encapsulated Core and Coil: Sealed for protection in dust, moisture, and corrosive atmospheres.
- Industrial Grade: Suitable for demanding commercial and industrial applications.
The T2A533101S delivers efficient, quiet, and reliable voltage transformation, making it a trusted choice for powering sensitive equipment and general distribution systems in varied environments.
