T30UDPAQ | Banner Engineering T30U Ultrasonic Proximity Sensor, Discrete PNP
- Regular price
- $742.00
- Sale price
- $742.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T30UDPAQ
Description
The Banner Engineering T30UDPAQ ultrasonic proximity sensor is a non-contact sensing device designed for reliable object detection over medium-range distances. Operating in diffuse mode with discrete PNP outputs, this sensor delivers consistent proximity detection performance in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | T30UDPAQ |
| Subcategory | Ultrasonic Proximity Sensors |
| Series | T30U Series |
| Sensor Type | Ultrasonic Proximity Sensor |
| Sensing Mode | Diffuse |
| Measurement Range | 150–1000 mm |
| Sensing Range | Up to 1000 mm |
| Output Type | 2 × Discrete PNP |
| Supply Voltage | 12–24 VDC |
| Operating Frequency | 228 kHz |
| Connection Type | M12, 5-Pin Quick Disconnect |
| Mounting Type | 30 mm Threaded |
| Housing Material | PBT |
| Housing Style | Barrel |
| Indicators | LED(s) |
| IP Rating | IP67 |
| NEMA Rating | 6 |
| Operating Temperature | -20°C to 70°C |
| Weight | 0.13 lbs |
Information About T30UDPAQ
The T30UDPAQ is part of Banner Engineering’s T30U Series, which is engineered for robust ultrasonic sensing in harsh industrial conditions. This sensor uses ultrasonic technology operating at 228 kHz to detect targets regardless of color, transparency, or surface texture. It features dual discrete PNP outputs and operates on a 12–24 VDC power supply, allowing flexible integration with PLCs and control systems. Housed in a durable PBT barrel-style enclosure with IP67 and NEMA 6 protection, it is well suited for applications exposed to dust, moisture, and vibration.
Key Features:
- Ultrasonic Proximity Sensing: Provides reliable non-contact detection independent of target material or color.
- Wide Detection Range: Supports sensing distances from 150 mm up to 1000 mm.
- Dual Discrete PNP Outputs: Enables flexible switching logic and control integration.
- Diffuse Sensing Mode: Detects objects directly without the need for reflectors.
- Rugged Industrial Housing: PBT construction with IP67 and NEMA 6 environmental protection.
- M12 Quick-Disconnect Connector: Simplifies installation and maintenance with a secure 5-pin interface.

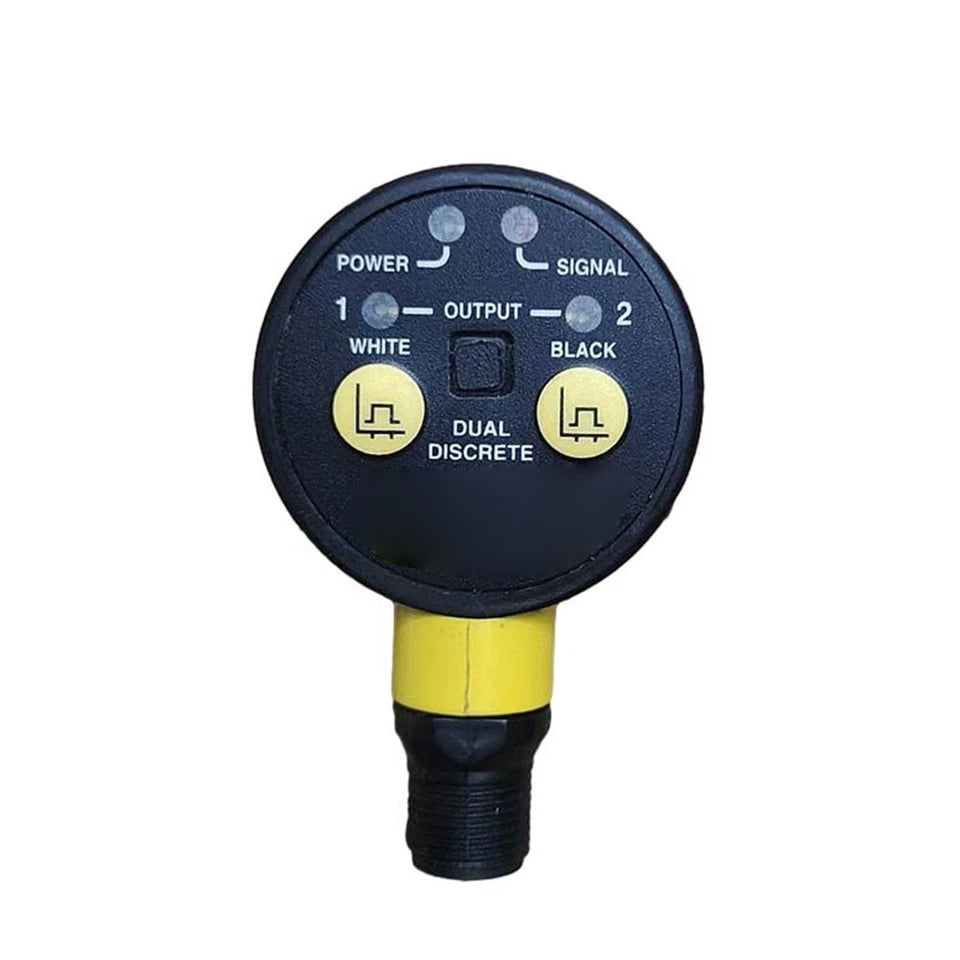

- LED Status Indicators: Provides visual feedback for sensor operation and alignment.
The T30UDPAQ delivers the reliability and precision required for industrial ultrasonic proximity sensing and object detection applications.
Description
The Banner Engineering T30UDPAQ ultrasonic proximity sensor is a non-contact sensing device designed for reliable object detection over medium-range distances. Operating in diffuse mode with discrete PNP outputs, this sensor delivers consistent proximity detection performance in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | T30UDPAQ |
| Subcategory | Ultrasonic Proximity Sensors |
| Series | T30U Series |
| Sensor Type | Ultrasonic Proximity Sensor |
| Sensing Mode | Diffuse |
| Measurement Range | 150–1000 mm |
| Sensing Range | Up to 1000 mm |
| Output Type | 2 × Discrete PNP |
| Supply Voltage | 12–24 VDC |
| Operating Frequency | 228 kHz |
| Connection Type | M12, 5-Pin Quick Disconnect |
| Mounting Type | 30 mm Threaded |
| Housing Material | PBT |
| Housing Style | Barrel |
| Indicators | LED(s) |
| IP Rating | IP67 |
| NEMA Rating | 6 |
| Operating Temperature | -20°C to 70°C |
| Weight | 0.13 lbs |
Information About T30UDPAQ
The T30UDPAQ is part of Banner Engineering’s T30U Series, which is engineered for robust ultrasonic sensing in harsh industrial conditions. This sensor uses ultrasonic technology operating at 228 kHz to detect targets regardless of color, transparency, or surface texture. It features dual discrete PNP outputs and operates on a 12–24 VDC power supply, allowing flexible integration with PLCs and control systems. Housed in a durable PBT barrel-style enclosure with IP67 and NEMA 6 protection, it is well suited for applications exposed to dust, moisture, and vibration.
Key Features:
- Ultrasonic Proximity Sensing: Provides reliable non-contact detection independent of target material or color.
- Wide Detection Range: Supports sensing distances from 150 mm up to 1000 mm.
- Dual Discrete PNP Outputs: Enables flexible switching logic and control integration.
- Diffuse Sensing Mode: Detects objects directly without the need for reflectors.
- Rugged Industrial Housing: PBT construction with IP67 and NEMA 6 environmental protection.
- M12 Quick-Disconnect Connector: Simplifies installation and maintenance with a secure 5-pin interface.
- LED Status Indicators: Provides visual feedback for sensor operation and alignment.
The T30UDPAQ delivers the reliability and precision required for industrial ultrasonic proximity sensing and object detection applications.
