Product Description P/N: T30UIPAQ
Description

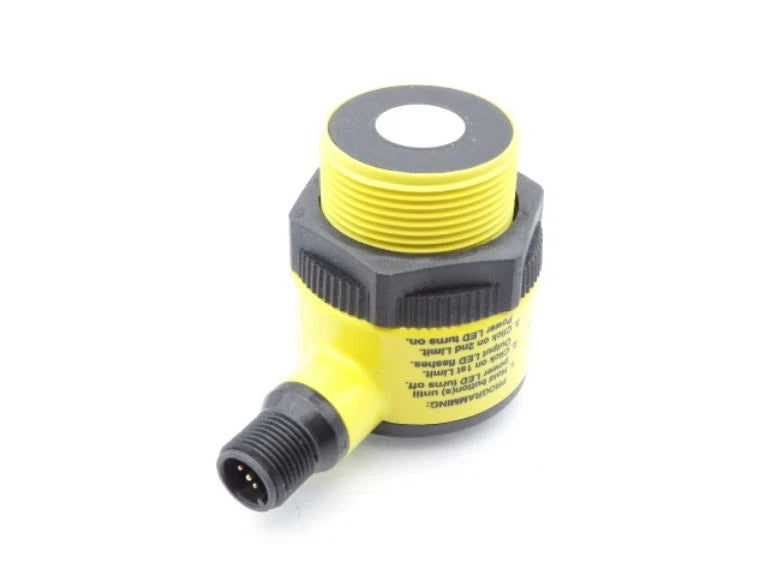

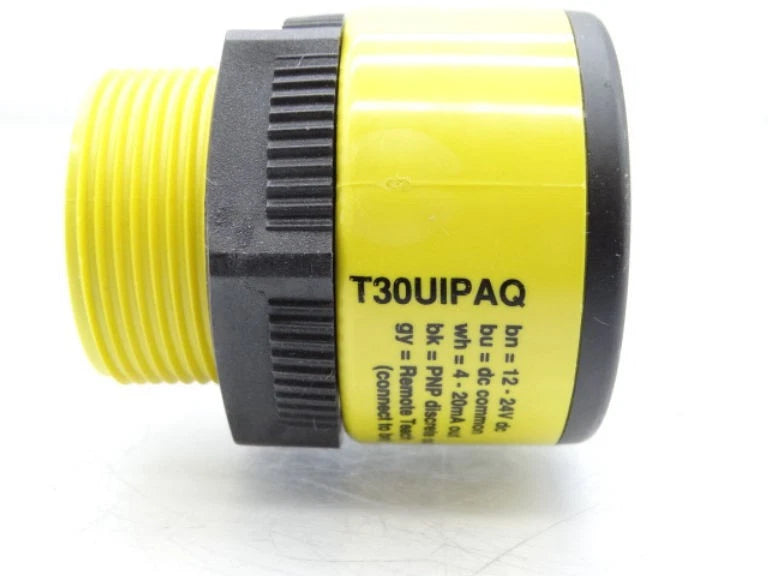

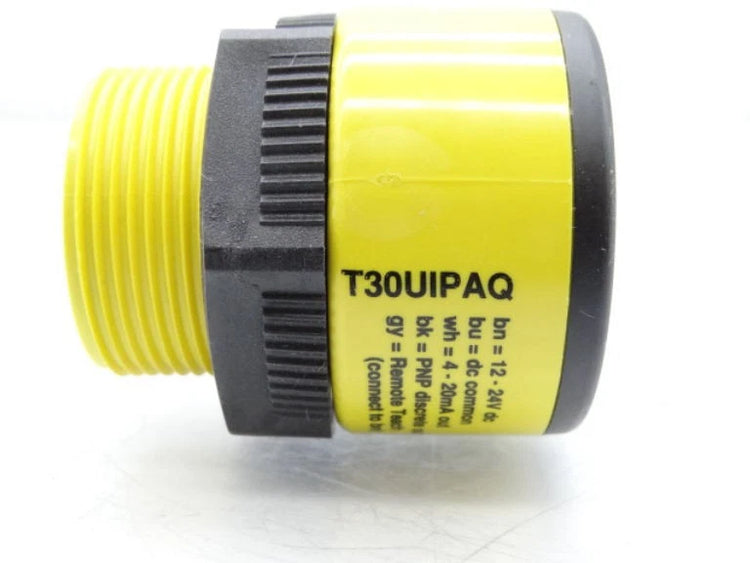

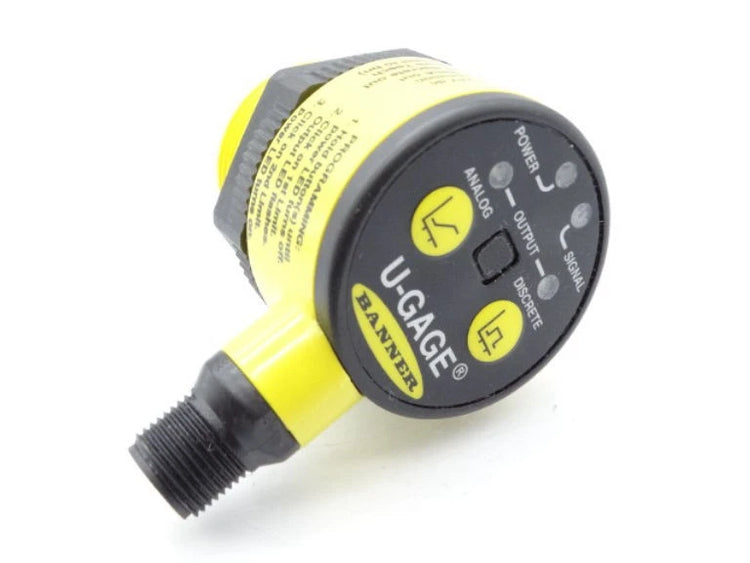

The Banner Engineering T30UIPAQ ultrasonic proximity sensor is a versatile sensing device designed for non-contact distance detection in industrial automation environments. Using ultrasonic technology, it provides reliable analog and discrete output signals for object detection and proximity monitoring across a wide sensing range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | T30UIPAQ |
| Subcategory | Ultrasonic Proximity Sensors |
| Series | T30U Series |
| Sensor Type | Ultrasonic Proximity Sensor |
| Sensing Mode | Diffuse |
| Measurement Range | 150–1000 mm |
| Sensing Range | Up to 1000 mm |
| Output Type | Analog (4–20 mA) & Discrete PNP |
| Supply Voltage | 12–24 VDC |
| Operating Frequency | 228 kHz |
| Connection Type | M12, 5-Pin Quick Disconnect |
| Mounting Type | 30 mm Threaded |
| Housing Material | PBT |
| Housing Style | Barrel |
| Indicators | LED(s) |
| IP Rating | IP67 |
| NEMA Rating | 6P |
| Operating Temperature | -20°C to 70°C |
| Weight | 0.15 lbs |
Information About T30UIPAQ
The T30UIPAQ is part of Banner Engineering’s T30U Series ultrasonic sensors, developed for dependable performance in challenging industrial conditions. This sensor operates in diffuse sensing mode and is capable of detecting objects regardless of color, transparency, or surface finish. It supports both analog and discrete output configurations, allowing flexible integration into control and monitoring systems. Housed in a rugged IP67- and NEMA 6P-rated enclosure, it is designed for reliable operation in environments exposed to dust, moisture, and vibration.
Key Features:
- Ultrasonic Proximity Sensing: Enables non-contact detection independent of target color or material.
- Wide Measurement Range: Supports sensing distances from 150 mm up to 1000 mm.
- Analog and Discrete Outputs: Provides 4–20 mA analog output with discrete PNP switching capability.
- T30U Series Design: Built for industrial automation and proximity sensing applications.
- Rugged Environmental Protection: Rated IP67 and NEMA 6P for harsh industrial environments.
- M12 Quick-Disconnect Connector: Simplifies installation and maintenance with a secure connection.
- LED Status Indicators: Provides visual feedback for sensor operation and alignment.
The T30UIPAQ delivers the reliability and precision required for industrial ultrasonic proximity sensing and distance measurement applications.
