T7067B1006 | Honeywell Electronic Space Thermostat With Adjustable Deadband And Voltage Ramp Output
- Regular price
- $949.05
- Sale price
- $949.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T7067B1006
Description

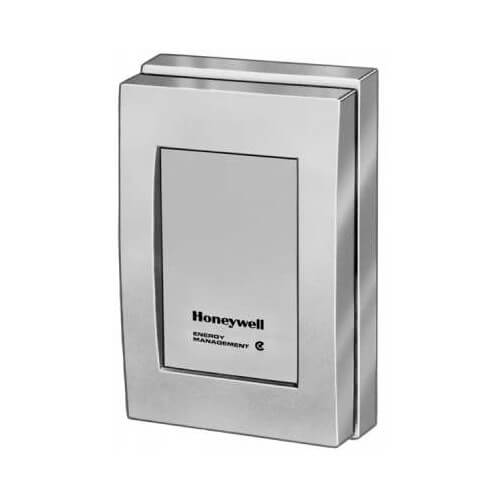

The Honeywell T7067B1006 is an electronic space thermostat designed to provide precise heating and cooling control in single-zone HVAC systems. It generates independent voltage ramp signals to interface directly with Honeywell W973 logic panels for stable temperature regulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | T7067B1006 |
| Subcategory | Thermostats |
| Product Series | T7067 |
| Control System | W973 Single Zone |
| Output Type | Voltage Ramp |
| Output Range | 1–16 VDC (Heating and Cooling) |
| Power Method | Supplied from W973 Panel |
| Supply Voltage | 20 VDC |
| Setpoint Temperature Range | 55°F to 85°F |
| Adjustable Deadband | 3°F to 30°F (2°C to 17°C) |
| Compatible Accessories | W973 Logic Panel, Q667 Subbase, C7046A Sensor |
| Indicators | Two Internal LEDs |
| Mounting | 2 x 4 in. Vertical Outlet Box or Flat Surface |
| Dimensions | 4 5/8 in H x 2 13/16 in W x 1 1/4 in D |
| Shipping Temperature Range | -40°F to +150°F |
| Weight | 0.4 lbs |
Information About T7067B1006
The T7067B1006 is part of the Honeywell T7067 Series, engineered as an electronic space thermostat for commercial HVAC control environments. It features a durable electronic transmitter design intended for use with remote temperature sensing and single-zone logic control architectures. The thermostat supports proportional control through independent heating and cooling voltage ramps, allowing accurate system response and stable room temperature regulation. Designed specifically for integration with W973 Single Zone Logic Panels, the unit also supports parallel operation to expand control across multiple zones when required.
Key Features
- Independent Heat And Cool Setpoints: Separate adjustable levers allow precise configuration of heating and cooling temperature demands.
- Wide Deadband Adjustment: Configurable deadband from 3°F to 30°F supports flexible comfort and energy management strategies.
- Voltage Ramp Control Output: Provides independent 1–16 VDC signals for proportional heating and cooling control via W973 panels.
- Multi-Panel Control Capability: One thermostat can control up to six W973 logic panels connected in parallel.
- Integrated System Checkout LEDs: Two internal LEDs support quick verification of system operation during setup and service.
- Temperature Anticipation Support: Compatible with the C7046A discharge air sensor to enhance control stability and response time.
- Flexible Mounting Design: Supports installation on standard 2 x 4 inch outlet boxes or non-conductive flat surfaces.
The T7067B1006 delivers the reliability and precision required for accurate single-zone HVAC temperature control systems.
