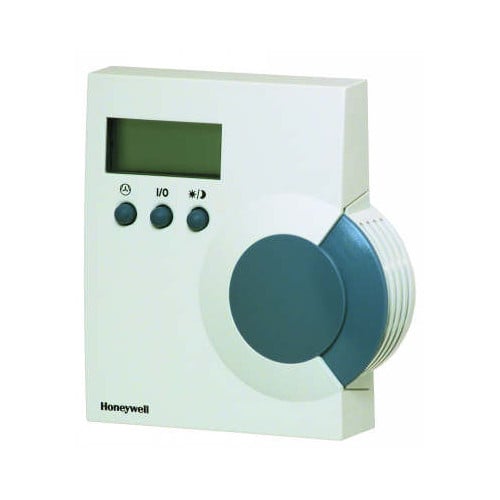

T7560A-1018 | Honeywell Digital Wall Temperature Sensor with LCD and Setpoint Wheel
- Regular price
- $489.00
- Sale price
- $489.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: T7560A-1018
Description
The Honeywell T7560A-1018 is a digital wall-mounted temperature sensor module with an integrated LCD display designed for HVAC control systems. It uses a 20 kΩ NTC sensing element to provide accurate temperature measurements and setpoint adjustments for connected controllers. Suitable for commercial and industrial environments, it enables local monitoring and user interaction within building automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Switches |
| Part Number | T7560A-1018 |
| Subcategory | Temperature Sensor |
| Sensor Type | 20 kΩ NTC thermistor |
| Display Type | LCD |
| Setpoint Adjustment Range | +55°F to +85°F (+13°C to +29°C) |
| Operating Temperature Range | +32°F to +104°F (0°C to +40°C) |
| Operating Humidity Range | 5–90% RH, non-condensing |
| Power Supply | From controller interface |
| Compatibility | Honeywell XL10 controllers |
| Mounting Type | Surface wall mount |
| Dimensions (H × W × D) | 85 × 85 × 29 mm (3.35 × 3.35 × 1.14 in) |
| Housing Material | Flame-retardant plastic |
| Approvals | CE compliant |
| Weight | 0.30 lbs (0.14 kg) |
Information About T7560A-1018
The T7560A-1018 is part of Honeywell’s T7560 series of electronic wall modules, engineered for integration with XL10 family controllers in HVAC applications. It features a robust plastic housing, user-friendly interface, and dedicated setpoint wheel for precise occupant control. This model includes an occupied/unoccupied override function and fan status indication on the LCD screen for enhanced system feedback. Designed for surface wall mounting, it connects directly to the controller via screw terminals without requiring a separate power supply.
Key Features:
- LCD Display: Shows temperature, setpoint, and fan status in real time for easy monitoring.
- 20 kΩ NTC Sensor: Provides accurate and stable temperature readings for HVAC control.
- Setpoint Wheel: Allows manual adjustment of desired temperature within a defined range.
- Override Button: Enables temporary change between occupied and unoccupied modes.
- Compact Housing: Flame-retardant plastic construction in a low-profile wall-mount design.
- Direct Controller Interface: Powered and read via connected XL10 controller, no battery needed.
- Environmental Tolerance: Operates in a wide temperature and humidity range for versatile applications.
The T7560A-1018 delivers the reliability and precision required for building automation temperature control.
