Product Description P/N: T775M2022
Description

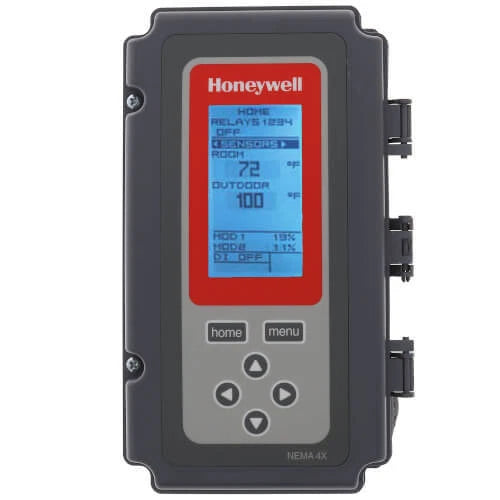

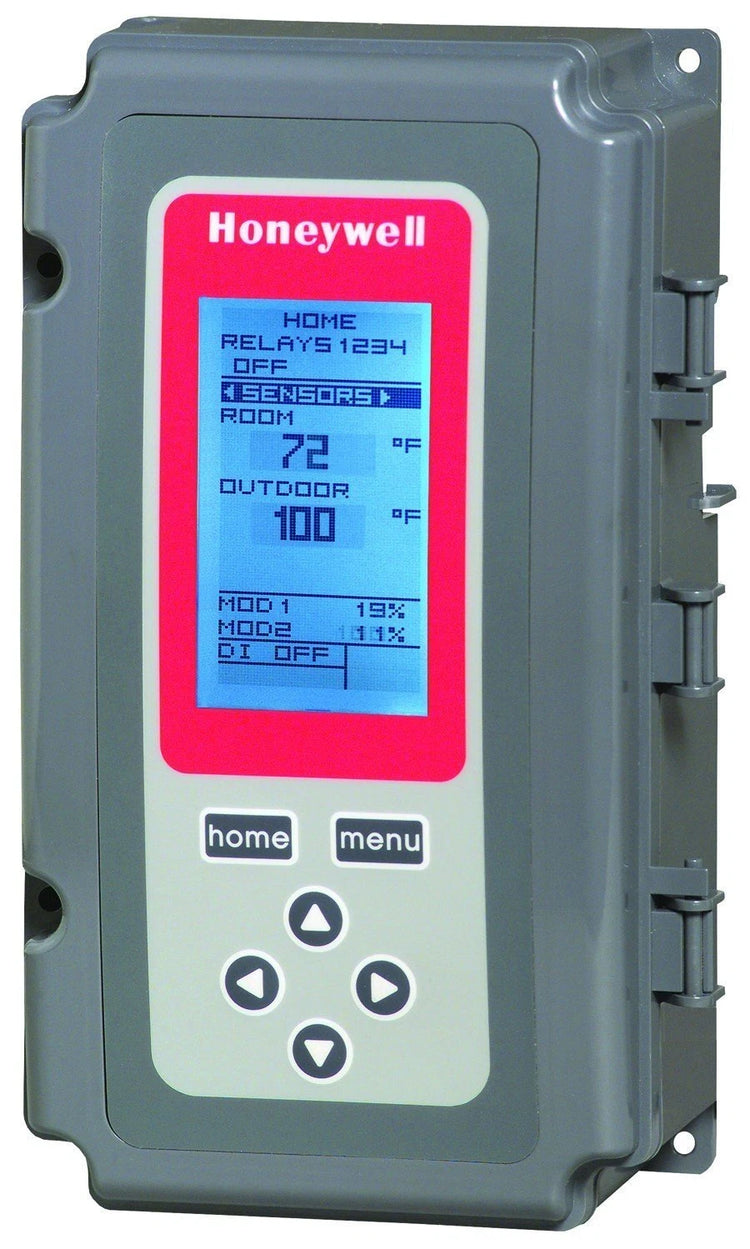

The Honeywell T775M2022 is a standalone, remote temperature controller from the T775 Series 2000—engineered for commercial and agricultural applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | T775M2022 |
| Subcategory | Temperature/Process Control |
| Type | Modulating – NEMA 4X Enclosure |
| Setpoint Temperature Range | –40 °F to 248 °F |
| Operating Ambient Temperature Range | –40 °F to 140 °F @ 60 Hz |
| Accuracy | ±1 °F at 77 °F |
| Differential Temperature Range | 1 °F to 150 °F |
| Sensor Inputs | 2 |
| Sensor Element Type | 1097 ohm PTC at 77 °F (25 °C) |
| Max Distance to Sensor | Up to 1,000 ft |
| Relay Outputs | 2 SPDT (expandable to 8 relays with T775Ss) |
| Analog Outputs | 2 |
| Analog Output Type | Electronic Series 90 |
| Voltage | 24 VAC or 120/240 VAC |
| Frequency | 50/60 Hz |
| Relay Contact Ratings (24 VAC) | 10 A resistive |
| Relay Contact Ratings (120 VAC) | ½ HP; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty |
| Relay Contact Ratings (240 VAC) | ½ HP; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty |
| Height | 8 5/32 in. |
| Width | 4 13/32 in. |
| Depth | 2 15/16 in. |
| Weight | 1.82 lbs |
Information About T775M2022
The Honeywell T775M2022 is a modulating temperature controller from the T775 Series 2000, designed for demanding commercial, agricultural, and industrial applications requiring precise electronic control and remote temperature sensing. Housed in a rugged NEMA 4X enclosure, it features two sensor inputs, dual SPDT relays, and dual analog outputs—making it ideal for systems where both on/off and proportional control are needed. With built-in scheduling, user-friendly programming, and flexible output configurations, it provides reliable performance in a wide range of temperature control environments.
Key Features:
- Dual Sensor Input & Remote Sensing: Supports two independent temperature inputs with the ability to sense remotely up to 1,000 feet—ideal for tank, loop, or duct applications where localized control is impractical.
- Multi-Output Flexibility: Includes two SPDT relay outputs and two analog outputs (0–10 VDC, 2–10 VDC, 4–20 mA, or Series 90), allowing simultaneous control of heating/cooling equipment and proportional devices.
- Wide Operating Range & Accuracy: Supports setpoint temperatures from –40°F to 248°F, with ±1°F accuracy at 77°F and adjustable differential settings from 1°F to 150°F for precision tuning.
- Rugged NEMA 4X Enclosure: Built to withstand harsh environments such as washdown areas or dusty installations, the T775M2022 is IP-rated for durability in both indoor and outdoor conditions.
- Built-In Scheduler & Digital Input: Features a 7-day programmable clock for automatic setback or shutdown control and includes a digital input for external override or remote disable.
- Installer-Friendly Interface: The backlit LCD screen with a six-button keypad offers simple navigation through menu-driven setup, sensor calibration, and output configuration. Lockout options ensure tamper-resistant operation.
- Advanced Control Logic: Utilizes proportional-integral-derivative (PID) or proportional-integral (PI) logic with anti-windup protection and adjustable on/off delays to reduce cycling and improve system longevity.
The T775M2022 provides reliable, configurable control in environments that demand both accuracy and flexibility. Whether used in boiler rooms, greenhouse systems, or process loops, its combination of dual outputs, remote sensing, scheduling, and rugged design makes it a trusted solution for maintaining optimal temperature control across a wide variety of applications.
