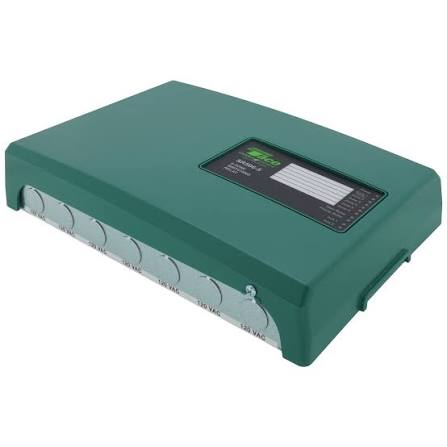

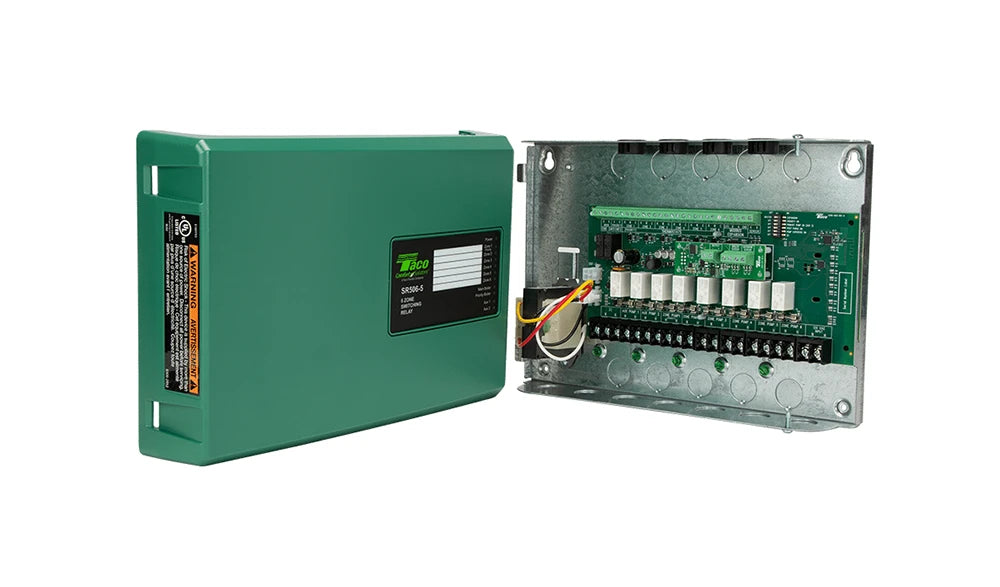

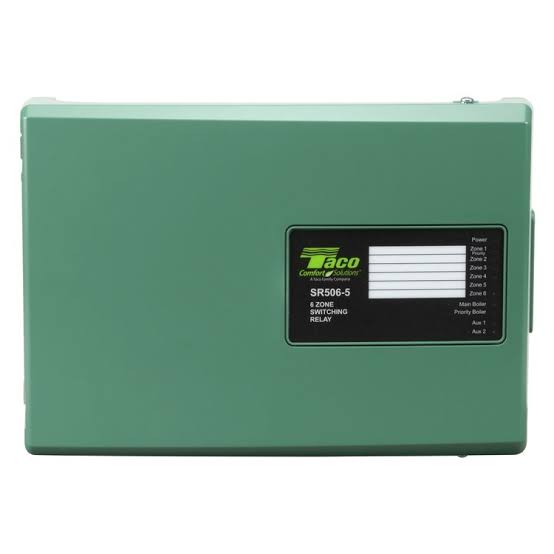

Taco SR506-5 6-Zone Hydronic Switching Relay Circulator Control
- Regular price
- $535.00
- Sale price
- $535.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SR506-5
Description
The Taco SR506-5 is a reliable six-zone switching relay designed to regulate circulator pumps in modern hydronic heating systems. Operating on a 120V electrical supply, this module organizes thermostat signals to ensure precise thermal delivery to designated building areas. It is engineered to simplify control wiring while providing robust electrical isolation for boiler hardware.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Taco |
| Category | HVAC & Refrigeration |
| Part Number | SR506-5 |
| Subcategory | Switching Relays |
| Input Voltage | 120V AC |
| Zone Capacity | 6 Zones |
| Maximum Pump Load | 1/3 HP (5 Amps) per zone |
| DHW Priority | Selectable Switch |
| Enclosure Design | NEMA 1 |
| Thermostat Compatibility | 24V Mechanical & Digital |
| Weight | 4.00 lbs |
Information About SR506-5

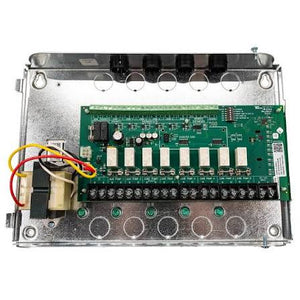

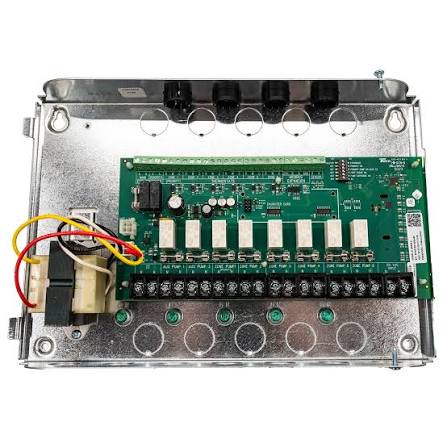

The SR506-5 is a dedicated control module built to streamline the operation of multiple heating circulators safely. It features heavy-duty printed circuit board layouts that provide ample space for clean, organized field wiring. Designed for immediate integration into residential HVAC setups, it includes a selectable priority switch to manage domestic hot water generation effortlessly. This relay incorporates advanced diagnostic LEDs that communicate power status and zone activation instantly to maintenance personnel.
Key Features:
-
Six-Circulator Management: Efficiently routes electrical power to up to six independent heating pumps.
-
Selectable Priority Switching: Ensures rapid domestic water heating by temporarily halting space heating zones.
-
Advanced LED Diagnostics: Offers clear visual feedback to verify thermostat calls and active pump relays.
-
Heavy-Duty PC Board: Provides durable, spacious terminal blocks for secure and organized field wiring.
-
Universal Thermostat Compatibility: Works seamlessly with traditional mechanical and modern digital thermostats.
-
Built-In Boiler Protection: Utilizes an isolated end switch to safely trigger the main boiler sequence.
The SR506-5 delivers the reliability and precision required for organized, multi-zone circulator pump management.
