TBEN-L5-16DXP | Turck Industrial Ethernet Digital Output I/O Module
- Regular price
- $749.00
- Sale price
- $749.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TBEN-L5-16DXP
Description

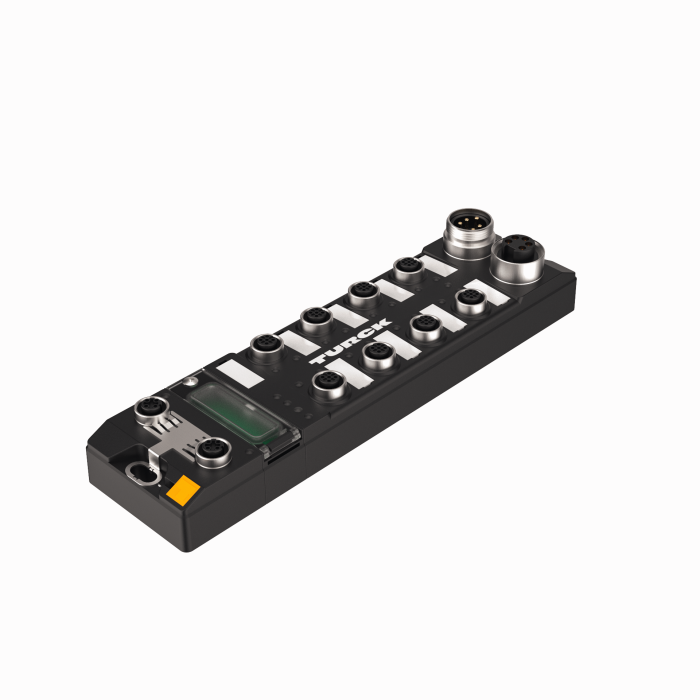

The Turck TBEN-L5-16DXP is a rugged industrial Ethernet I/O module designed for decentralized digital output control in automation systems. It provides sixteen high-current PNP digital outputs in a compact, field-mountable housing for direct machine-level installation. This module is used to reliably control actuators and loads in harsh industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Turck |
| Category | Industrial Network Interfaces |
| Part Number | TBEN-L5-16DXP |
| Subcategory | Digital Output Ethernet I/O Module |
| Number of Digital Outputs | 16 |
| Output Type | PNP |
| Rated Output Current | Up to 0.5 A per channel |
| Short-Circuit Protection | Yes |
| Network Protocols | PROFINET, EtherNet/IP, Modbus TCP |
| Ethernet Speed | 10/100 Mbps |
| Ethernet Ports | 2 × M8, 4-pin, D-coded |
| Supply Voltage | 24 V DC (18–30 V DC) |
| Protection Class | IP65 / IP67 / IP69K |
| Operating Temperature | −40 °C to +70 °C |
| Housing Material | Glass-fiber reinforced plastic |
| Mounting Type | Field-mount, surface installation |
Information About TBEN-L5-16DXP
The TBEN-L5-16DXP is part of Turck’s TBEN-L series of multiprotocol Ethernet I/O modules developed for distributed automation architectures. It features a fully encapsulated, glass-fiber reinforced housing with high ingress protection for operation in demanding field conditions. The module supports common industrial Ethernet protocols and automatically adapts to the connected control network. Designed for decentralized installation, it reduces control cabinet wiring while providing robust digital output performance for field devices.
Key Features:
- Sixteen Digital Outputs: Provides high-density control of actuators and loads using PNP outputs.
- High-Current Output Capability: Supports direct connection of industrial loads without additional relays.
- Multiprotocol Ethernet Support: Compatible with PROFINET, EtherNet/IP, and Modbus TCP networks.
- Rugged Field Housing: Fully potted design with high ingress protection for harsh environments.
- Decentralized Installation: Enables machine-level mounting to minimize wiring and installation effort.
- Integrated Ethernet Switch: Simplifies network topology and reduces external components.
- Fast Switching Performance: Ensures precise and responsive control of connected devices.
The TBEN-L5-16DXP delivers the reliability and precision required for dependable digital output control in distributed industrial automation systems.
