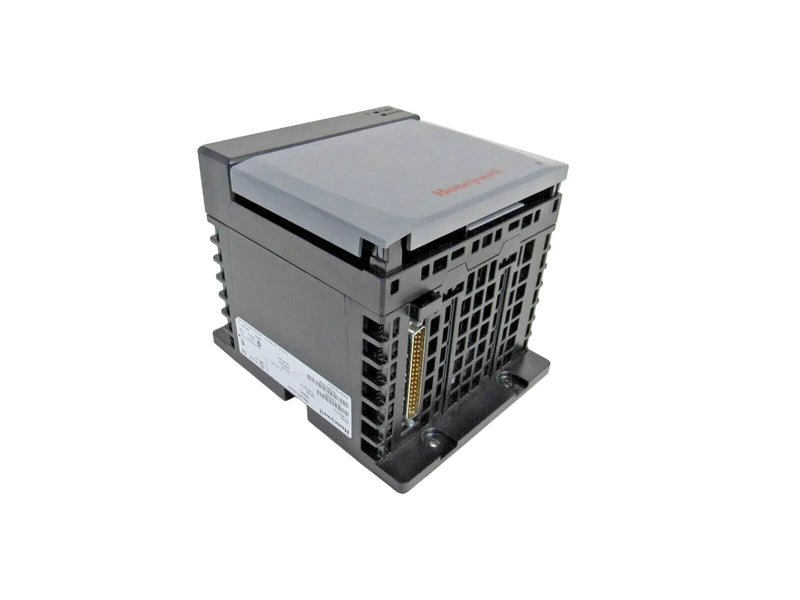

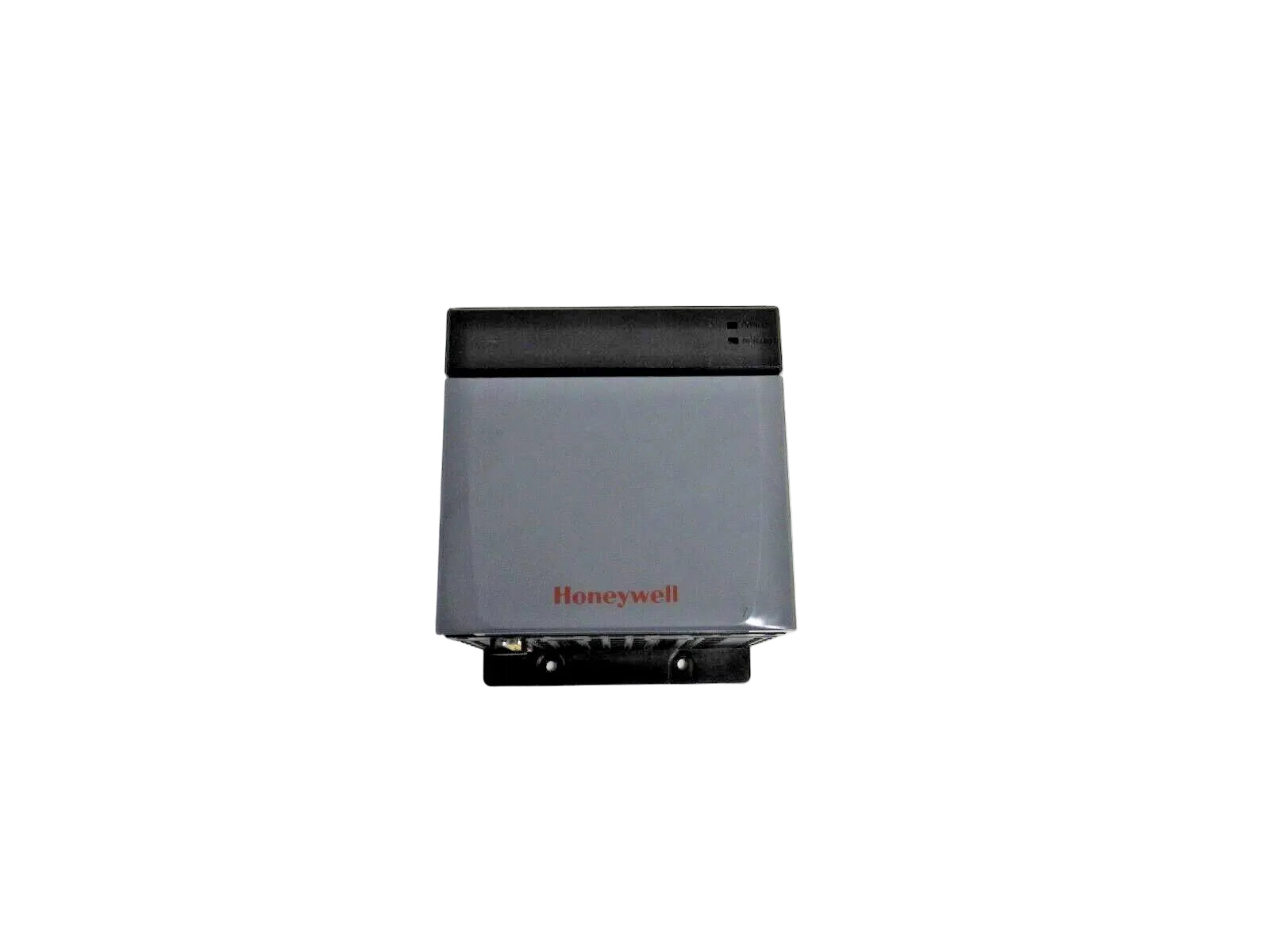

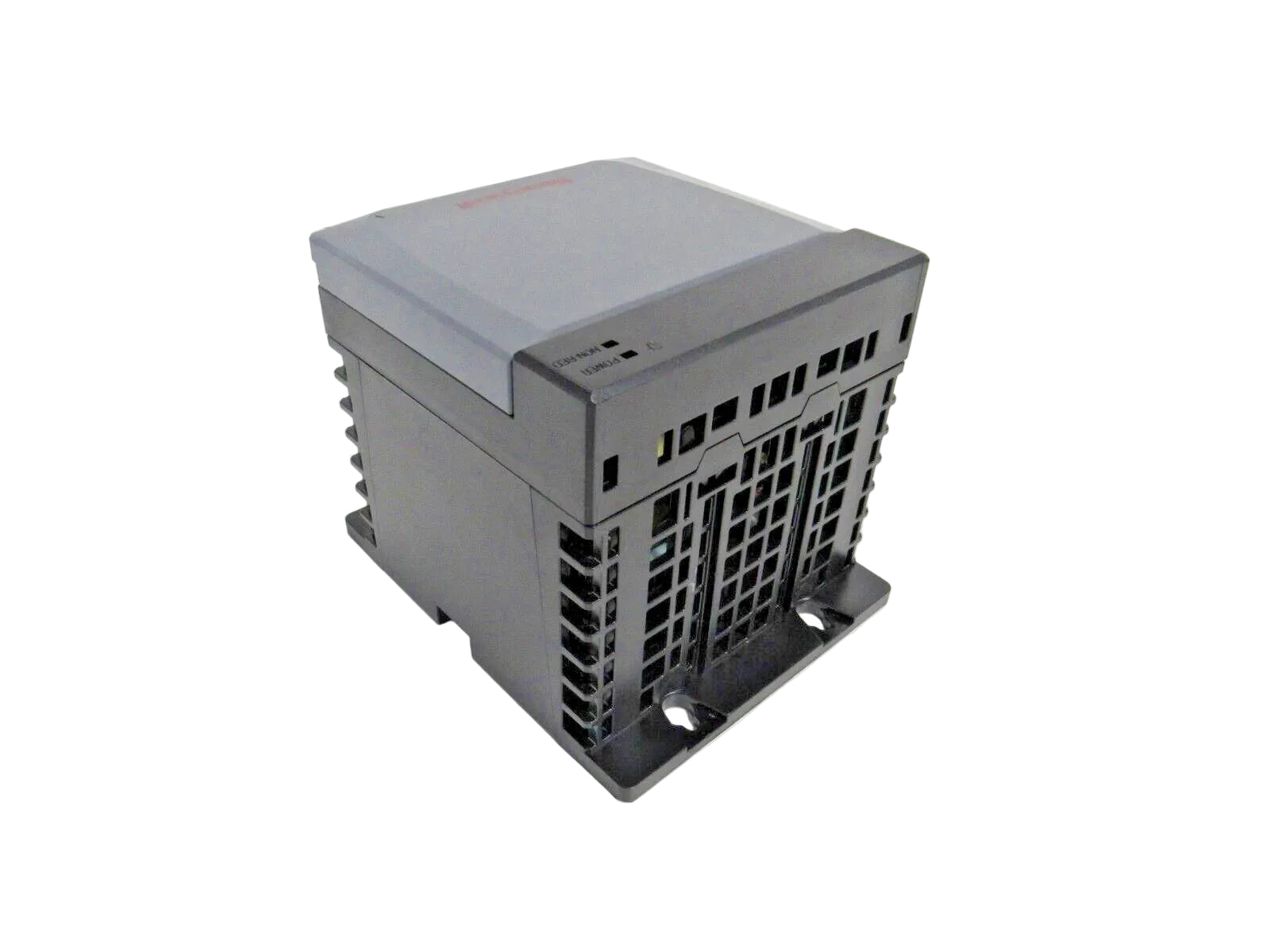

TC-RPCXX1 | Honeywell Experion PKS Redundant Power Supply Module
- Regular price
- $806.55
- Sale price
- $806.55
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TC-RPCXX1
Description
The Honeywell TC-RPCXX1 is a redundant power supply module designed to ensure continuous power delivery for Experion PKS control systems. It supports both AC and DC input sources and provides stable backplane power for Honeywell C200 controllers and associated I/O chassis.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Industrial Power Supplies |
| Part Number | TC-RPCXX1 |
| Subcategory | Redundant Power Supply Modules |
| Product Type | Redundant power supply module |
| Input Voltage Range | 85–265 VAC / 16–32 VDC |
| Input Power | 110 VA / 110 W (estimated) |
| Frequency Range | 47–63 Hz (AC) |
| Maximum Inrush Current | 20 A (AC), 30 A (DC) |
| Total Power Output | 75 W @ 60 °C |
| Backplane Output Current | 1.5 A @ 1.2 V, 4 A @ 3.3 V, 13 A @ 5.1 V, 2.8 A @ 24 V |
| Annunciation Output | Solid-state relay, 120 VAC/DC, 100 mA max |
| Status Indication | LED indicators for power and fault |
| Compatibility | Honeywell C200 controllers and I/O chassis |
| Dimensions | 14.4 × 13.7 × 17.5 cm |
| Weight | 1.12 kg |
Information About TC-RPCXX1
The TC-RPCXX1 is part of the Honeywell Experion PKS hardware platform and functions as a redundant power supply module for mission-critical control applications. It is designed to accept a wide range of AC or DC input voltages, ensuring flexible integration into industrial power infrastructures. The module distributes regulated power to multiple voltage rails on the system backplane, supporting controllers and I/O modules simultaneously. Integrated LED indicators and annunciation outputs provide clear status and fault monitoring for maintenance and diagnostics.
Key Features
- Redundant Power Supply Design: Supports high-availability Experion PKS systems by maintaining power continuity during supply interruptions.
- Wide Input Voltage Support: Accepts both 120/240 VAC and 16–32 VDC input sources for flexible deployment.
- Multi-Rail Backplane Outputs: Supplies regulated voltage levels required by C200 controllers and I/O chassis components.
- High Power Capacity: Delivers up to 75 W of total output power at elevated operating temperatures.
- Integrated Status Monitoring: LED indicators provide immediate visual feedback for power and fault conditions.
- System Annunciation Output: Includes a solid-state relay output for remote alarm or status signaling.
- Seamless System Integration: Includes chassis adapter support for direct installation into Experion PKS racks.
The TC-RPCXX1 delivers the reliability and precision required for redundant power distribution in Honeywell Experion PKS control systems.
