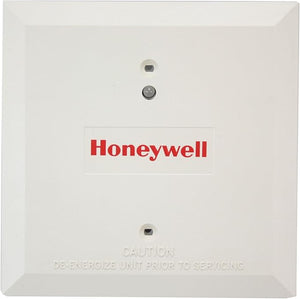

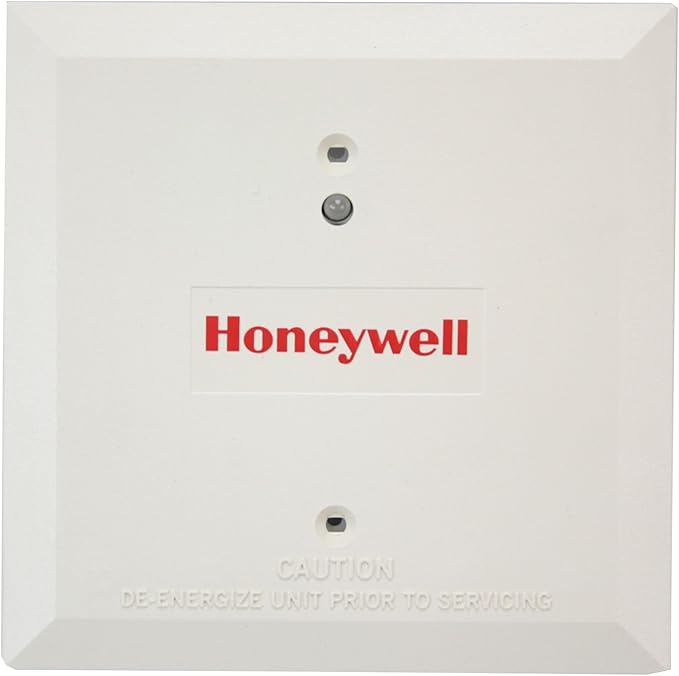

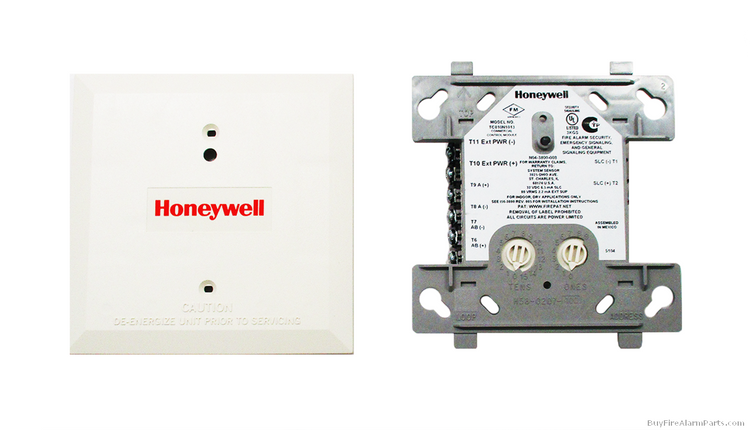

TC810N1013 | Honeywell Addressable Control Module 15–32 VDC
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TC810N1013
Description
The Honeywell TC810N1013 is an addressable control module that provides a dedicated circuit for notification appliances in intelligent fire alarm systems. It enables precise activation of horns, strobes, speakers, and other devices based on programmed zones or manual commands.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm Components |
| Part Number | TC810N1013 |
| Subcategory | Addressable Control Module |
| Function | Provides circuit for notification appliances |
| Supported Devices | Horns, strobes, speakers, etc. |
| Operating Voltage | 15–32 VDC |
| Max Current Draw | 6.5 mA (LED on) |
| Average Operating Current | 350 μA direct poll, 375 μA group poll, 485 μA max |
| Max NAC Line Loss | 4 VDC |
| External Supply Voltage | Regulated 24 VDC; Speakers: 70.7 V RMS, 50 W |
| Drain on External Supply | 1.7 mA (24 VDC), 2.2 mA (80 VRMS) |
| Max NAC Current Rating | 3 A (Class B), 2 A (Class A) |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10% to 93% non-condensing |
| Dimensions | 4.5" H × 4" W × 1.25" D |
| Mounting | 4" square × 2.125" deep box |
| Weight | 0.26 lbs |
Information About TC810N1013
The TC810N1013 is part of Honeywell’s intelligent fire alarm accessory line, designed for integration with Honeywell fire alarm control panels. It supports a normal operating voltage of 15–32 VDC and provides addressability, allowing activation on a zone-by-zone or area-specific basis. This module is engineered for efficient power management, with low average operating current and the ability to drive notification appliances through regulated 24 VDC or speaker circuit outputs. Its compact form factor, broad temperature range, and high humidity tolerance make it suitable for varied building environments, including commercial, industrial, and institutional applications.
Key Features:
-
Addressable operation: Allows control of notification appliances by specific zones or coverage areas through panel programming.
-
Versatile appliance support: Drives horns, strobes, speakers, and similar notification devices in fire alarm systems.
-
Wide voltage compatibility: Operates from 15 to 32 VDC for flexible system integration.
-
Low power consumption: Average operating current as low as 350 μA in direct poll mode, minimizing load on system power.
-
External supply capability: Accepts regulated 24 VDC or speaker output for driving connected appliances.
-
High NAC current rating: Supports up to 3 A for Class B wiring systems and 2 A for Class A wiring systems.
-
Environmental durability: Operates from 32°F to 120°F with 10–93% non-condensing humidity tolerance.
-
Compact installation footprint: Measures 4.5" × 4" × 1.25" and fits a 4" square × 2.125" deep box.
The TC810N1013 delivers the reliability and addressable control precision required for modern intelligent fire alarm systems in commercial and institutional settings.
