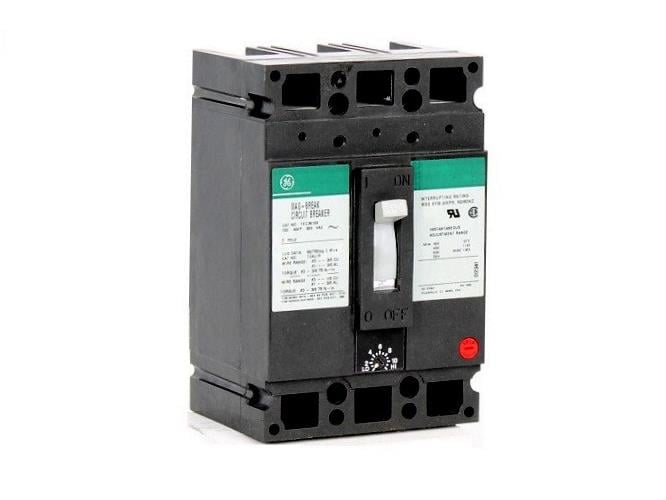

TEC36100 | General Electric Mag-Break TEC 3-Pole 100A 600V Molded Case Circuit Breaker
- Regular price
- $4,179.00
- Sale price
- $4,179.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TEC36100
DescriptionΒ
The General Electric TEC36100 is a Mag-Break molded case circuit breaker designed for short-circuit protection in three-phase industrial power systems. It is rated for 600V and 100A and uses magnetic-only instantaneous tripping for fast fault interruption.
Β
Technical SpecificationsΒ
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | TEC36100 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Mag-Break |
| Type | TEC |
| Voltage Rating | 600 V |
| Current Rating | 100 A |
| Poles | 3 |
| Phase | 3 |
| Protection Type | Magnetic Only |
| Trip Function | I β Instantaneous |
| Connection Type | Feed-Thru |
| Interrupting Rating (AIC) | 10 kA @ 480 V |
| Reverse Feed Suitable | Yes |
| Standards Compliance | UL Listed |
Β
Β
Information About TEC36100
The TEC36100 is a molded case circuit breaker from General Electricβs Mag-Break family engineered for applications requiring fast-acting short-circuit protection. It is built with a three-pole configuration to support three-phase electrical systems operating up to 600 volts. The breaker uses magnetic-only protection with an instantaneous trip response, making it suitable for motor circuit and feeder protection where overload protection is provided elsewhere. Its feed-thru design allows flexible installation, including reverse-fed configurations, in industrial distribution panels.
Key Features
- Mag-Break Protection Technology: Designed for instantaneous magnetic tripping to rapidly clear short-circuit faults.
- Three-Pole Configuration: Supports balanced protection in three-phase electrical systems.
- 600V Operating Capability: Suitable for high-voltage industrial power distribution applications.
- Feed-Thru Connection Design: Enables flexible wiring arrangements and reverse-fed installations.
- Instantaneous Trip Function: Provides fast response to high fault currents without thermal delay.
- Industrial Interrupting Rating: Rated at 10 kA at 480 V for reliable fault interruption.
- UL Listed Construction: Meets recognized safety and performance standards for molded case circuit breakers.
The TEC36100 delivers the reliability and precision required for fast-acting short-circuit protection in demanding industrial power distribution systems.
