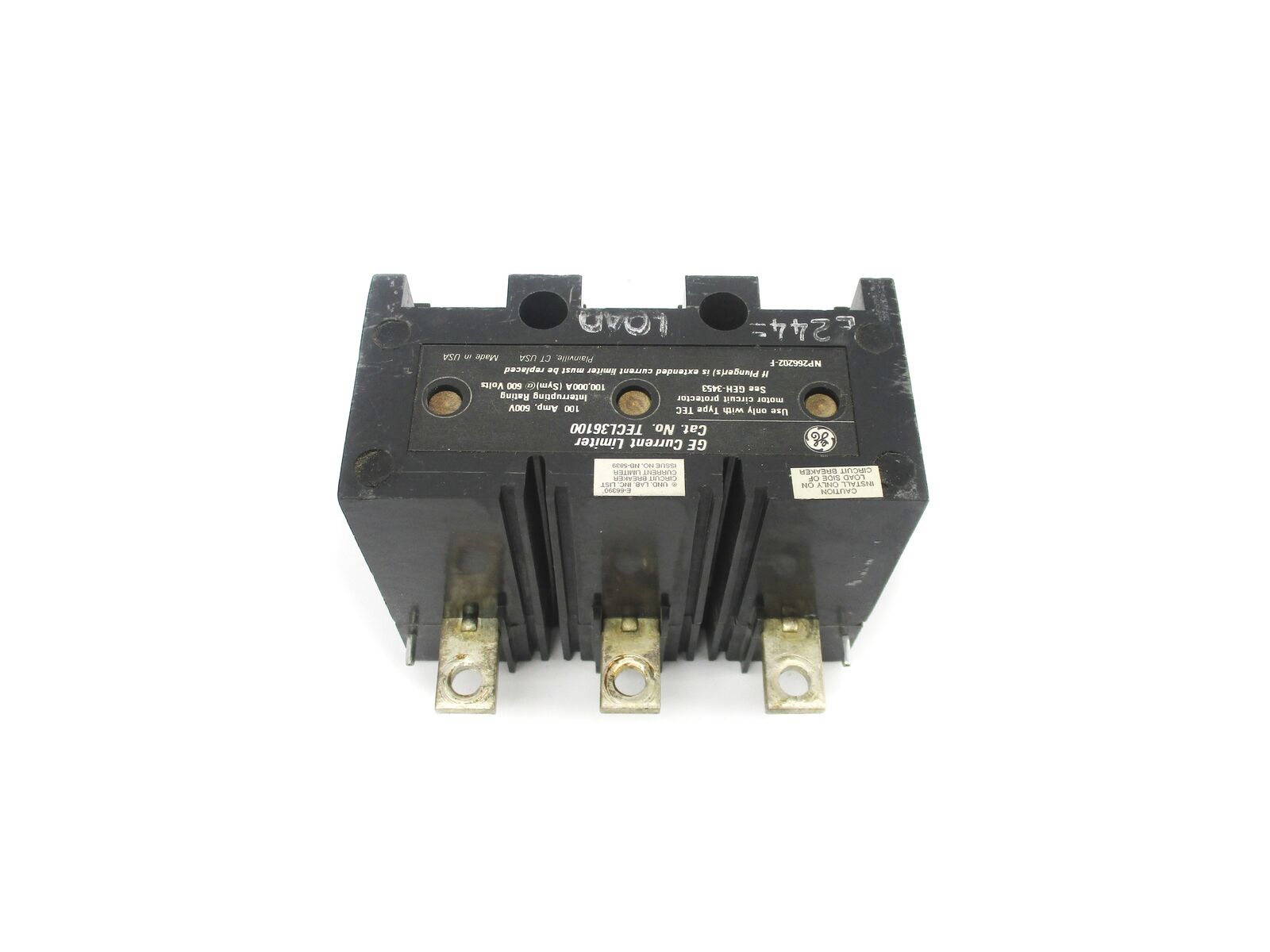

TECL36100 | GE 100A TECL Molded Case Motor Circuit Protector, 3-Pole, 600 VAC
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TECL36100
Description
The GE TECL36100 is a molded case motor circuit protector designed to provide current-limiting protection for three-phase systems up to 600 VAC. Rated at 100 amps, it features an adjustable magnetic trip for precise short-circuit response. The TECL36100 offers a non-interchangeable design suitable for industrial applications requiring reliable motor circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Motor Circuit Protector |
| Part Number | TECL36100 |
| Subcategory | Molded Case Circuit Breakers |
| Amperage Rating | 100 A |
| Number of Poles | 3 |
| Phase | 3-Phase |
| Voltage Rating | 120–600 VAC |
| Interrupt Rating | 100 kA at 480 VAC |
| Frequency Rating | 50/60 Hz |
| Trip Type | Adjustable Magnetic, Non-Interchangeable |
| Type | Type TECL Molded Case, Standard Capacity |
| Connection Type | Feed-Through |
| Application | Motor circuit protection |
| Breaker Style | Molded case, current-limiting |
| Certifications | UL Component Recognized |
Information About TECL36100
The TECL36100 is a Type TECL molded case motor circuit protector engineered for use in GE current-limiting Mag-Break protection systems. It features a three-pole configuration and supports adjustable magnetic trip settings, allowing technicians to tailor instantaneous protection thresholds. The device is compatible with three-phase installations operating between 120 and 600 VAC, using a feed-through connection layout for straightforward integration. Typical applications include motor branch circuit protection where high interrupting capacity, UL component recognition, and reliable current-limiting performance are required.
Key Features
- 100A motor circuit protection: Provides dependable protection for motor branch circuits.
- Adjustable magnetic trip: Allows precise tuning of instantaneous trip levels.
- Three-pole configuration: Supports protection of three-phase power systems.
- High interrupting capacity: Rated at 100 kA at 480 VAC for demanding environments.
- Current-limiting Mag-Break design: Enhances short-circuit response and equipment protection.
- Feed-through connections: Simplifies installation into standard panel layouts.
- Non-interchangeable trip unit: Ensures calibrated and secure protection performance.
- Wide voltage compatibility: Operates from 120 to 600 VAC, suitable for diverse installations.
The TECL36100 delivers the reliability and precision required for high-performance motor circuit protection in industrial electrical systems.
