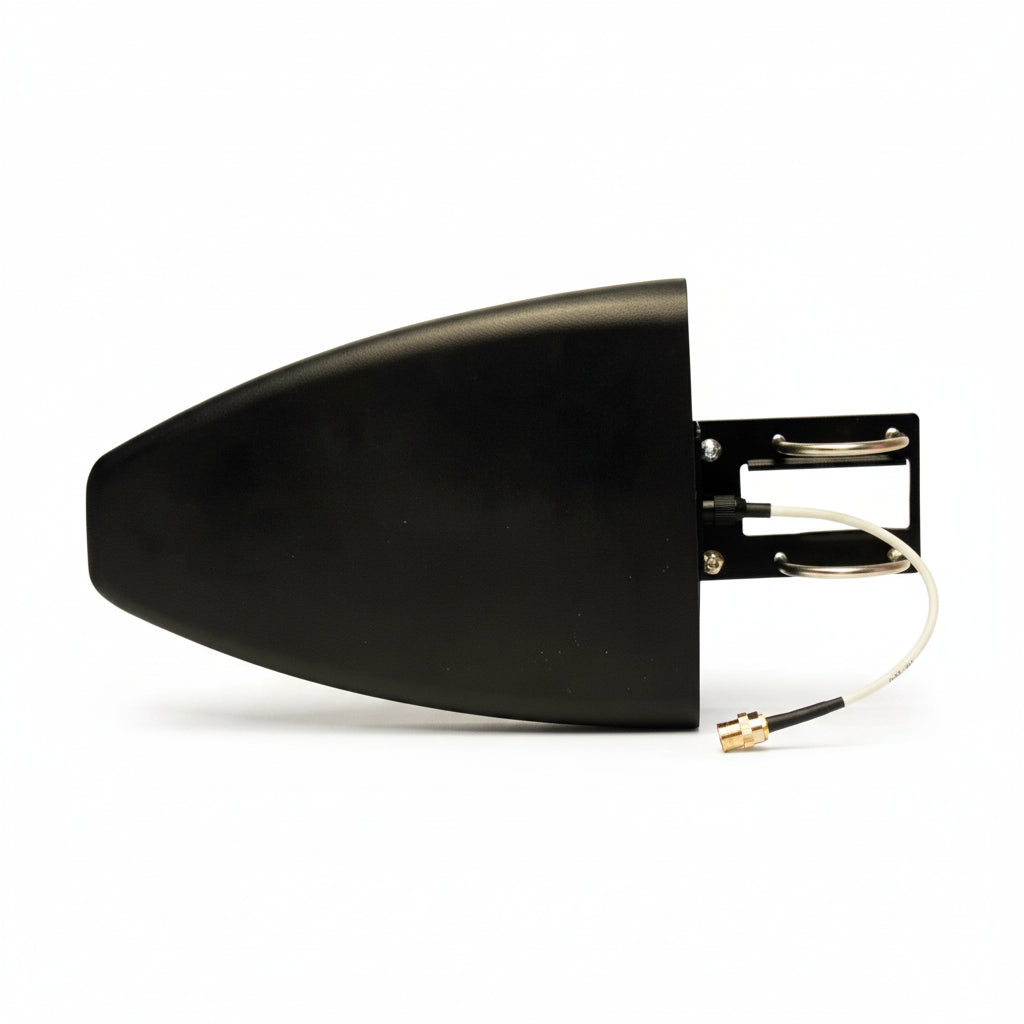

Telguard HGDL-0 High-Gain Wideband Directional Cellular LTE Antenna
- Regular price
- $275.00
- Sale price
- $275.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HGDL-0
Description
The Telguard HGDL-0 is a high-gain, wideband directional antenna designed to improve cellular signal reception for compatible Telguard alarm communicators. Its directional design focuses wireless reception toward a cellular tower, making it suitable for indoor or outdoor installations where signal strength may be limited. The antenna operates across a broad frequency range and includes mounting hardware for pole installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Telguard |
| Category | Fire Alarm Systems |
| Part Number | HGDL-0 |
| Subcategory | Cellular Antennas |
| Product Type | High-gain wideband directional antenna |
| Application | Cellular alarm communication |
| Network Compatibility | LTE, 3G, and 4G |
| Frequency Range | 690–2700 MHz |
| Antenna Gain | 8–10 dBi |
| Radiation Pattern | Directional |
| Beamwidth | Horizontal 70° / Vertical 70° |
| Impedance | 50 ohms |
| Maximum Input Power | 100 watts |
| VSWR | Less than 1.5:1 |
| Polarization | Vertical |
| Front-to-Back Ratio | Greater than 20 dB |
| Connector | Type-N female with TNC adapter |
| Dimensions | 11.575 × 8 × 2.375 inches |
| Mounting | U-bolts for poles up to 1.75 inches |
| Wind Rating | Greater than 110 MPH |
| Enclosure Finish | Black UV-stable exterior |
| Cable | 8-inch DA195 |
| Weight | 1.365 lbs |
Information About HGDL-0
The HGDL-0 is part of Telguard’s cellular communication accessory range and supports LTE, 3G, and 4G network applications. Its self-contained construction eliminates the need for an external ground plane, simplifying installation in different mounting environments. The antenna features a black, UV-stable enclosure and is designed for use with compatible Telguard TG-4 and TG-7 series communicators. Connection to supported communicators is made through a compatible antenna cable and adapter, depending on the equipment configuration.
Key Features:
- Directional Design: Focuses cellular reception toward a selected signal source to improve communication performance.
- Wideband Operation: Supports a frequency range of 690–2700 MHz for multiple cellular network applications.
- High Gain: Provides a typical antenna gain of 8–10 dBi.
- Ground Plane Independence: Uses a self-contained design that does not require an external ground plane.
- Indoor and Outdoor Use: Features a mechanically robust enclosure suitable for different installation environments.
- Weather-Resistant Finish: Includes a black UV-stable exterior designed for outdoor exposure.
- Pole Mounting: Includes U-bolts suitable for mounting on poles up to 1.75 inches in diameter.
- Communicator Compatibility: Designed for use with compatible Telguard TG-4 and TG-7 series cellular communicators.
The HGDL-0 delivers the reliability and precision required for cellular alarm communication installations requiring improved directional signal reception.
